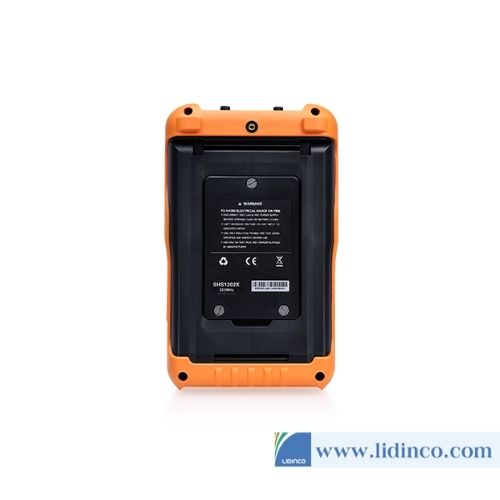

Handheld Oscilloscope Siglent SHS1202X 200Mhz 2 CH
Hotline: +84 906 988 447
Head Office: Ho Chi Minh City
- Tel: +84 2839 778 269 / 3601 6797
- Email: sales@lidinco.com
- Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam
Office: Bac Ninh City
- Tel: +84 222 730 0180
- Email: bn@lidinco.com
- Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam
-
Technical Counseling
100% Free
-
Free Shipping
For 3.000.000vnd Order
Specification
Bandwidth: 200 MHz
Number of channels: 2 isolated channels
True sampling rate: 1GSa/s
Memory depth: 12 Mpts
Vertical resolution: 8 bit
Vertical Sensitivity: 5 mV/div–100 V/div
Time base: 1.0 ns/div-100 s/div
DC voltage: 60mV | ±1%±15 digits
600 mV-600 V | ±1%±5 digits
AC voltage: 60mV – 750V | ±1.5%±15 digits
DC current: 60 mA-600 mA | ±1.5%±5 digits
6 A-10 A | ±2%±5 digits
AC current: 60mA | ±1.5%±5 digits
600 mA | ±2%±5 digits
6 A-10 A | ±3%±5 digits
Capacitance: 40 nF | ±3%±10 digits
400 nF-400 μF | ±4%±5 digits
Resistance: 600 Ω-6 MΩ | ±1%±5 digits
60 M | ±3%±5 digits
Open circuit: <50
Diodes: 0 – 2V
Weight: 1.75kg
Dimensions: 276 mm * 168 mm * 68 mm
Decription SHS1102X 100Mhz 2 CH

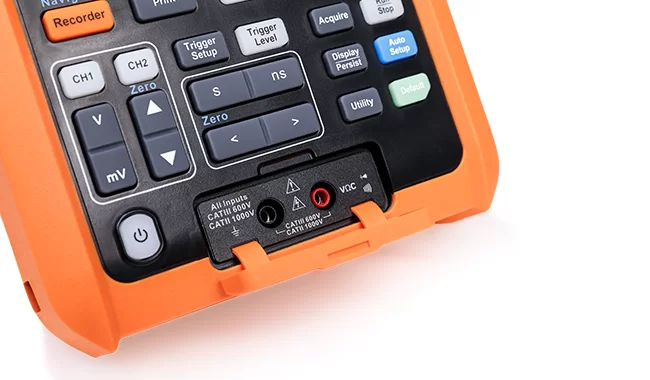

Full Isolation IEC61010-2-030 defines measurement categories that rate the ability of measuring instruments to withstand short-term transient overvoltages outside the operating voltage. For SHS1000X series, the max voltage input to the analog scope inputs is CATIII 600 Vrms, CATII 1000 Vrms, and the max input for the multimeter is CATIII 600 Vrms, CATII 1000 Vrms. SHS1000X series features full isolation between the two oscilloscope channels, one multimeter channel, power adapter and the USB host/device port. The full isolation makes it ideal for both laboratory and floating signal measurement because it reduces the risk of accidental short circuits. |  |
 | Standard Serial trigger and decode Standard Serial trigger and decode: IIC, SPI, UART, CAN, LIN, widely used in automotive and embedded industries. Because of its unique portable design and battery power supply, it can better meet the testing needs of the automotive and embedded industries that require on-site decoding. |

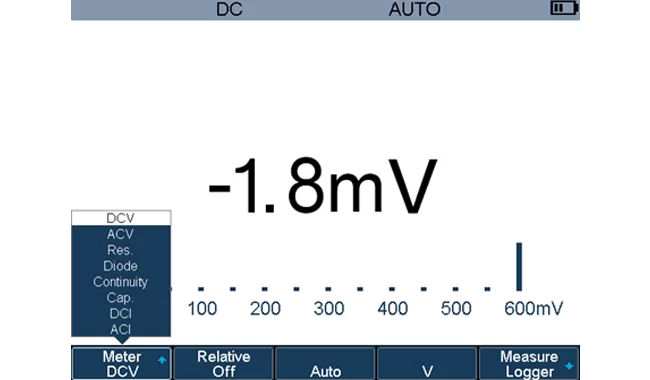

Hardware-based True RMS multimeter Integrated 6000 count (~ 3.5 digit) digital multimeter Hardware-Based True RMS Measurement Features up to 4-channel measurement value trend graphing that can store 3.5 M measurement points |  |
Accessories
– Two Passive Probes
– Multimeter pen
– USB data cable
– DC adapter
– Power cord
