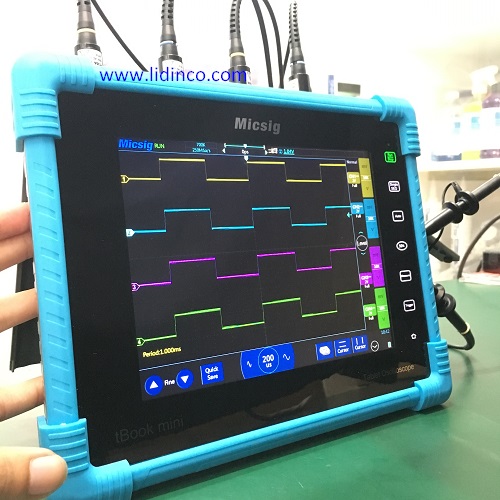

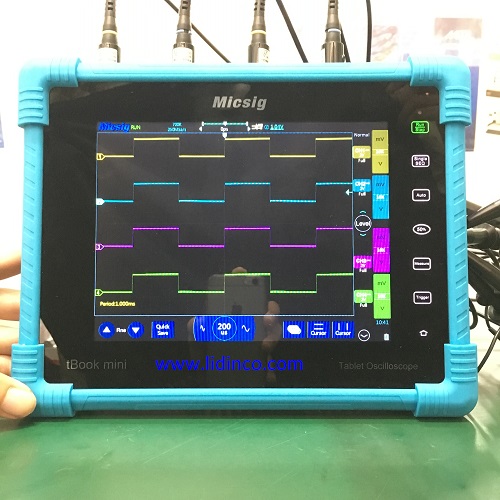

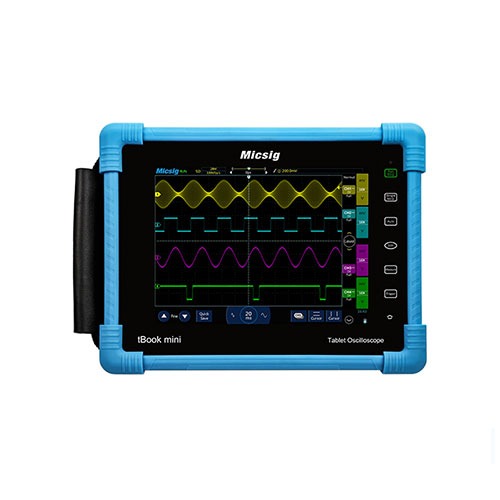

Tablet Oscilloscope Micsig TO1074, 70MHz, 4 CH

Name: Tablet Oscilloscope Micsig TO1074, 70MHz, 4 CH
Brand: Micsig
SKU: TO1074
Price: 0VND VND
Availability: InStock
Rating: 0.00 (0 reviews)

SKU:

TO1074

0 ratings

Brand:

Micsig

Warranty:

N/A

Price: Contact

Please contact to check stock

Request a quote

There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

Tel: +84 2839 778 269 / 3601 6797
Email: sales@lidinco.com
Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

Tel: +84 222 730 0180
Email: bn@lidinco.com
Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam

Technical Counseling 100% Free
Free Shipping For 3.000.000vnd Order

Specification

Data is being updated

Description product
Accessories

Description

tBook mini TO1000 series uses 8 inches industry TFT-LCD & 800*600 pixels display resolution, 2 or 4 channels, 70MHz & 100MHz bandwidth, 1 G Sa/s sample rate & up to 28Mpts memory depth and supports multi-touch capacitive screen, 256 intensity grading display and also supports LAN, WiFi, HDMI, USB Host, USB Device, Trigger out port and like that. Therefore, this series is your best choice for testing work.

tBook mini TO1000 series integrates all of advantages in one instrument: super low budget, rapid response, easy operation, technology UI and abundant features.

Specification:

Model	TO1072	TO1074	TO1102	TO1104
Bandwidth	70MHz	70MHz	100MHz	100MHz
Input Channel	2	4	2	4
Sample rate	1GSa/S
Memory depth	14Mpts		28Mpts
Max capture rate	80,000 wfm/s
Bandwidth limitation	20MHz		20MHz, high pass, low pass
Interface	Wifi, LAN, HDMI,USB Host, USB Device, GND, DC Power, Trigger out
Screen	8 inches TFT LCD 800600 pixels display resolution，1410 display range
Dimension	25021055mm
Battery(Optional)	8,000mAh Li-ion battery

Standard	Probe: 300MHz, 1X/10X Probe quantity depends on number of channels needed
Standard	1unit Power adaptor input 100~240V，50~60Hz，2A；output DC12V/5A，
Optional	Oscilloscope Handbag：Black Nylon
Optional	Suitcase：WR-16 ABS hard plastic suitcase
Optional	High voltage differential probe: 700Vpk/70MHz, 1500Vpk/70MHz, 1500Vpk/100MHz, 2800Vpk/100MHz, 7000Vpk/70MHz, 7000Vpk/100MHz
Optional	High frequency current probe: 30A/50MHz, 30A/100MHz , 150A/12MHz , 300A/6MHz 500A/5MHz
Optional	Screen Mask

Tablet Oscilloscope Micsig TO1074, 70MHz, 4 CH

Datasheet
TO1074

Manual
TO1074
