Handheld Oscilloscope Siglent SHS810X 100Mhz 2 CH

Handheld Oscilloscope Siglent SHS810X 100Mhz 2 CH

SKU:
SHS810X
Brand:
Warranty:
N/A
25.662.000đ 26.800.000đ OFF 4%

(Price does not include VAT)

  • Bandwidth:
  • Sampling Rate:
  • Waveform Length:
  • Channels:
  • 2 products available
  • There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

  • Tel: +84 2839 778 269 / 3601 6797
  • Email: sales@lidinco.com
  • Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

  • Tel: +84 222 730 0180
  • Email: bn@lidinco.com
  • Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam
  • Counseling Technical Counseling 100% Free
  • Shipping Free Shipping For 3.000.000vnd Order
Specification

Bandwidth: 100 MHz

Number of channels: 2 isolated channels

True sampling rate: 1GSa/s

Memory depth: 12 Mpts

Vertical resolution: 8 bit

Vertical sensitivity: 2 mV/div–100 V/div

Time base: 1.0 ns/div-100 s/div

DC voltage: 60mV | ±1%±15 digits
600 mV-600 V | ±1%±5 digits

AC voltage: 60mV – 750V | ±1.5%±15 digits

DC current: 60 mA-600 mA | ±1.5%±5 digits
6 A-10 A | ±2%±5 digits

AC current: 60mA | ±1.5%±5 digits
600 mA | ±2%±5 digits
6 A-10 A | ±3%±5 digits

Capacitance: 40 nF | ±3%±10 digits
400 nF-400 μF | ±4%±5 digits

Resistance: 600 Ω-6 MΩ | ±1%±5 digits
60 M | ±3%±5 digits

Open circuit: <50

Diodes: 0 – 2V

Weight: 1.75kg

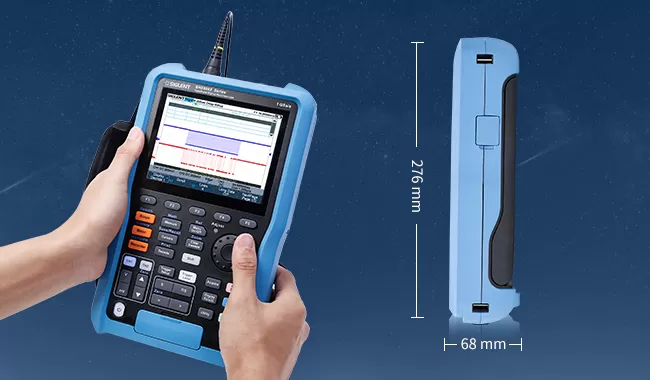

Dimensions: 276 mm * 168 mm * 68 mm

Description Siglent SHS810X 100Mhz 2 CH

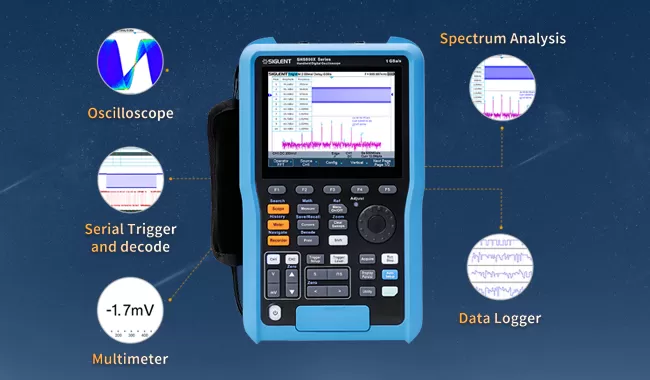

Five in one

1. 2 CH Oscilloscope
2. True RMS Multi-meter
3. Recorder

  •       Sample Logger
  •       Measurement Logger

4. Serial Trigger and decode
5. FFT spectrum analysis

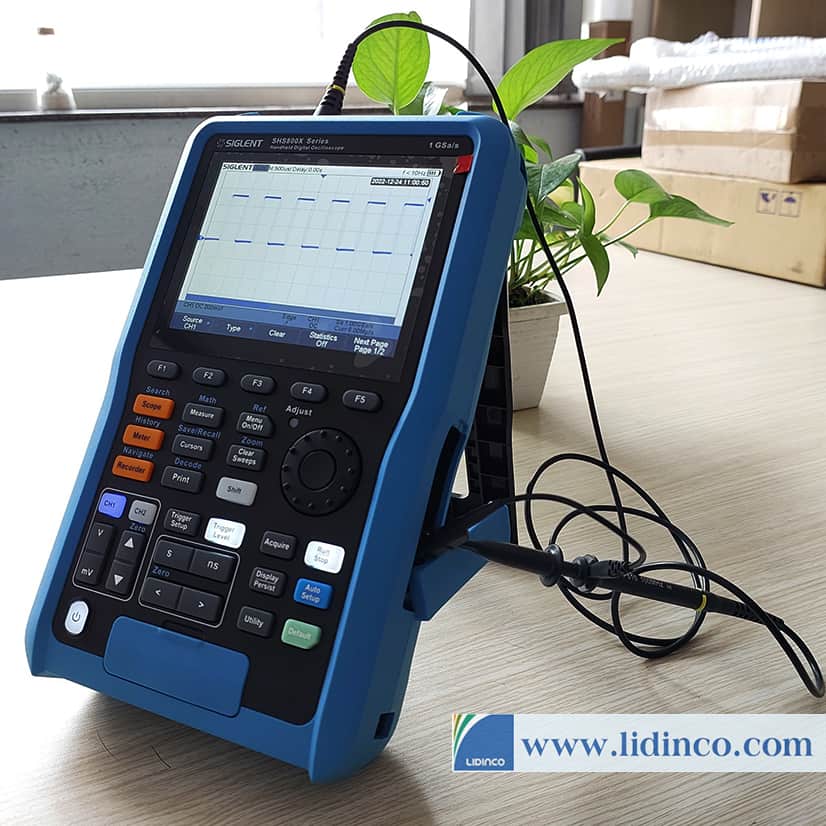

Portable and Easy to Use
The front panel size smaller than A4 paper reduces the size of the instrument, the rear panel support frame supports vertical placement, and the side nylon handles are convenient for handheld operation. The included carrying case has ample room for the instrument, probes and other accessories. Perfect for field work and carrying on business trips.

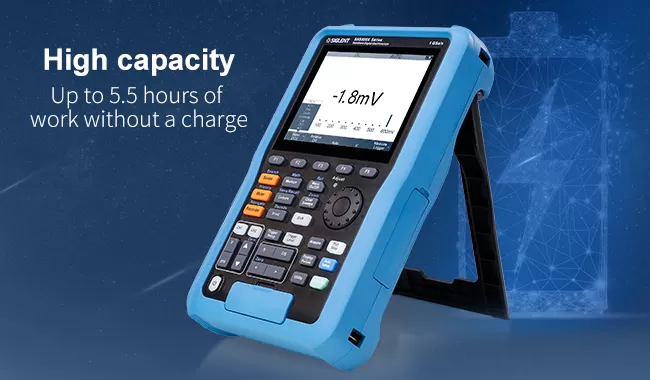

Higher protection level, longer battery life

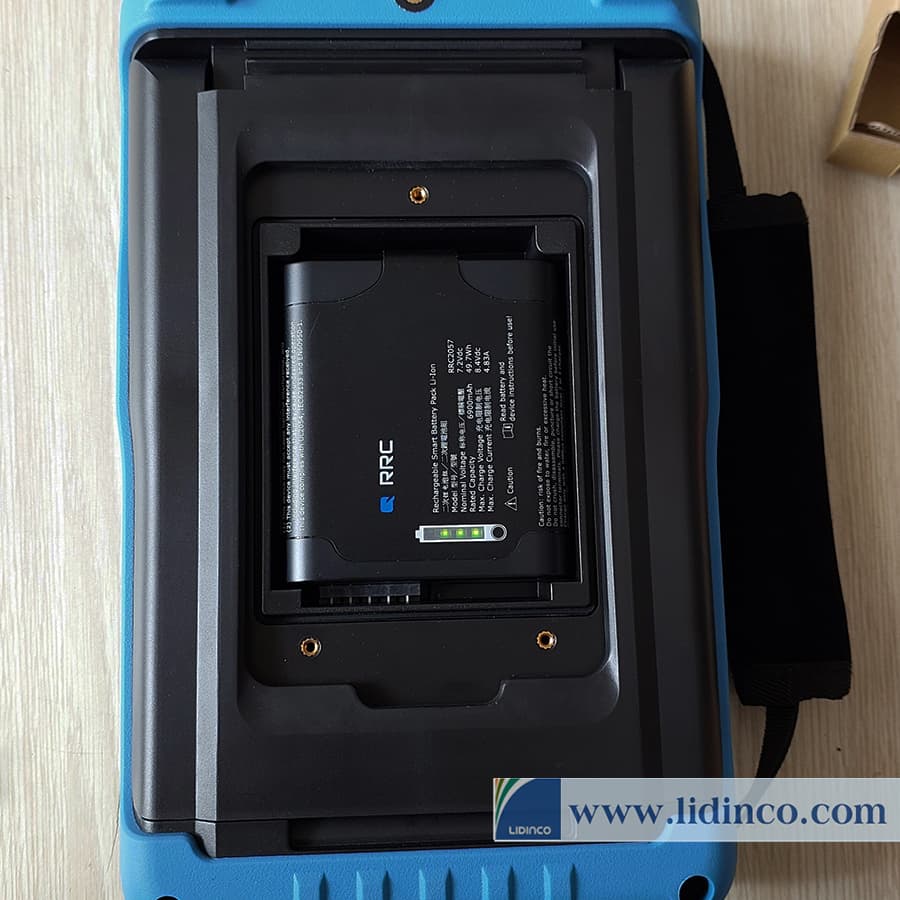

The  rechargeable 6900 mA high-capacity lithium battery is UL certified and delivers up to 5.5 hours of work without a charge, greatly improving safety and battery life. The battery can be charged in the cabin or removed and charged with an external charger.



Accessories

– Two Passive Probes

– Multimeter pen

– USB data cable

– DC adapter

– Power cord
