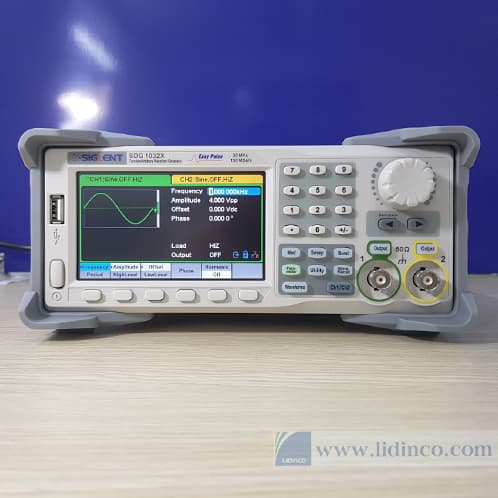

Arbitrary Function Generator SDG 1032X, 30MHz, 2 Channels

Arbitrary Function Generator SDG 1032X, 30MHz, 2 Channels

SKU:
SDG1032X
Brand:
Warranty:
N/A
8.800.000đ

(Price does not include VAT)

  • Frequency:
  • Sampling Rate:
  • Waveform Length:
  • Vertical Resolution:
  • 9 products available
  • There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

  • Tel: +84 2839 778 269 / 3601 6797
  • Email: sales@lidinco.com
  • Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

  • Tel: +84 222 730 0180
  • Email: bn@lidinco.com
  • Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam
  • Counseling Technical Counseling 100% Free
  • Shipping Free Shipping For 3.000.000vnd Order
Specification

Maximum output frequency: 30 MHz

Maximum sampling rate: 150 MSa/s

Vertical resolution: 14-bit

Wave length: 16 kpts

Channel: 2 ONLY

Sine wave: 1μHz ~ 30MHz

Square wave: 1μHz ~ 30MHz

Sawtooth wave: 1μHz ~ 500 kHz

Pulse wave: 1μHz ~ 12.5 MHz

Noise (-3dB): 60MHz

Arbitrary wave: 1μHz ~ 6MHz

Weight: 8 lbs

Dimensions: 10.2 × 4.2 × 11.6 inches

Description

SIGLENT’s SDG1000X is a series of dual-channel function/arbitrary waveform generators with specifications that include up to 60 MHz maximum bandwidth, 150 MSa/s sampling rate and 14-bit vertical resolution. The proprietary EasyPulse technique helps to solve the weaknesses inherent in traditional DDS generators when generating pulse waveforms, and the special square generator is capable of generating square waveforms up to 60 MHz in frequency with low jitter. With these advantages, the SDG1000X can provide users with a variety of high-fidelity / low jitter signals while meeting the growing requirements of a wide range of complex and varied applications.

Key Features

- Dual-channel, with bandwidth up to 60 MHz, and amplitude up to 20 Vpp
- 150 MSa/s sampling rate, 14-bit vertical resolution, and 16 kpts waveform length
- Innovative EasyPulse technology, capable of generating lower-jitter Pulse waveforms, brings a wide range and extremely high precision in pulse width and rise/fall times adjustment
- Special circuit for Square wave function, can generate Square waves up to 60 MHz with jitter less than 300 ps+0.05 ppm of period
- Plenty of analog and digital modulation types: AM, DSB-AM, FM, PM, FSK, ASK, PSK and PWM
- Sweep and Burst functions
- Harmonics Generator function
- Waveform Combining function
- High precision Frequency Counter
- Standard interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11)
- Optional interface: GPIB
- 4.3” TFT-LCD display

Specifications:

Comparative DataSDG1000X     Tektronix 3390Keysight 33500B
Bandwidth30/60 MHz     50 MHz20/30 MHz
Channels2     22
Sample Rate150 MSa/s     125 MSa/s160 MSa/s - 250 MSa/s
Vertical Sensitivity14 bit     14 bit16 bit
Frequency Resolution1 μHz     1 μHz1 μHz
WaveformSine,Square,Ramp,Pulse,Gaussian white noise,196 types of built-in Arb     Sine,Square,Ramp,Pulse,Gaussian white noise,4 ArbSine,Square,Sawtooth wave,pulse,Ramp,Noise wave,PRBS,DC
Sine1 μHz ~ 30/60 MHz     1 μHz ~ 50 MHz1 μHz ~ 20/30 MHz
Square1 μHz ~ 30/60 MHz     1 μHz ~ 25 MHz1 μHz ~ 20/30 MHz
Pulse1 μHz ~ 12.5 MHz     500 μHz ~ 10 MHz1 μHz ~ 20/30 MHz
Ramp1 μHz ~ 500 kHz     1 μHz ~ 200 kHz1 μHz ~ 200 kHz
Gaussian White Noise60 MHz     20 MHz20 MHz
Arbitrary Waveform Length16 kpts     256 kpts1 Mpts
InterfaceUSB Host & Device,LAN,GPIB(option)     USB Host & Device、LAN、LXI、GPIBUSB Host & Device,LAN,LXI,GPIB (option)
Display4.3 inch     -4.3 inch

Accessories

- Power Cord

- USB Cable

- Quick Start Guide-SDG1KX
