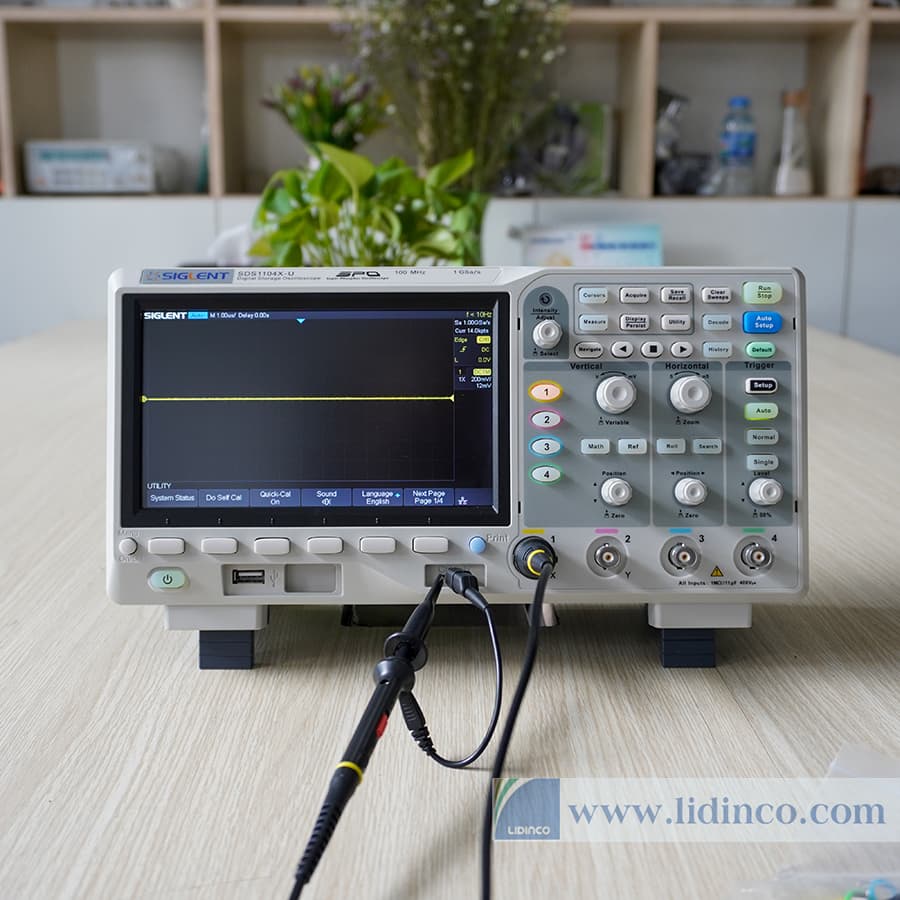

Digital Oscilloscope Siglent SDS1104X-U 100MHz 4 Channel

Name: Digital Oscilloscope Siglent SDS1104X-U 100MHz 4 Channel
Brand: Siglent
SKU: SDS1104X-U
Price: 9.400.000VND VND
Availability: InStock
Rating: 0.00 (0 reviews)

SKU:

SDS1104X-U

0 ratings

Brand:

Siglent

Warranty:

N/A

9.400.000đ ~~11.750.000đ~~ OFF 20%

(Price does not include VAT)

11 products available

There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

Tel: +84 2839 778 269 / 3601 6797
Email: sales@lidinco.com
Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

Tel: +84 222 730 0180
Email: bn@lidinco.com
Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam

Technical Counseling 100% Free
Free Shipping For 3.000.000vnd Order

Specification

Bandwidth: 100MHz

Number of measuring channels: 4 channels

Sampling rate: 1Gsa/s

Waveform capture speed: 100,000 wfm/s / 400,000 wfm/s

Memory depth: 14Mpts

Trigger system: Edge, Slope, Pulse Width, Window, Runt, Interval, Time out (Dropout), Pettern

FFT: 128kpts

Quick measurement functions: Auto Setup, Default, Cursors, Measure, Roll, History, Display/Persist, Clear Sweep, Zoom and Print

LCD: 7 inches

Ports: USB Host, USB Device (USB-TMC), LAN, Pass/Fail, Trigger Out

Description product
Accessories

Description

SDS1000DL+ is a dual-channel universal digital oscilloscope, available in 50 MHz bandwidth. It includes a 32 kpts memory depth that helps to ensure accurate waveform resolution and to capture longer signal lengths. With its 7 inch TFT-LCD (800*480) screen, there is adequate screen space to help better see and analyze waveform details. Along with a 500 MSa/s sampling rate, the SDS1000DL+ supports 32 parameters measurements and common mathematical operations to speed up complex / repetitive measurements.

Features:

- 50 MHz bandwidth model
- Real-time sampling rate up to 500 MSa/s
- Memory Depth up to 32 kpts
- Trigger types: Edge, Pulse, Video, Slope, Alternate
- Waveform math functions:+, -, *, /, FFT
- 6 digital frequency counter
- Supports Multi-language display and embedded online help
- Screensaver from 1 minute to 5 hours
- Digital filter and waveform recorder function
- Shortcut storage function key
- 7 inch TFT-LCD display with 800 * 480 resolution
- Multiple interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11), Pass / Fail

	SDS1104X-U	Rigol 1054Z	Keysight DSOX1000A/G	SDS1104X-E
Bandwidth	100MHz	50MHz	70/100/200MHz	100MHz
Channels	4CH	4CH	2/4CH	4CH
Channel Digital (MSO)	No	No	No	16 kênh Digital (Option)
Timebase	2 ns/div to 100 s/div	5 ns/div to 10 s/div	2 ns/div to 50 s/div (200MHz)	1 ns/div to 100 s/div
Real time sampling rate	1*1GSa/s ADC	1*1GSa/s ADC	2*2GSa/s ADC (4CH)	2*1GSa/s ADC
Memory depth	1*14Mpts	1*12Mpts	2*2Mpts (4CH)	2*14Mpts
Waveform Capture Rate	>100,000 wfm/s Sequence mode: 400,000	30000 wfm/s	200,000 wfm/s Segment mode: 1,000,000	>100,000 wfm/s Sequence mode: 400,000
Vertical Scale	1 mV/div to 10 V/div	1 mV/div to 10 V/div	500 μV/div to 10 V/div	500 μV/div to 10 V/div
Independent channel control	No	No	No	No
FFT	128 kpts	2048 pts	64 kpts	1 Mpts
History	80000	60000	Không	80000
Segment memory	Support	Support	Support(Max.500)	Support
AWG	Không	Không	Option	Option
Digital filter	No	Yes	Low-pass filter	No
Measurement and math	14Mpts		2Mpts	14Mpts
Statistics of the same time	5	5	4	5
ROLL measurement	Yes	Yes	Yes	Yes
ROLL trigger	Yes	No	No	Yes
Bode Plot	No	No	Hỗ trợ 4CH	Yes
Protocol	UART, I2C, SPI, CAN, LIN	UART, I2C, SPI	I²C, SPI, UART/RS-232, CAN, LIN	UART, I2C, SPI, CAN, LIN
Search	Yes	No	No	Yes
Update via browser	No	No	No	Yes
USB Wifi	No	No	No	Option
LCD	7"	7"	7"	7"
