Ultimate All-in-One Digital Multimeter LCR-Reader-MPA

Ultimate All-in-One Digital Multimeter LCR-Reader-MPA

SKU:
LCR Reader MP
Brand:
Warranty:
N/A
Price: Contact
  • Product Type:
  • Test Frequency:
  • Accuracy:
  • 3 products available
  • There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

  • Tel: +84 2839 778 269 / 3601 6797
  • Email: sales@lidinco.com
  • Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

  • Tel: +84 222 730 0180
  • Email: bn@lidinco.com
  • Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam
  • Counseling Technical Counseling 100% Free
  • Shipping Free Shipping For 3.000.000vnd Order
Specification

Data is being updated

The new MPA has an all-new design, 0.1% basic accuracy, 3 test signal levels and better LED testing

After a year on the market, Siborg has updated their Multipurpose testing device and released the LCR-Reader-MPA. The new model features the same record high 0.1% basic accuracy and unrivalled features such as AC/DC voltage/current measurements, oscilloscope mode, Diode/LED tests, frequency meter, super large capacitance testing, signal generator, continuity/open testing, 100 kHz test frequency and more.

LCR-Reader-MPA: Versatile Digital Multimeter from Siborg Systems Inc.

LCR-Reader-MPA combines tweezer probes with a powerful LCR/ESR-meter that is able to determine the type of component and best test parameters before measuring with a 0.1% basic accuracy. The device will display the main impedance value, any secondary values such as ESR, Q or D, component type and test parameters used instantly on a bright backlit LCD display. The 1 oz. device is very portable and ideal for fieldwork.

MPA offers a wide range of test features and modes, including LED/diode tests, AC/DC voltage measurements, short/continuity testing, frequency and duty cycle measurements, signal generator, pulse counting and more. One of the most appealing features is the ability to test using 100 kHz test frequency which allows for a 0.001 F resolution for capacitance and 0.1 nH for inductance measurements.

The most obvious difference between the models is the design; the MPA is significantly lighter at 30 grams, nearly 1.5 times lighter than the original MP. A redesign of the tweezers’ handles mean better stability and contact with components while testing. The jog-wheel navigation was replaced with a 4-way joystick navigation button. This allows users to change basic test functions directly from the home screen.

As for internally, MPA now offers three test signal levels: 0.1, 0.5 and 1 Vrms. Being able to test at 1 Vrms is very important for accuracy while testing ceramic capacitors. The slide switch for voltage measurements was replaced with an automatic relay switch. The signal source resistance was reduced to 100 Ohms allowing fo better accuracy while testing smaller resistances and inductances and larger capacitances. The LED test voltage was increased to 3.2 Volts.

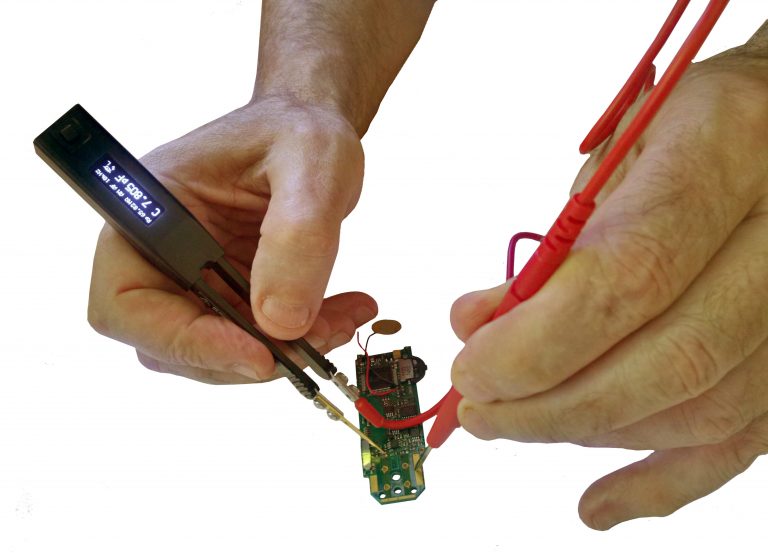

Siborg included an oscilloscope mode when creating the MP line; this feature has not been available since Smart Tweezers ST-1. The analog display is best used when testing voltage waveforms on active circuit boards, using frequencies up to 100 kHz. This mode is also very useful when used with LCR-Reader Kelvin Probe Connector; this allows users to use the MPA as a low-frequency probe station and test waveforms at various nodes on a PCB.

Màn hình hiển thị LCR Reader MPA
Màn hình hiển thị LCR Reader MPA 1

A few features that set MPA apart from similar devices including: testing Large and Super Large Capacitances up to 640 mF; a wide range of test frequencies (100, 120 Hz, 1, 10, 20, 30, 40, 50, 60, 75 and 100 kHz). Electrolytic capacitors are measured at 120 Hertz while ESR at 100 kHz according to regular electrolytic capacitor test conditions.

Coming Soon:LCR-Reader-MPA with Optional Bluetooth Module. This model will allow for real-time measurement recording using low energy connectivity. The device will connect to Microsoft Windows using a receiver dongle.

LCR-Reader-MPA is available in 2 styles: Grey display or Black display. Both are back-lit LCD displays; the black display shows higher contrast while the grey display has a more illuminated background.

Features

Fully automatic and manual LCR, ESR, LED/Diode measurements
0.1% Basic accuracy
Automatic and manual Test Frequency, including 100, 120 Hz, 1, 10, 20, 30, 40, 50, 60, 75 and 100 kHz
AC/DC voltage measurements up to 15 V
AC/DC Current measurements
Easy Open/Short calibration and offset removal
Test signal levels: 0.1, 0.5 and 1.0 Vrms
Automatic Test Signal Reduction to 0.1 V for in-circuit measurements
Oscilloscope Transient Voltage up to 100 kHz
Signal Generator with Sine wave up to 100 kHz
Handles components to a 0201 size (0.3 mm)
Displays active and reactive impedance components
Li-Po battery and micro-USB charging port
1 oz. weight
Backlit LCD display
Gold-plated test leads
NIST Traceable Calibration Certificate (included with LCR-Reader-MPA Pro Task Kit)

Accessories

DC Bias Current Source TongHui TH1778AS

Contact

Precision Capacitance Meter Tonghui TH2638C 1kHz

Contact

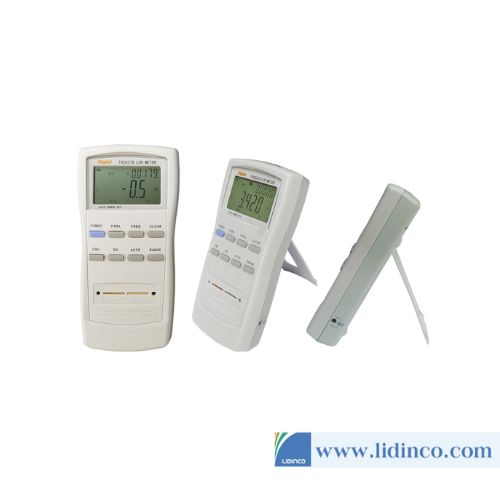

Handleld LCR Meter TongHui TH2821B

Contact

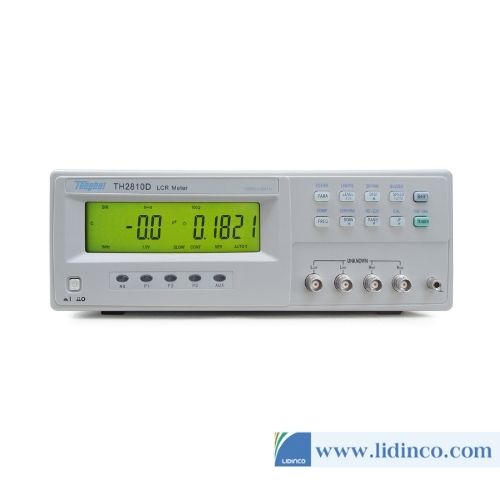

LCR Meter TongHui TH2812D 100Hz-10kHz

Contact

High Frequency LCR Digital Bridge TongHui TH2836

Contact

Precision LCR Meter Tonghui TH2827C

Contact

Handheld Digital LCR Meter SANWA LCR700

Contact

High Precision Professional Digital LCR Meter Twintex LCR-7200A

Contact

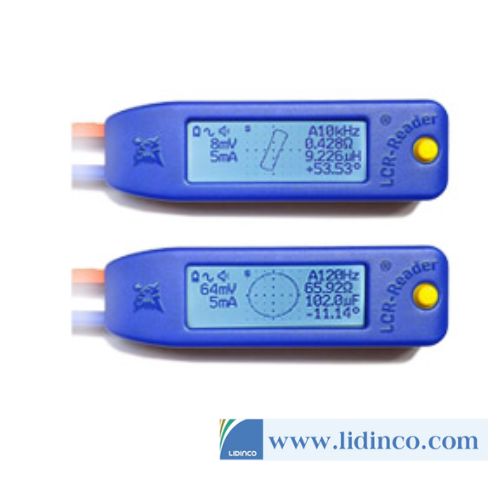

LCR-Reader-R2 Siborg

Contact

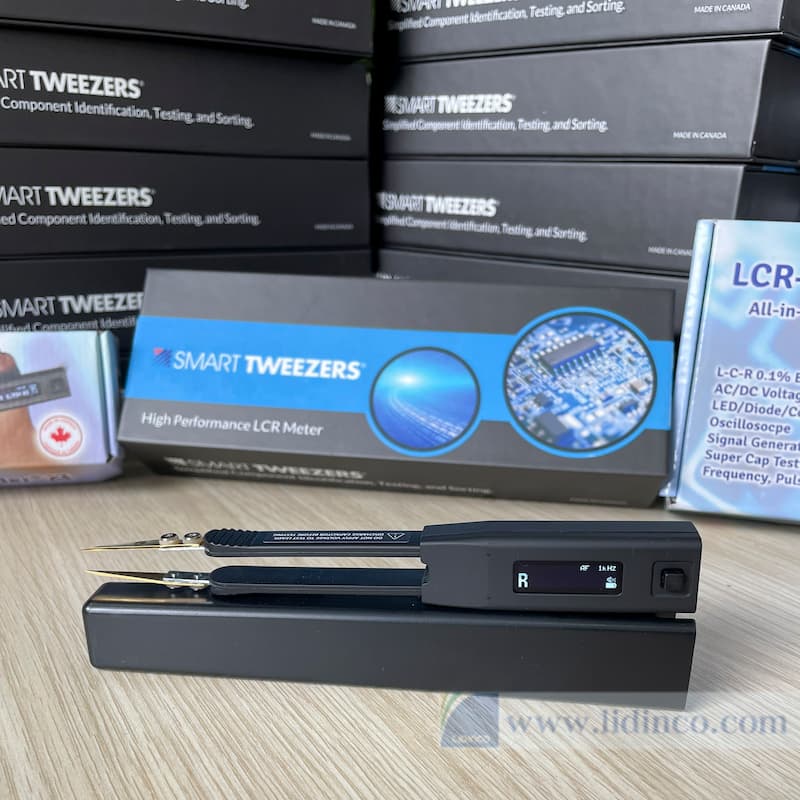

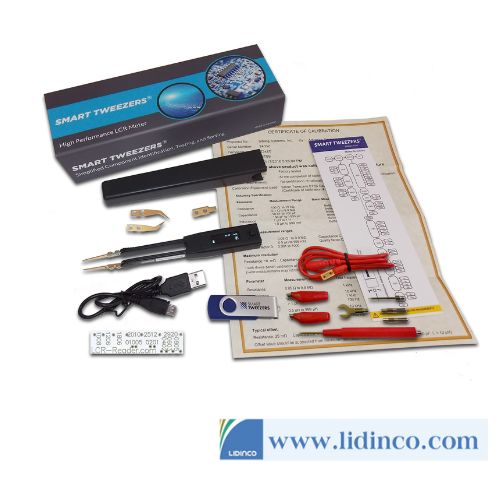

Smart Tweezers Siborg ST-5S Pro

Contact

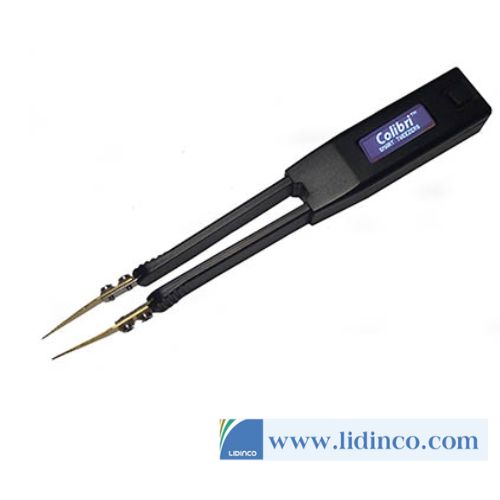

Digital Multimeters Offered Siborg Colibri

Contact

SMD Multimeter Test Tweezers

Contact

Nhíp thông minh kiểm tra LED

Contact

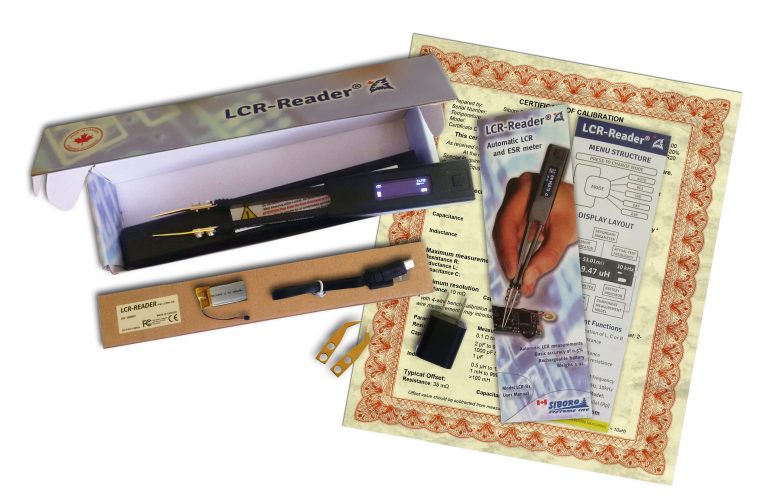

LCR-Reader Professional

Contact

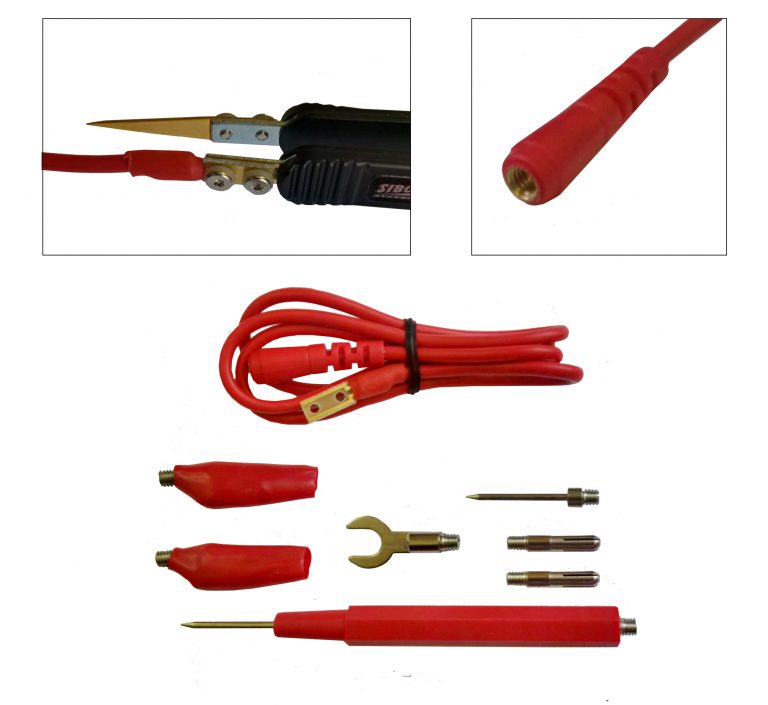

LCR-Reader Probe Connector
