Smart Tweezers® / LCR-Reader Multifunction Probe Connector:

Extends LCR-Reader's Reach

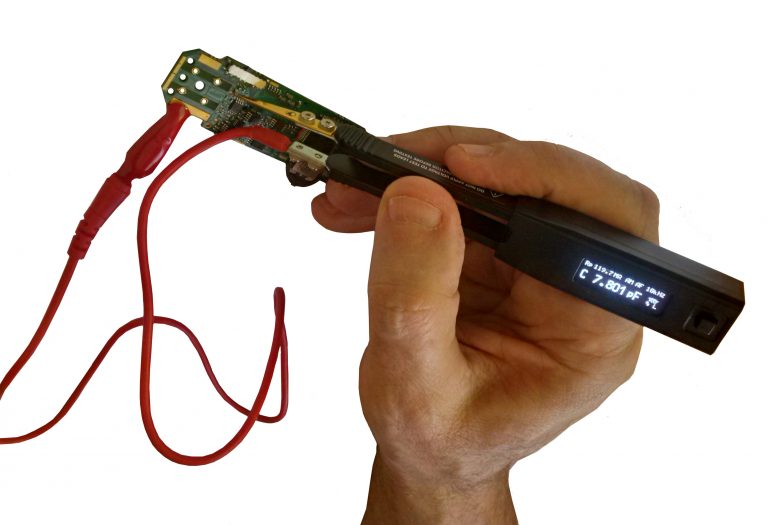

Siborg's LCR-Reader Probe Shielded Two-Wire Connector allows to use LCR-Reader as a probe station. It also allows users to measure components that are beyond the tweezers allowable spread. The Connector is fully compatible with other tweezer-like meters in particular all models of Smart Tweezers®.

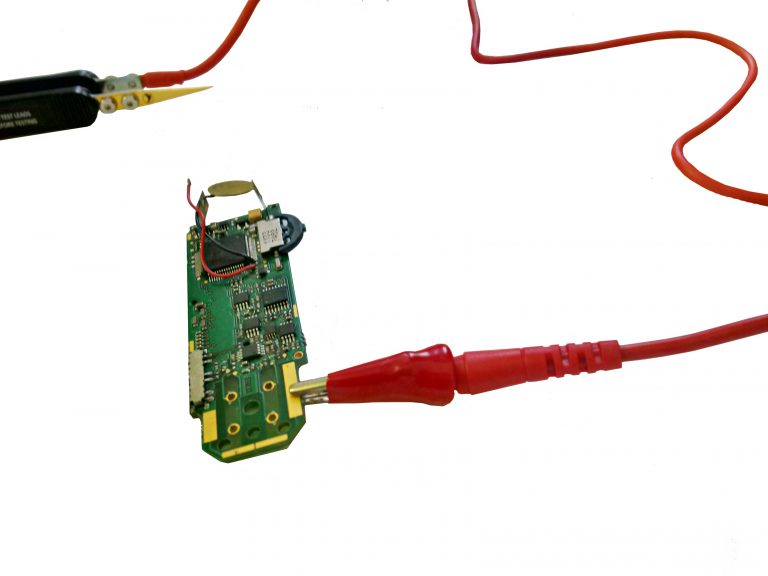

Probe Connector being used with aligator clips

The kit comes with 7 different kinds of probes; 2 alligator clips, 1 longer pin-probe, 1 medium pin-probe, 2 multimeter 4 mm jack plugs, 1 spade connector. Each tip screws into the end of the connector cable.

The LCR-Reader Probe Connector is simple to install: simply unscrew one of the gold-plated probes from LCR-Reader; place the flat side of the connector cable on the LCR-Reader's probe arms with the gold flex cable and the connector cable's flat end with two gold stripes. Return screws to the holes and start measuring.

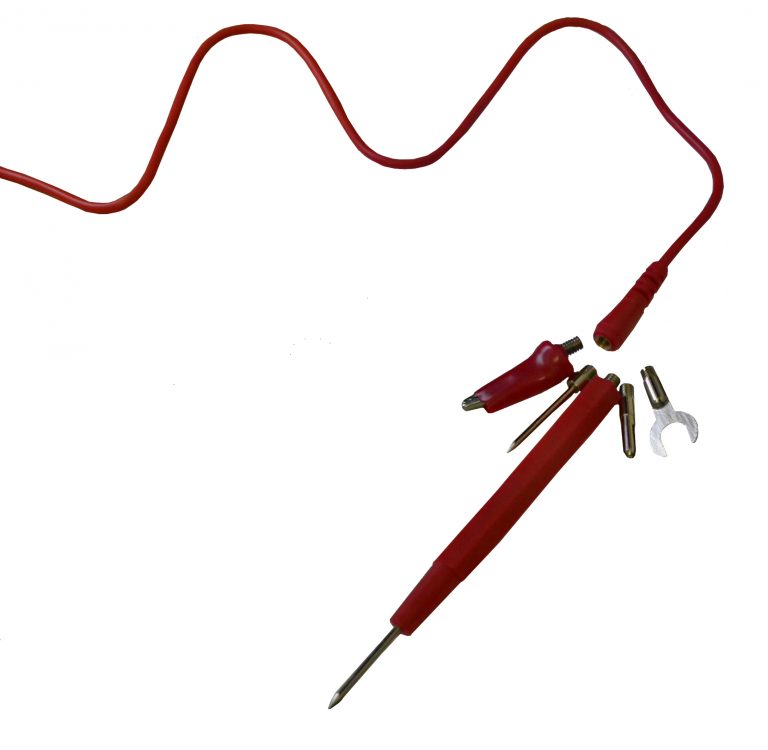

attachments for the Probe Connector

Features
Includes:
1 long pin-probe
1 medium pin-probe
1 spade connector
2 alligator clips
2 4mm multimeter jacks
Cable Length:60 cm




Now Available: Fine and Extra-Fine Pin Probes for LCR-Reader Probe Connector

Fine Pin Probe for LCR-Reader Probe Connector

Extra Fine Pin Probe for LCR-Reader Probe Connector

The LCR-Reader Store is now offering Fine Pin Probe (124 mm) and Extra-Fine Pin Probe (73 mm) attachments for the LCR-Reader and Smart Tweezers® devices. These probes can be used with the LCR-Reader Probe Connector or 4 mm multimeter jacks. The probes offer long, sharp pin probes for more precision while using the LCR-Reader or Smart Tweezers® as full probe stations. Note: the Fine and Extra-Fine Pin Probes are sold separately. LCR-Reader Probe Connector or wire not included.
