Microtest Impedance Analyzer Microtest 6632-1

Name: Microtest Impedance Analyzer Microtest 6632-1
Brand: Microtest
SKU: 6632-1
Price: 0VND VND
Availability: InStock
Rating: 0.00 (0 reviews)

SKU:

6632-1

0 ratings

Brand:

Microtest

Warranty:

N/A

Price: Contact

Please contact to check stock

Request a quote

There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

Tel: +84 2839 778 269 / 3601 6797
Email: sales@lidinco.com
Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

Tel: +84 222 730 0180
Email: bn@lidinco.com
Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam

Technical Counseling 100% Free
Free Shipping For 3.000.000vnd Order

Specification

Data is being updated

Description product
Accessories

Features

Signal source frequency range: 10 Hz to 1/3/5/10/20/30/50 MHz
Basic accuracy up to ±0.08% (typical ±0.05%)
ALC function
Output impedance 25Ω/100Ω, switchable
Support meter mode and list mode, sweep mode, and equivalent circuit analysis(option) function
Built-in DC Bias voltage ±12V
Measurement of piezoelectric element admittance circle, and can measure DC bias characteristic of capacitance value.
Ultra-high measuring speed < 3ms
Open circuit/short circuit/load correct function
Up to four component parameters can be selected in the electric meter mode. The induction and DCR values can be measured and displayed simultaneously
Auto component classification: Comparator function and Handler BIN classification function

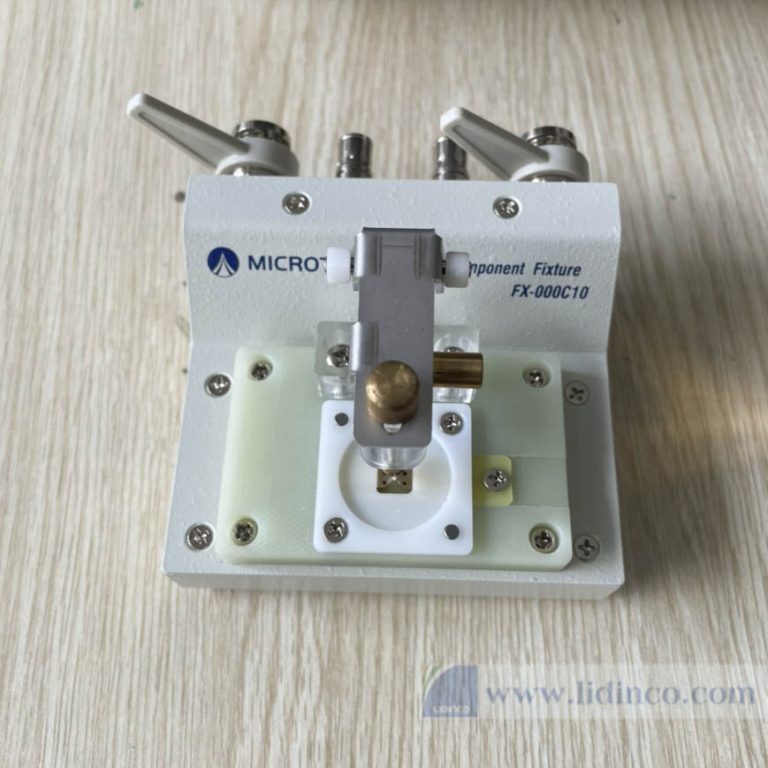

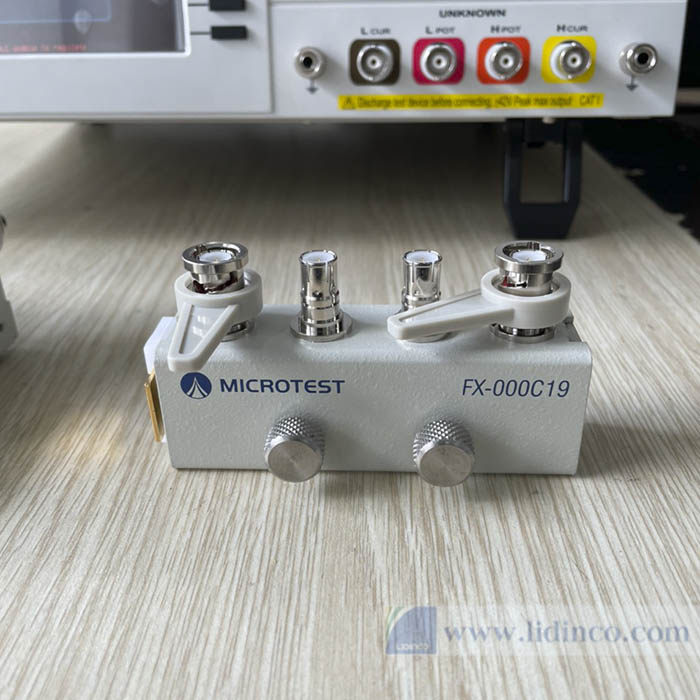

Can be used with various fixtures, such as: liquid dielectric material test fixture, dielectric material test fixture and magnetic material test fixture….etc.
Using with DC bias current test system
Support RS-232、GPIB、Handler、LAN、USB Host/Device interfaces
PC connection data analysis software is available

Specification


Test Frequency	6332-1/1S	10Hz ~ 1MHz
	6332-3/3S	10Hz ~ 3MHz
	6332-5/5S	10Hz ~ 5MHz
	6332-10/10S	10Hz ~ 10MHz
	6332-20/20S	10Hz ~ 20MHz
	6632-30/30S	10Hz ~ 30MHz
	6632-50/50S	10Hz ~ 50MHz
	* Optional Equivalent Circuit Analysis function (S model)
	Minimum Resolution	100mHz, 6-bit Frequency Input
	Accuracy	7 ppm±100mHz
Basic Accuracy	± 0.08% (typical ±0.05%)
AC Test Signal Level	Test Signal Voltage Level	10mV – 2Vrms(Ro 100Ω) 10mV – 1Vrms(Ro 25Ω)
	Voltage Minimum Resolution	1mV
	Accuracy	ALC ON：6％ * Voltage ± 2mV ALC OFF：10％ * Voltage ± 2mV
	Test Signal Current Level	200µA – 20mArms
	Current Minimum Resolution	10µA
	Accuracy	ALC ON：6％ * Current ± 20µA ALC OFF：10％ * Current ± 20µA
DC Test Signal Level	1V (Fixed)
Test Time (The fastest)	< 3mS
Output Impedance	25Ω/100Ω, switchable (Nominal value)
Parameters	\|Z\|、\|Y\|、θ、X、R、G、B、L、D、Q、DCR、C、 ESR、ε and μr
Bias	Can be using with DC Bias
Measurement Mode	Meter mode, list mode, sweep mode, and optional equivalent circuit analysis function(S model)
Correction	Open Circuit/ Short Circuit/Load Correction
Measurement Circuit	Series/Parallel
List mode	50 groups of list mode setting (Each group contains up to 15 steps)
Equivalent Circuit Analysis	Three elements、Four elements (option)
DC bias voltage	-12 to +12V, 0.3% ±1.5mV, 100Hz to 30MHz
BIN	9 Level
Comparator	ABS、ΔABS、Δ%、OFF
Internal Storage	100 sets LCR setting documents, 50 groups of list mode setting
USB Storage	LCR setting documents, list mode setting document, BMP graphics, Sweep screen and test result data
Interface	RS-232、GPIB、Handler、LAN、USB Host/Device
Option	PC connection software
Option	Equivalent Circuit Analysis
Power Supply	Voltage 90V ～ 264Vac
Power Supply	Frequency 47Hz ~ 63Hz
Power Consumption	Low power consumption: Maximum 30W (Nominal value)
Display	7.0”TFT, 800×480 color screen
Environment	Temperature: 10℃ ～ 40℃ Humidity: ≦90%
Dimension (WHD)	336x147x340 mm
Weight	3.95Kg

Parameters Measurement Ranges


\|Z\|	0.000 mΩ to 9999.99 MΩ
R, X	± 0.000 mΩ to 9999.99 MΩ
\|Y\|	0.00000 μS to 999.999 kS
G, B	± 0.00000 μS to 999.999 kS
θRAD	± 0.00000 to 3.14159
θDEG	± 0.000° to 180.000°
Cs, Cp	± 0.00000 pF to 9999.99 F
Ls, Lp	± 0.00 nH to 9999.99 kH
D	0.00000 to 9999.99
Q	0.00 to 9999.99
Δ	± 0.00% to 9999.99%
Rdc	0.00 mΩ to 99.9999 MΩ
εr’ εr”	0 to 10000
μr’ μr”	0 to 10000

Applications


Passive Components	Capacitor, Inductor, Resistor, Transformer, Ceramic resonator, Quartz Crystal
Semiconductor Components	The CV characteristics analysis of varactor diodes, Diodes
Dielectric Material	Estimation on permittivity and consumption tangent of plastic, ceramic and PCB
Electromagnetic Material
Other Components	Estimation of the impedance of PCB components
