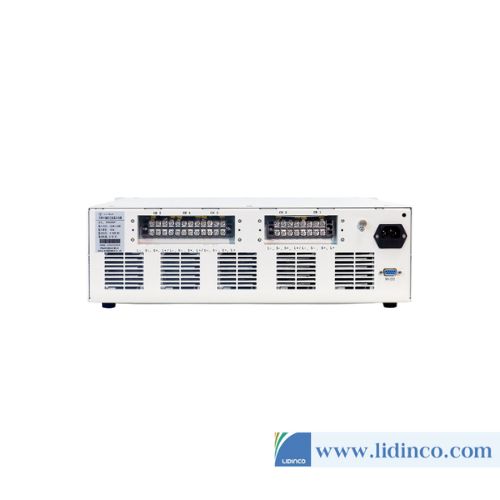

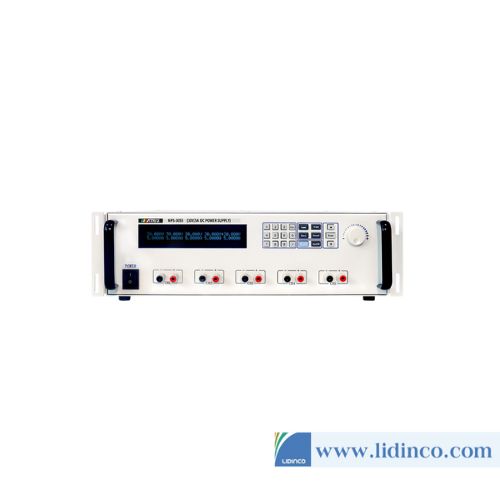

Programmable DC Power Supply Matrix MPS-6035 5 kênh
Hotline: +84 906 988 447
Head Office: Ho Chi Minh City
- Tel: +84 2839 778 269 / 3601 6797
- Email: sales@lidinco.com
- Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam
Office: Bac Ninh City
- Tel: +84 222 730 0180
- Email: bn@lidinco.com
- Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam
-
Technical Counseling 100% Free
-
Free Shipping For 3.000.000vnd Order
Specification
Data is being updated
Descriptions
The five-channel programmable DC power supply is a new generation of high-quality programmable linear DC power supply. The five channels can independently adjust the voltage and current. This series of products are equipped with RS232 communication interface, which has both desktop and system characteristics, and can be arbitrarily matched with other instruments, Integrated as a test system with special functions to complete the measurement requirements in different occasions. The upper computer program can be edited through the communication protocol, which brings great convenience to the user. It is a replacement product of the ordinary programmable power supply and has a high cost-effective advantage.
Features
●5 in 1, easy to operate, small volume;
●30V/5A, 60V/3A output five channel are isolated;
●Voltage compensation function improves accuracy;
●1mV/0.1mA high resolution;
●Linear power supply, low ripple and noise;
●Panel operation, it is convenient to be used independently.
Specification
Model | MPS-3035 | MPS-3055 | MPS-6035 | |
Rated input voltage | AC220V/110V±5% | |||
Rated output voltage | 0-30V*5CH | 0-30V*5CH | 0-60V*5CH | |
Rated output current | 0-3A*5CH | 0-5A*5CH | 0-3A*5CH | |
Transformation method | Linear power supply | |||
Load regulation rate | Voltage | ≤0.02%+5mV | ||
Current | ≤0.02%+5mA | |||
Power regulation rate | Voltage | ≤0.02%+5mV | ||
Current | ≤0.02%+5mA | |||
Setting resolution | Voltage | 1mV | ||
Current | 0.1mA | |||
Setting accuracy(25℃±5℃) | Voltage | ≤0.05%+5digit | ||
Current | ≤0.05%+2mA | |||
Readback resolution | Voltage | 1mV | ||
Current | 0.1mA | |||
Readback accuracy(25℃±5℃) | Voltage | ≤0.05%+5digit | ||
Current | ≤0.05%+2mA | |||
Temperature | Operation | 0 to 40 ℃ ≤ 80 R.H. | ||
Storage | -15 to 70 ℃ ≤ 80 R.H | |||
Size(W*H*D(mm)) | 480*142*370 | 480*142*370 | 480*142*370 | |
Net weight | 25kg |
