Description

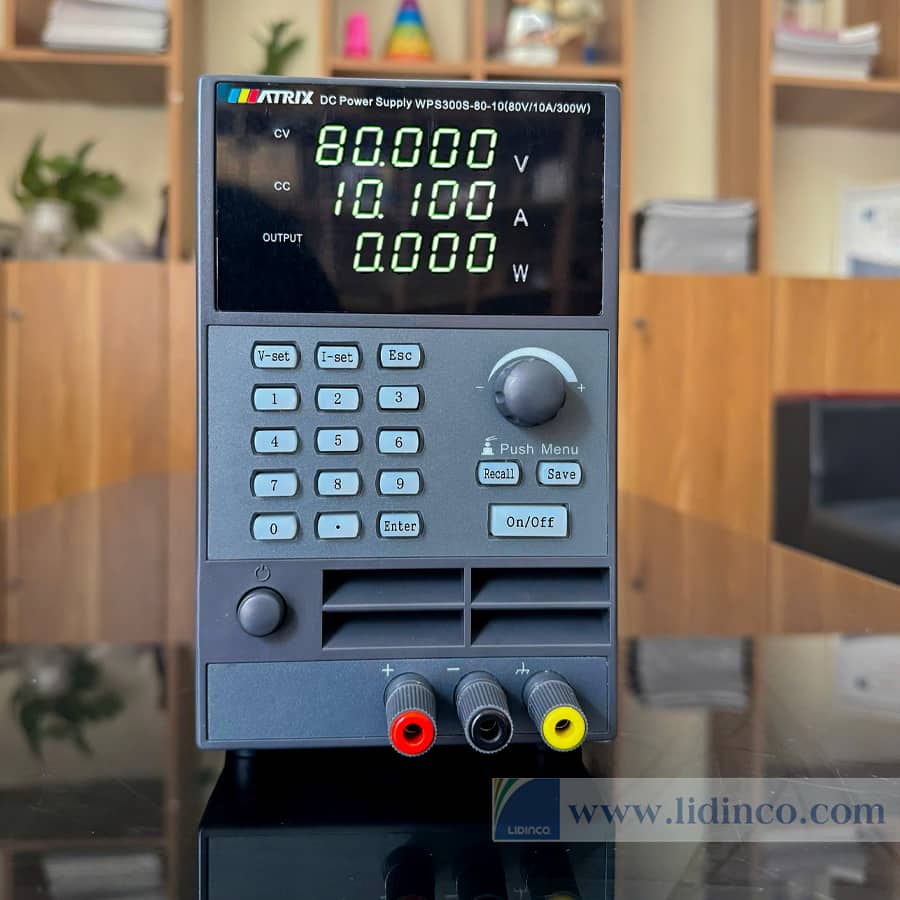

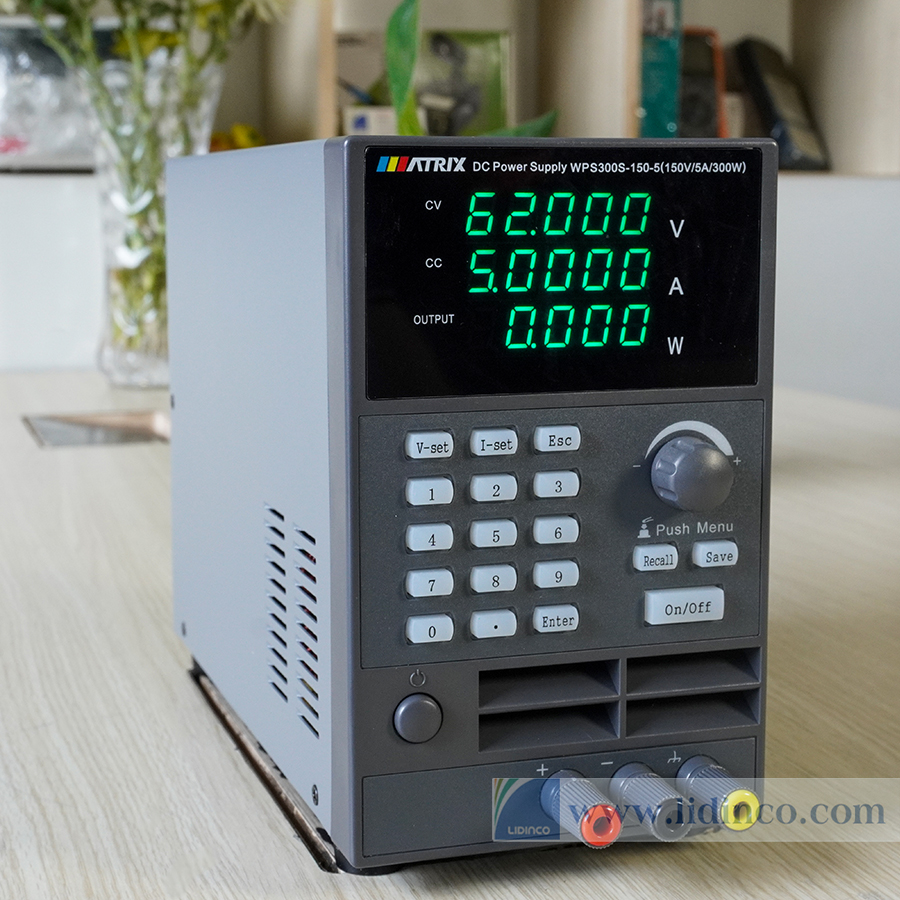

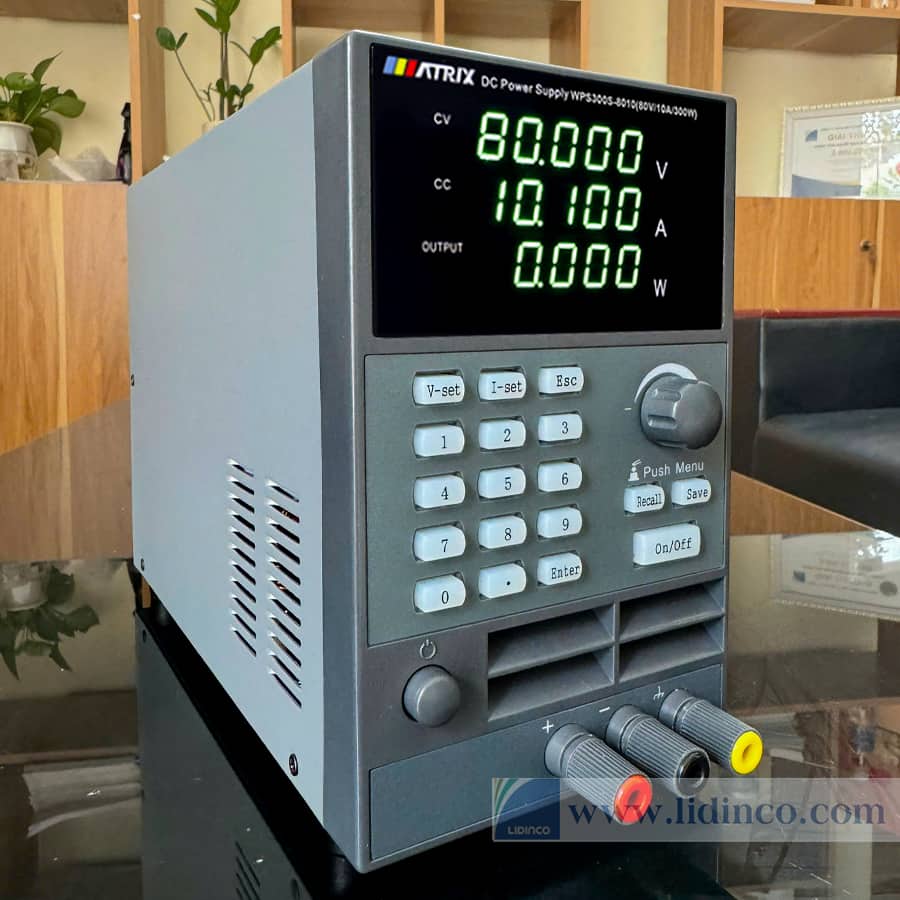

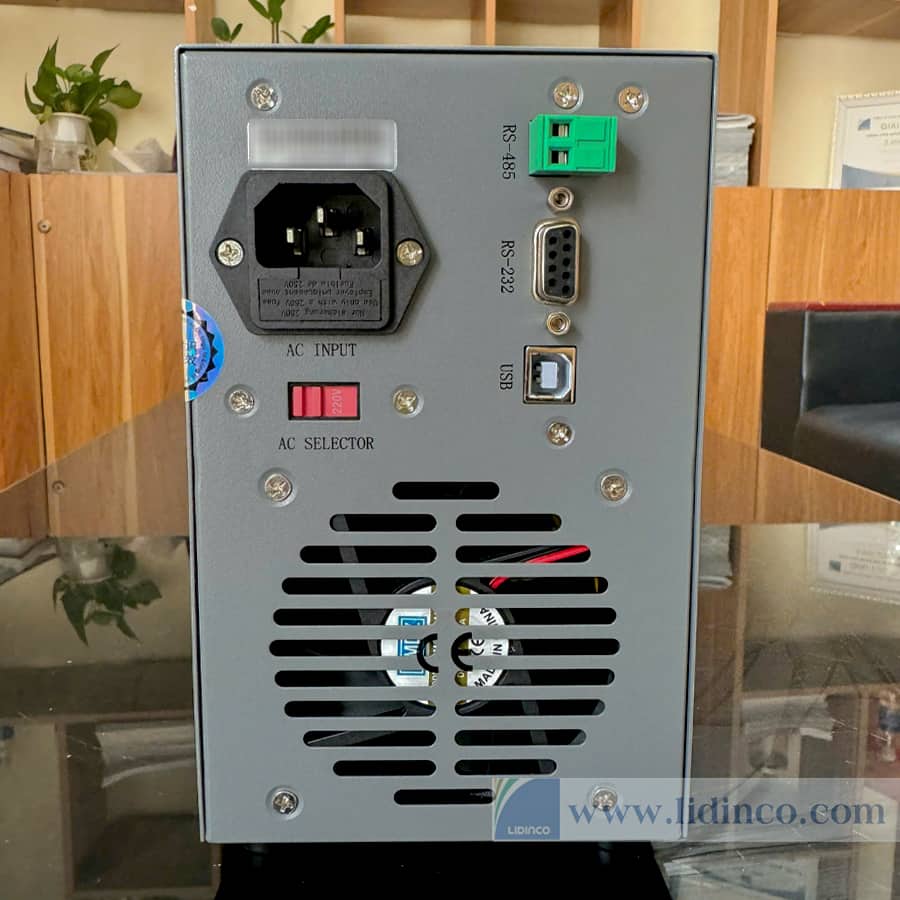

The WPS-300S series is a new high-precision and wide range programmable switching DC power supply. It has a novel appearance, light weight, small size simple operation, and good stability, bringing great convenience to users. It has a high cost-effectiveness advantage and is equipped with RS232, RS485, and USB communication interfaces as standard. It can be widely used in electronic product development, component testing, communication industry, laboratories, and research institutions.

Features

2 model options: 80V/10A150V/5A rated power 300W
Resolution of voltage 1mV and current 0.1mA, high-precision display
Set voltage and current through two methods: digital keyboard and knob
Nine sets of voltage and current storage and retrieval functions, convenient and fast Output switch control, easy to control
Intelligent temperature controlled fan, extremely practical
The knob adopts a coding switch, which is convenient and fast to use, and has anti misadjustment function
LIST output function
Voltage and current range setting function
OVP/OCP setting function
One click initialization function

Specifications

Model		WPS300S-80-6	WPS300S-80-10	WPS300S-150-5
Rated input voltage		AC220V/110V±10%
Rated output voltage		0-80V		0-150V
Rated output current		0-6A	0-10A	0-5A
Rated output power		150W	300W	300W
Load regulation rate	Voltage	≤0.02%+8mV	≤0.02%+8mV	≤0.02%+5mV
	Current	≤0.02%+5mA	≤0.02%+5mA	≤0.02%+5mA
Line regulation rate	Voltage	≤0.02%+8mV	≤0.02%+8mV	≤0.02%+5mV
	Current	≤0.02%+5mA	≤0.02%+5mA	≤0.02%+5mA
Operating temperature		0to 40°C≤80R.H
Storage temperature		-15to 70C≤80R.H
*Machine size(WHD)*		111170250mm
Net weight		2kg
