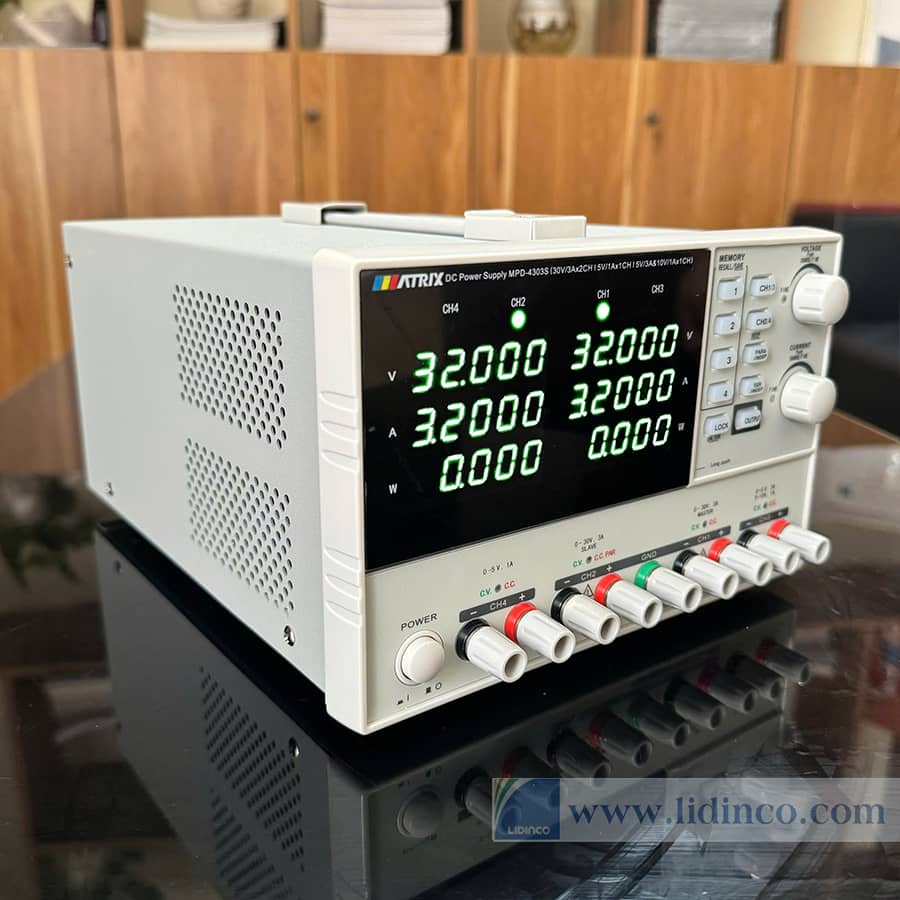

Multi-channel Programmable DC Power Supply Matrix MPD-4303S Series
Hotline: +84 906 988 447
Head Office: Ho Chi Minh City
- Tel: +84 2839 778 269 / 3601 6797
- Email: sales@lidinco.com
- Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam
Office: Bac Ninh City
- Tel: +84 222 730 0180
- Email: bn@lidinco.com
- Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam
-
Technical Counseling 100% Free
-
Free Shipping For 3.000.000vnd Order
Data is being updated
Descriptions
The MPD series programmable linear DC power supply adheres to MATRIX's consistent technological and quality advantages in the field of power supply research and development production. There are numerous significant advantages, such as digital panel control, large display screen, bright LED indicator lights, high output resolution, 4 sets of setting memory, USB remote control, and intelligent temperature controlled fan. Not only is it easy to operate and supports multiple panel settings, but most importantly, it also has a reasonable price. With these advantages, the MPD series is bound to become a shining new star in the power supply market.
Main Features:
3CH, 4CH independent output, and continuously adjustable
6 sets of LED displays: voltage/power to three decimal places, current to four decimal places
Resolution: 1mV/0.1mA/1mW
Digital panel control (rotary encoder switch, silicone buttons with indicator lights)
Friendly user operation, coarse/fine volume control
4 sets of save/retrieve
Lock key function
Output ON/OFF
Tracking series/parallel mode
Intelligent temperature-controlled fan, effectively reducing noise
Lightweight design
USB standard interface
Model | MPD-3303S | MPD-3303SA | MPD-4303S | ||||||||
Output | Channel | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH4 |
Voltage | 0~30V | 0~30V | 2.5/3.3/5.0V | 0~30V | 0~30V | 0-5V | 0~30V | 0~30V | 0-5Vor5.001V~10V | 0~5V | |
Current | 0~3A | 0~3A | 0~3A | 0~3A | 0~3A | 0~3A | 0~3A | 0~3A | 0~3Aor0~1A | 0~1A |
