Vector Network Analyzer Siglent SNA5002A 9kHz ~ 4.5GHz

Vector Network Analyzer Siglent SNA5002A 9kHz ~ 4.5GHz

SKU:
SNA5002A
Brand:
Warranty:
N/A
Price: Contact
  • Frequency Range:
  • Output Power:
  • Dynamic Range:
  • Please contact to check stock
  • There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

  • Tel: +84 2839 778 269 / 3601 6797
  • Email: sales@lidinco.com
  • Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

  • Tel: +84 222 730 0180
  • Email: bn@lidinco.com
  • Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam
  • Counseling Technical Counseling 100% Free
  • Shipping Free Shipping For 3.000.000vnd Order
Specification

Frequency range:‎ ‎9kHz ~ 4.5GHz

Port: 2

Frequency Resolution: ‎ 1Hz

‎Level Resolution: 0.05dB

IFBW Range: 10Hz ~ 3MHz

Set range of output level: -55dBm ~ +10dBm

Dynamic Range: 125dB

Dimensions: 378×284×126 mm

Weight: 5.5 kg

Description SNA5002A

Low noise floor and a wide dynamic range for accurate measurements

System Dynamic range, the difference between the measurement power available at the test port and the noise floor of the receiver is critical parameter of a VNA. The SIGLENT SNA5000A dynamic range is up to 125 dB@10 Hz IFBW, noise floor is down to -125 dBm/Hz, satisfies specific RF test requirements like test passband and out-of-band rejection of filters simultaneously.


Abundant measurements and display formats

SNA5000A supports scattering-parameter measurement, differential-parameter measurement, receiver measurement, time-domain parameter analysis, limit test, ripple test, enchanced time-domain parameter analysis (TDR).
There are shortcuts to add traces and windows to perform full 4 port S parameters measurements. Various kinds of display formats incluing Log Mag, Lin Mag, Phase, Delay, Smith, SWR, Polar provide convenience to analyze DUT transmission and reflection coefficients, SWR, impedance match, phase, delay. In antenna and filter manufacturing, reference trace and limit test is an efficiency booster for production.

Enhanced Time-Domain Analysis (TDR)
The SNA5000A TDR option contains two parts: TDR/TDT(Time Domain Reflection/Transmission) and Eye/Mask.
TDR intuitively display impedance discontinuous position and characteristics. It can indicate the impedance of every point along the transmission line, helps to locate fault points. With time domain gating, easily eliminate influences of some kinds of mismatch. It helps to analyze the influences of malfunctions to DUT characteristics.

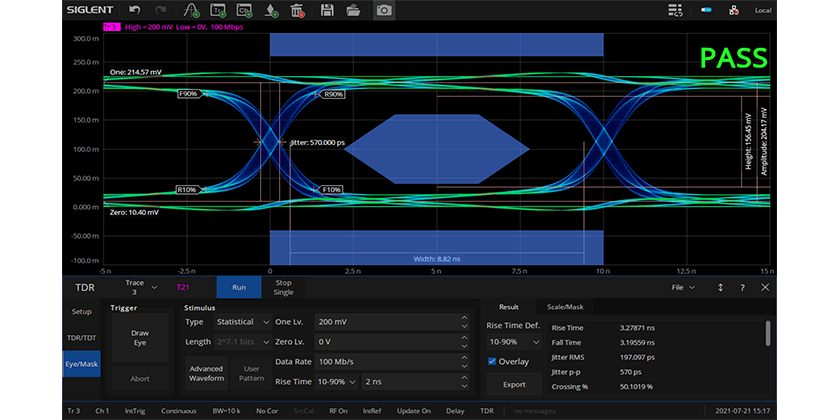

Without the need of an external generator, it can generate eye diagram with internal virtual pattern generator. Eye/Mask is a genuine signal integration analysis tool.
Eye function provides high performance waveform simulation ability. Without need to change external connections, it can easily improve signal transmission quality at the transmit end with application of pre-emphasis/de-emphasis technology, while at receive end the equalization technique.
Eye function also provides jitter injection function to simulate signals with jitter and to see what effects can it bring to signal transmission.



Accessories

– USB Cable

– Power cord

– Certificate of calibration

– SNA5000A Quick Start

– Wireless Mouse

– Protective Cover
