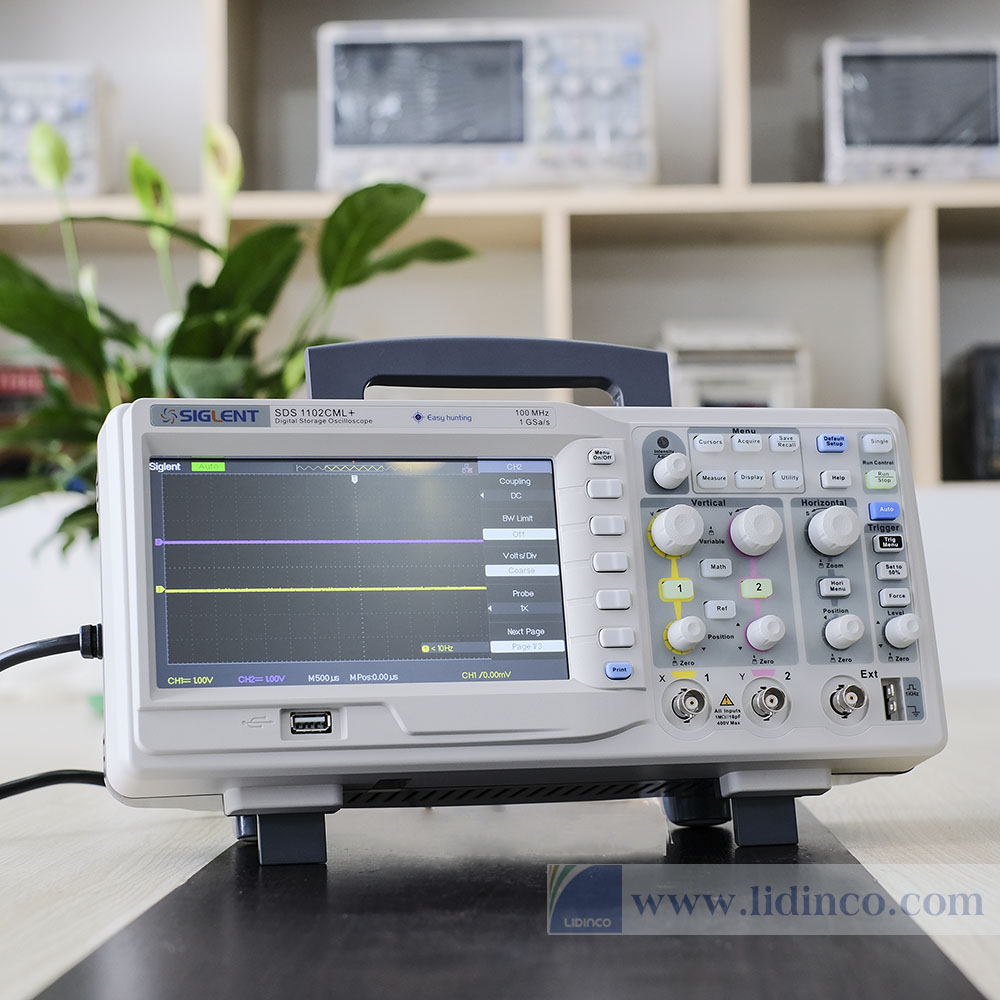

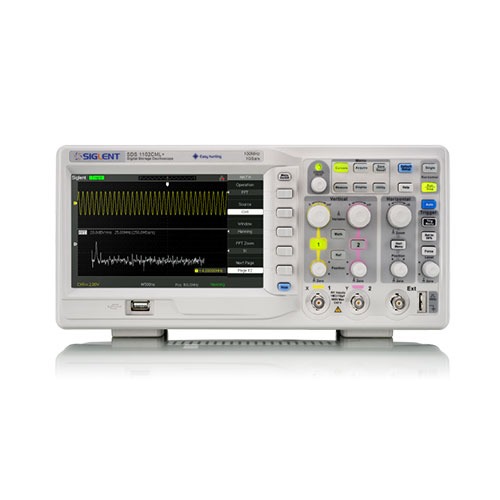

Digital Oscilloscope Siglent SDS1102CML+, 100 MHz, 2 Channels
Digital Oscilloscope Siglent SDS1102CML+, 100 MHz, 2 Channels
(Price does not include VAT)
-
Bandwidth:
-
Sampling Rate:
-
Waveform Length:
-
Channels:
- Available: Please contact
- There are currently no promotions for this product
Hotline: +84 906 988 447
Head Office: Ho Chi Minh City
- Tel: +84 2839 778 269 / 3601 6797
- Email: [email protected]
- Add: 487 Cong Hoa Street, Tan Binh Ward, Ho Chi Minh City, Vietnam
Office: Bac Ninh City
- Tel: +84 222 730 0180
- Email: [email protected]
- Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh, Vietnam
-
Technical Counseling
100% Free
-
Free Shipping
For 3.000.000vnd Order
Bandwidth: 100 Mhz
Rise time: 3.5ns
Number of channels: 2 analog channels +1 channel Trigger (EXT)
Maximum sampling rate: 1Gsa/s
Recording length: 2Mpts
Input Impedance: 1MΩII17pF
Timebase Scale: 2.5 ns/div – 50 s/div
Resolution: 8bit
Trigger Type: Edge, Pulse, Video, Slope, Alternative
Math functions: +, -, ×, , FFT
Display: 7-inch TFT-LCD with 800*480 resolution,
Communication port: USB Device, USB Host, RS-232, Pass/Fail
Weight: 2.5KG
Dimensions: 323mm×157mm×135mm (W×H×D)
Description
Deep Memory Mode With One Button Zoom, See the Overall and Details at the Same Time
The SDS1102CML+/SDS1152CML+ have deep memory mode with memory depth up to 2 Mpts. And the SDS1000CML+/DL+ has the function of one button Zoom. It can zoom in the part of signal interested in and makes it extremely convenient to observe, measure and analyze the signal.
In deep memory mode, you can acquire longer signals at a higher sampling rate. And then use the one button Zoom function to quickly zoom in the interested part, ensuring fine waveform resolution.

Powerful Data Analysis and Save Capabilities
The SDS1000CML+/DL+ series supports 32 kinds of parameters measurement, relating to voltage, time and delay. You can configure 5 kinds of parameters to display at the screen bottom or to display all measurements at the same time.
The SDS1000CML+/DL+ series supports five kinds of mathematical operations: +, -, *, /, FFT. The results, waveform data and screenshots can be saved to the USB memory by simply press the Print button.
Abundant Interfaces and Remote Control
The interfaces supported by the SDS1000CML+/DL+ series include
-USB Host Save data and pictures to external USB memory
-USB Device Connect to PC and perform remote control via free EasyScope software
LAN (VXI-11) Provide internet capability to perform remote control such as send SCPI commands
Pass/Fail interface Output pulses during Pass/Fail test
