GRINDER/POLISHER Allied High Tech METPREP 4X™

Semi-Automatic Grinders/Polishers METPREP 3X™

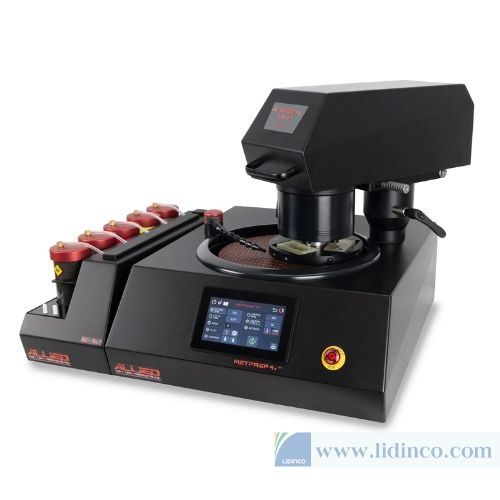

The NEW MetPrep 4x™ grinding and polishing machines, with the PH™ line of power heads, are powerful systems for semiautomatic operation, ideal for low to high volume sample preparation requirements. A wide variety of combinations provides ideal solutions that accommodate any lab, application, or material.

Intuitive menu navigation with a user-friendly LCD touchscreen interface make them easy to use and program. Ten (10) programmable sequences store up to ten (10) individual cycles including settings for platen speed, force mode, comp/contra rotation (sample holder/ platen), cycle time, fluid selection, sample force (LbF or N), sample rotation speed, water rinse and force reduction (on/off, %).

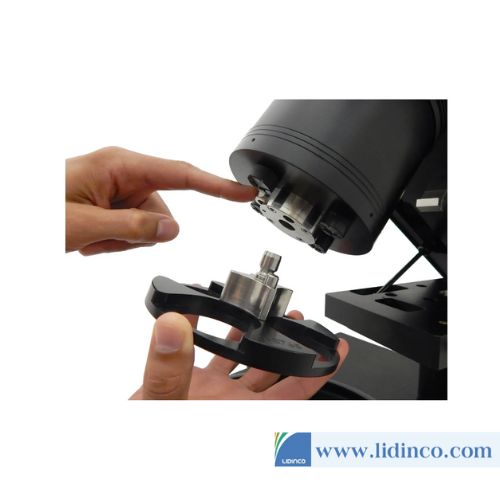

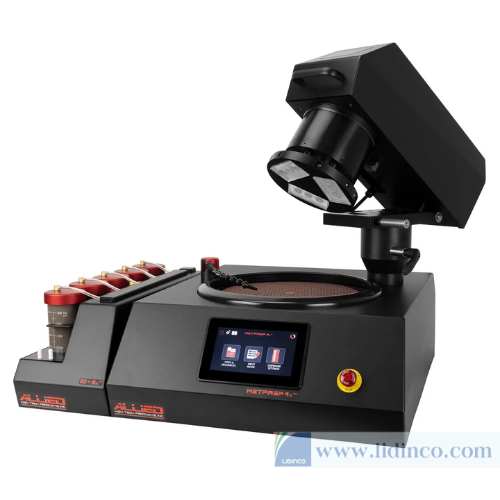

The PH-4™/PH-6™ power heads offer maximum versatility for low to high volume semi-automatic sample preparation, using either central or individual sample force modes. The pneumatic-electric system provides controlled sample force and allows up to 12 samples to be prepared simultaneously, depending on power head, mount diameter, and holder size. The unique tilt-up design allows easy, unhindered access to the sample holder and platen, and eliminates the need to reposition the head during the preparation procedure.

Either standard or magnetic platens may be used with any plain/adhesive backed or magnetic system disc.

FEATURES

• Programmable parameters include: platen speed, force mode, comp/contra rotation (sample holder/platen), cycle time, fluid selection, sample force (LbF or N), sample rotation speed, water rinse and force reduction (on/off, %)
• Ten (10) programmable sequences store up to ten (10) individual cycles
• Powerful, quiet 2.0 HP (1470 W) Brushless DC motor that provides constant high torque output throughout the speed range
• Electronic coolant control with adjustable flow control valve

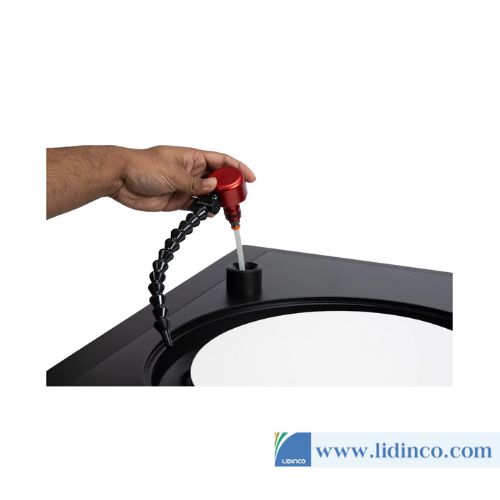

• Adjustable, pivoting coolant nozzle allows quick and easy sample/bowl cleaning
• Seamless integration with optional ID-5x™ or RD-5x™ Fluid Dispenser for automatic operation
• Emergency shut-off switch
• 7" Color LCD touchscreen with keypad entry to control all functions, with adjustable units (lb/N)
• Molded one-piece corrosion resistant cover
• Quick-change platen design, anodized to resist wear and corrosion
• Sturdy RIM, aluminum and stainless steel construction with low-profile design
• Variable platen and jog speed: 50-400 RPM (10 RPM increments)
• Overflow diversion to protect internal components
