Allied's high-volume Printed Circuit Board (PCB) microsectioning and analysis solution makes it easy to prepare and document high-volume microsections for compliance with IPC standards.

From pin insertion and mounting to grinding/polishing to an automated measurement and archiving system, Allied provides a complete solution.

FEATURES

PCB Test Coupon Microsectioning Preparation Kit

High-volume preparation of up to fifty-four (54) multi-layer coupons	For coupons with a 2 mm or 0.094" Ø hole (uses 50 mm L pin)
Complies with IPC TM-650, No. 2.1.1, Rev. F, Method B	Universal design adapts to non-Allied Machines with Drive Adapter

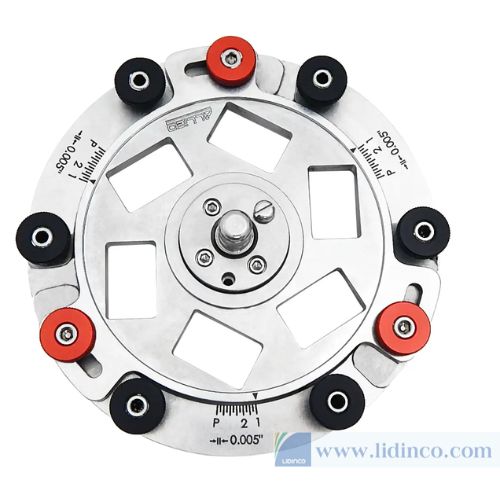

Includes Pin Insertion Press for PCB/Coupon Preparation System	Includes PCB Sample Holder with Adjustable Carbide Stops, 6-position
Includes Carbide Stop Height Gauge Assembly for setting carbide stop height of PCB Sample Holder	Use with MetPrep 4™ PCB Grinder/Polisher with PH-4c™ Power Head

MetPrep 4 PCB Grinder/Polisher with PH-4c Power Head (Power Head Specs Below)

Designed for use with Allied’s PCB Microsectioning Kit	Soft-start/stop force control
Unique tilt-up feature for easy access to platen and holder	Simple push-button attachment and removal of sample holders
Quick-lock system allows sample holder positioning across entire platen surface	Safety sensor that stops operation if power head is tilted up
Variable rotation speed: 0-150 RPM (10 RPM increments)	0.25 HP (190 W) motor with durable reduction gearbox for constant high torque output
Central force functionality
Comp and contra rotation	Designed & manufactured by Allied in the USA
