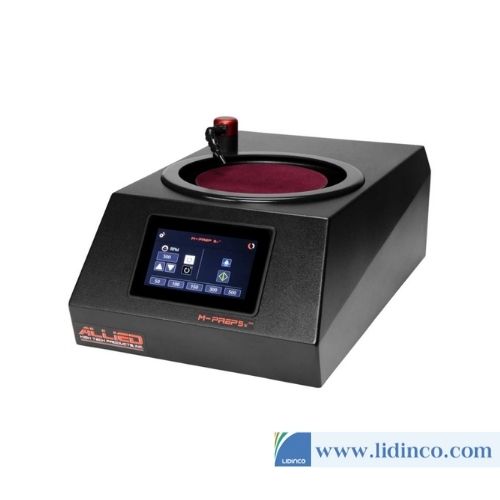

The M-Prep 5x™ grinding/polishing machine is designed for manual sample preparation. The powerful, quiet motor provides constant high-torque output throughout the speed range, in either 10-500 or 20-1,000 RPM configurations. The 7" color LCD touchscreen with keypad entry is used to control all functions with an intuitive interface optimized for efficiency. Five (5) user-defined preset buttons allow quick and easy RPM selections in either clockwise or counterclockwise rotation.

Durable: Engineered and constructed using precision machined, hard-anodized aluminum and stainless steel components to provide maximum longevity.

Easy to use: Straightforward controls and user-friendly functions for quick, repeatable operation.

Either standard or magnetic 8"/203 mm or 10"/254 mm platens may be used with any plain/adhesive backed or magnetic system disc.


Variable platen speed: either 10-500 or 20-1000 RPM (in increments of 10 RPM) with five (5) adjustable preset buttons  7" color LCD touchscreen with keypad entry to control all functions
Powerful, quiet 0.6 HP (470 W) Brushless DC motor provides constant high-torque output throughout the speed range Intuitive interface optimized for efficiency and function
Quick-change platen design, anodized to resist wear and corrosion Sturdy RIM, aluminum and stainless steel construction
Clockwise/counterclockwise platen rotation Molded one-piece corrosion and impact resistant cover
Retractable coolant nozzle that allows quick and easy sample/bowl cleaning Electronic coolant control with adjustable flow control valve
Low profile tabletop design Overflow diversion to protect internal components
Dimensions: 15" W x 28" D x 9" H (381 x 711 x 229 mm) Two (2) year warranty
Weight: 58 lb. (26 kg) CE Compliant for EU
Designed & manufactured by Allied in the USA



  • Splash Ring and Platen Cover
  •  Platens Sold Separately
