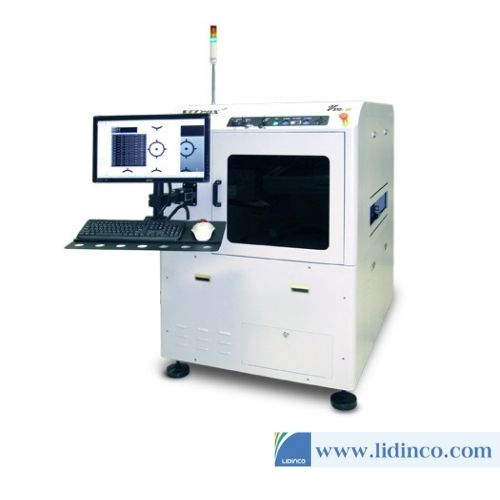

Vitrox V510i G2S Advanced Optical Inspection (AOI)

Vitrox V510i G2S Advanced Optical Inspection (AOI)

SKU:
Vitrox V510i G2S
Brand:
Warranty:
N/A
Price: Contact
  • Please contact to check stock
  • There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

  • Tel: +84 2839 778 269 / 3601 6797
  • Email: sales@lidinco.com
  • Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

  • Tel: +84 222 730 0180
  • Email: bn@lidinco.com
  • Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam
  • Counseling Technical Counseling 100% Free
  • Shipping Free Shipping For 3.000.000vnd Order
Specification

Data is being updated

Description AOI Vitrox V510i G2S

AOI ViTrox has introduced the G2S Series of its V510i Advanced Optical Inspection (AOI) soluton.
The V510i G2S Series offers powerful technologies and high throughput productivity for SMT production line.

Note  V510i

SystemV510i G2S
System Performances
2D Inspection FunctionsMissing, Offset, Skewed, Polarity, Billboard, Tombstone, Lifted/Bent Leads, Excess/Insufficient Solder, Overturn, Bridging, Wrong Part (OCV Marking), Pin Through Hole (Solderability & Pin Detection)
Board & Component Level TracebilityCamera-Read Barcodes; External Barcode Reader Configured; OCR Capability with Batch Code Logging
System Hardware
Operating SystemWindows 10 Pro (64 bit)
Camera & FOV Size4MP Camera Link Camera 38.5mmx38.5mm @ 19μm resolution
12MP Camera Link Camera 60mm x 45mm @ 15μm resolution
Optical ResolutionDefault: Scalable from 21μm to 8μm for 01005 inspection
Inspection Speed4MP @ 19μm resolution: 40-55cm²/sec
3D TechnologiesN/A
Lighting ModuleMultiple Color, Multiple Angle, Multiple Segment LED Lighting Head, Auto Calibration
X-Y Gantry SystemGantry Robot Systems with Linear Motor and Optical Linear Encoders
Conveyor Width AdjustmentAuto Width Adjustment; Bottom-Up Clamping; In-line SMEMA
