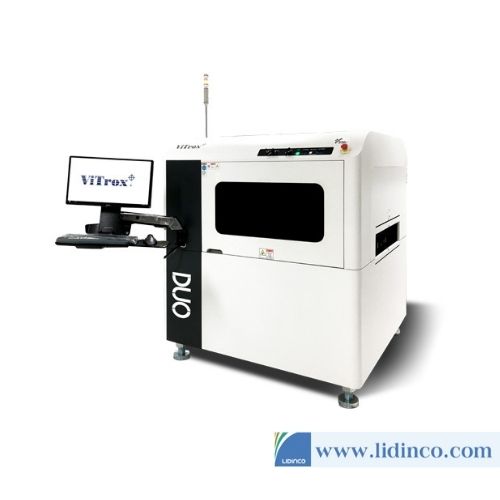

Vitrox V510i DUO Advanced Optical Inspection (AOI)

Vitrox V510i DUO Advanced Optical Inspection (AOI)

SKU:
V510i DOU
Brand:
Warranty:
N/A
Price: Contact
  • Please contact to check stock
  • There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

  • Tel: +84 2839 778 269 / 3601 6797
  • Email: sales@lidinco.com
  • Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

  • Tel: +84 222 730 0180
  • Email: bn@lidinco.com
  • Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam
  • Counseling Technical Counseling 100% Free
  • Shipping Free Shipping For 3.000.000vnd Order
Specification

Data is being updated

Description AOI Vitrox V510i DOU

AOI   Vitrox V510i DOU

Note V510i

Inspection Functions : Missing, Offset, Skewed, Polarity, Billboard, Tombstone, Lifted/Bent Leads, Excess/Insufficient Solder, Overturn, Bridging, Wrong Part (OCV Marking), Pin Through Hole (Solderability & Pin Detection), Package Coplanarity, Lifted Lead (Height Measurement), Foreign Material Detection, Polarity Dimple Measurement


Board Level Tracebility : Camera-Read Barcodes; External Barcode Reader Configured; OCR Capability with Batch Code Logging


System Hardware


Operating System Windows 10 Pro (64 bit)



Optical Resolution & FOV Size :

    - 12MP CoaXPress Camera


    - Default: 60 x 45 mm @ 15 µm telecentric lens*


    - Option: 53 x 39 mm @ 13 µm telecentric lens*


Inspection Speed : 12MP @ 15μm resolution: 45-60cm²/sec


3D Technologies : Phase Shift Profilometry’s (PSP) Methodology with 4-way projectors
Lighting Module : Concurrent Lighting Module


Conveyor Width Adjustment : Auto Width Adjustment; Bottom-Up Clamping; In-line SMEMA
