Vitrox V810i S2 XLL Advanced 3D X-ray Inspection System

Vitrox V810i S2 XLL Advanced 3D X-ray Inspection System

SKU:
V810i S2 XLL
Brand:
Warranty:
N/A
Price: Contact
  • Please contact to check stock
  • There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

  • Tel: +84 2839 778 269 / 3601 6797
  • Email: sales@lidinco.com
  • Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

  • Tel: +84 222 730 0180
  • Email: bn@lidinco.com
  • Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam
  • Counseling Technical Counseling 100% Free
  • Shipping Free Shipping For 3.000.000vnd Order
Specification

Data is being updated

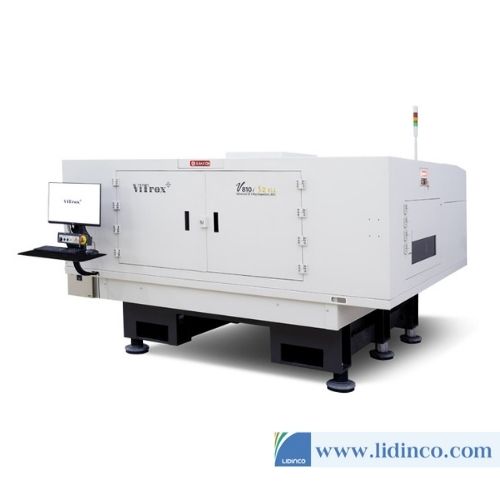

Description X-Ray V810i S2 XLL

 X-Ray V810i S2 XLL

Increased inspection coverage for large board up to 47.24" x 26" coupled with latest vision technologies.

Note V810i S2

System controller : Integrated controller with 8 Core Intel Xeon processors
Operating system : Windows 10 (64 bits)


Test Development Environment


User interface : Microsoft Windows based software solution with easy-to-use GUI and password-protected user levels


Off-line test development software : Optional for off-line PC


CAD conversion tool : Support 4 different types of CAD in V810i software and optional software available to translate other CAD data to ViTrox's format


Typical test development time  : 4 hours to 1.5 days to convert raw CAD file and develop application


Line Integration


Transport heights : 865 mm - 1025 mm


Line communication standard :  SMEMA, HERMES


Barcode readers : Compatible with most industry standard barcode readers


Performance Parameters*


Typical image acquisition rate : 51.68 cm²/sec (8 in²/sec) at 19um


False Call rate : 500 - 1000 ppm


Minimum features detection capability


Joint pitch1 :  0.3 mm and above


Short width2 :  0.045 mm


Solder thickness : 0.0127 mm



Accessories
