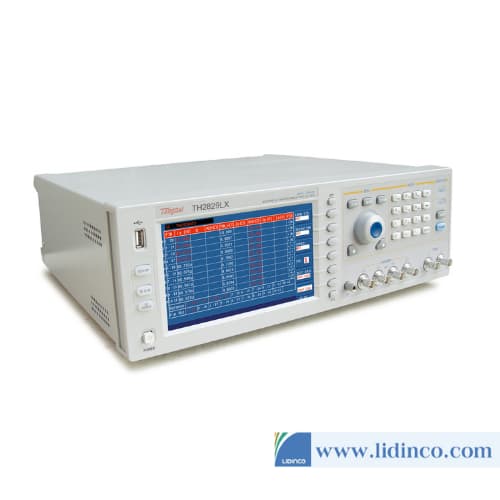

TH2829LX Automatic Transformer Test System

TH2829LX Automatic Transformer Test System

SKU:
TH2829LX
Brand:
Warranty:
N/A
Price: Contact
  • Available: Please contact
  • There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

  • Tel: +84 2839 778 269 / 3601 6797
  • Email: sales@lidinco.com
  • Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

  • Tel: +84 222 730 0180
  • Email: bn@lidinco.com
  • Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam
  • Counseling Technical Counseling 100% Free
  • Shipping Free Shipping For 3.000.000vnd Order
Specification

Test Pin(PIN): 20

Test Frequency: 20Hz — 200kHz

Display: 800×RGB×480  7 inch TFT LCD display

LCR: Function option

Transformer test parameters: Turn Ratio, Turns, Phase, L, C, Lk, Q, ACR, DCR, Balance, Pin Short, Diode P/N

LCR Test Parameters: |Z|,Y|, C, L, X, B, R, G, D, Q, θ, DCR, Turn-Ratio, Phase, Lk

Basic Test Accuracy
LCRZ 0.05%
DCR、Turn Ratio 0.1%

Signal Source Output Impedance: 10Ω、30Ω、50Ω、100Ω

Test Speed (ms/times): 13ms, 90 ms, 370 ms

AC Signal Level: 5mVrms — 2Vrms(transformer test, can be customized to 10Vrms), 5mVrms — 10Vrms(LCR function);50μArms — 100mArms

DC Bias Current Source: 0 — ±1A option(option TH2901) / 0 — ±2A option(option TH2902)

DC Constant Current Source: 0mA – ±120mA for diode forward characteristic test

Diode Test
forward test voltage 0 — 9.9999 V
Reverse test current 0 — 99.999 mA

Comparator: 10 bins, PASS/FAIL indication, file counting function

Storage: Internal: 100 sets of configuration file;U disk: 500 sets of configuration files, CSV format test data, GIF format images


Application:

■ Switching transformer scanning test, comprehensive characteristics analysis.

■ Network transformer scanning test, comprehensive characteristics analysis

■ Discrete passive components (L, R, C) multi-channel scanning test

■ Relay drive line package, contact resistance multi-channel scanning test

■ Multi-channel DC resistance DCR scanning test

■ Comprehensive test analysis of multiple passive components in impedance network

Specifications of TH2829LX Automatic Transformer Test System:

ModelTH2829LXTH2829AXTH2829AX-24TH2829AX-48TH2829NXTH2829CX
Test Pin(PIN)2020244872/96/120/144/168/19220
Test Frequency20Hz — 200kHz20Hz — 1MHz
Display800×RGB×480  7 inch TFT LCD display
LCR Functionoption
Transformer test parametersTurn Ratio, Turns, Phase, L, C, Lk, Q, ACR, DCR, Balance, Pin Short, Diode P/N
LCR Test Parameters|Z|,Y|, C, L, X, B, R, G, D, Q, θ, DCR, Turn-Ratio, Phase, Lk
Basic Test AccuracyLCRZ0.05%
DCR、Turn Ratio0.1%
Signal Source Output Impedance10Ω、30Ω、50Ω、100Ω
Test Speed (ms/times)13ms, 90 ms, 370 ms
AC Signal Level5mVrms — 2Vrms(transformer test, can be customized to 10Vrms), 5mVrms — 10Vrms(LCR function);50μArms — 100mArms
DC Bias Voltage Source——0V — ± 10V;0mA — ± 100mA
DC Bias Current Source0 — ±1A option(option TH2901) / 0 — ±2A option(option TH2902)
DC Constant Current Source0mA – ±120mA for diode forward characteristic test
Diode Testforward test voltage0 — 9.9999 V
Reverse test current0 — 99.999 mA
Comparator10 bins, PASS/FAIL indication, file counting function
StorageInternal: 100 sets of configuration file;U disk: 500 sets of configuration files, CSV format test data, GIF format images
