Brief Introduction

TH2816B is a new precision LCR meter combined with years of technical experience and newest measurement technology of instrument industry. With powerful measurement functions, high performance and low cost, TH2816B has been one of the world advanced instruments, and it provides users a super value measurement resolution and experience. The meter offers stable 6 digit resolution, wide frequency range ( 50Hz to 200kHz for TH2816AB), programmable signal level (0.01V to 2.0V), up to 30 meas/sec measurement rate, 9 measurement ranges, 30Ω or 100Ω constant output impedance and friendly operation interface. TH2816B can be used for incoming inspection of components, quality control of product line and high accuracy laboratory use. The HANDLER, GPIB, RS232C interfaces make it easy to build an automatic component test system,

Application

■ Passive components:
Evaluation of Impedance Parameters for Capacitors, Inductors, Cores, Resistors, piezoelectric devices, Transformers, Chip Components, and Network Components■ Other components:
Impedance evaluation of printed circuit boards, relays, switches, cables, batteries, etc

Model	TH2816A TH2816B
Measurement Function
Test Parameter	\|Z\|, C, L, X, B, R, G, D, Q, θ
Basic Accuracy	TH2816A: 0.05% TH2816B: 0.1%
Equivalent Circuit	Series and Parallel
Math Function	Deviation and Percent Deviation
Ranging Mode	Auto, Hold
Trigger Mode	Internal, Manual, External and Bus
Measuring Speed	Slow: 1.5meas/sec Med: 10meas/sec Fast: 30meas/sec
Correction Function	Open, Short and Load corrections

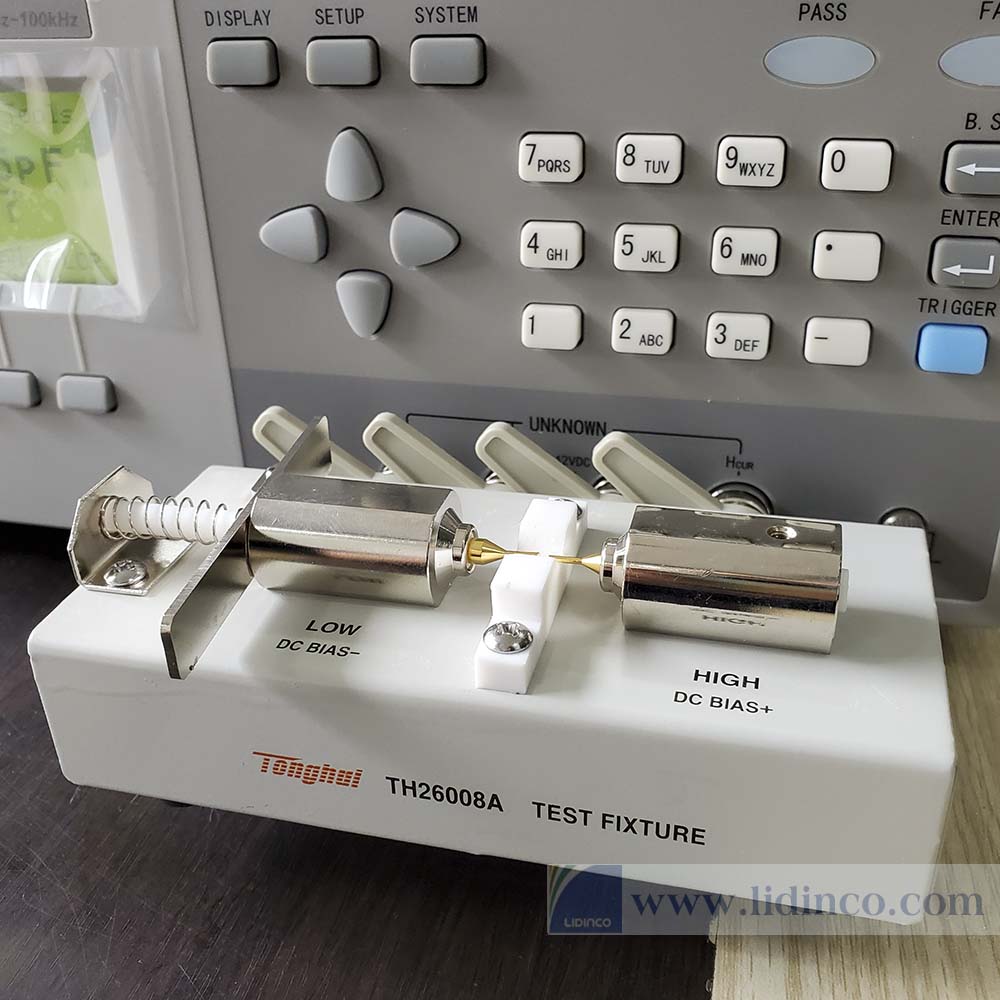

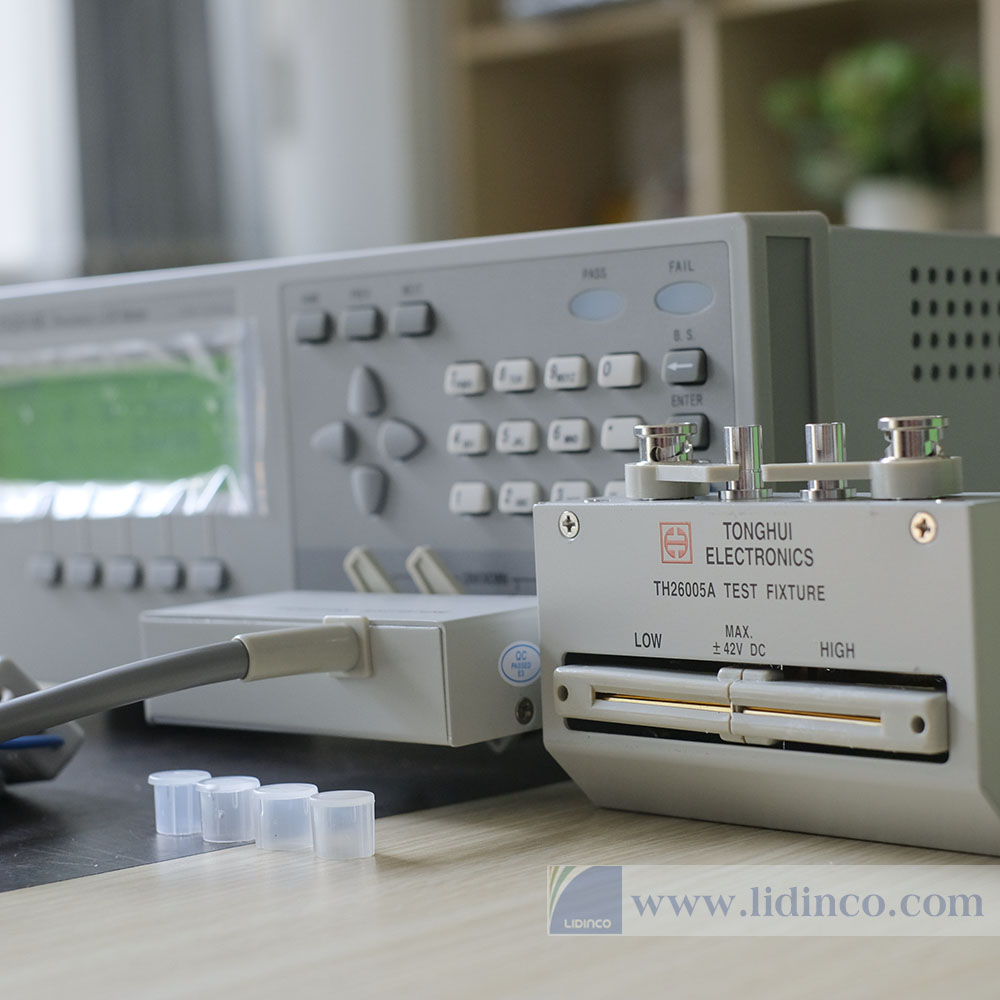

Measurement Terminal	5 terminals
Averaging Rate	1—255 , TH2816A/TH2817A only
Delay Time	0—60sec , with step of 1ms
List Sweep	List sweep for up to 4 frequencies, signal levels and DC bias levels
Display Mode	Direct, ΔABS, Δ%, V/I( V/I monitor), Bin number and bin counter
Display	240×64 dot-matrix LCD display, 6-digit resolution
Test Signal
Signal Frequency	50Hz to 200kHz over 12,000 points
Output Impedance	30Ω , 100Ω
Test Level	10mVrms to 2.0Vrms, 10mV steps
θ(RAD)	-3.14159 — 3.14159
Δ%	-999.999% — 999.999%
Comparator, memory & interface
Comparator Function	Bins(BIN1 to BIN9 , OUT of bins), and additional AUX bin
Memory	Control settings memory for store/recall
Interface	RS-232C, HANDLER, GPIB (Optional)
Measurement Display Range
\|Z\|, R,X	0.00001Ω — 99.9999MΩ
C	0.00001pF — 999.999mF
L	0.00001μH — 9.99999kH
G,B	0.00001μS — 999.999S
D	0.00001 — 9.99999
Q	0.00001 — 99999.9
θ(DEG)	-179.999º — 179.999º
