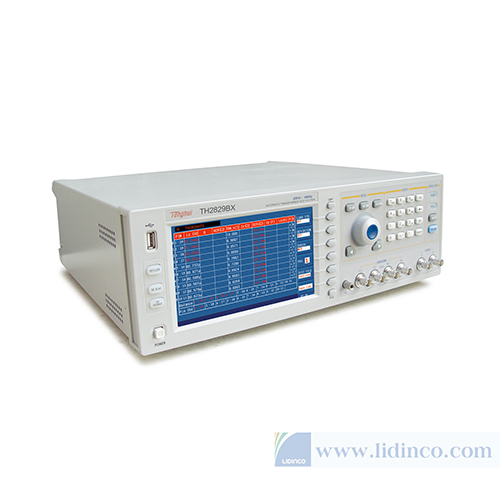

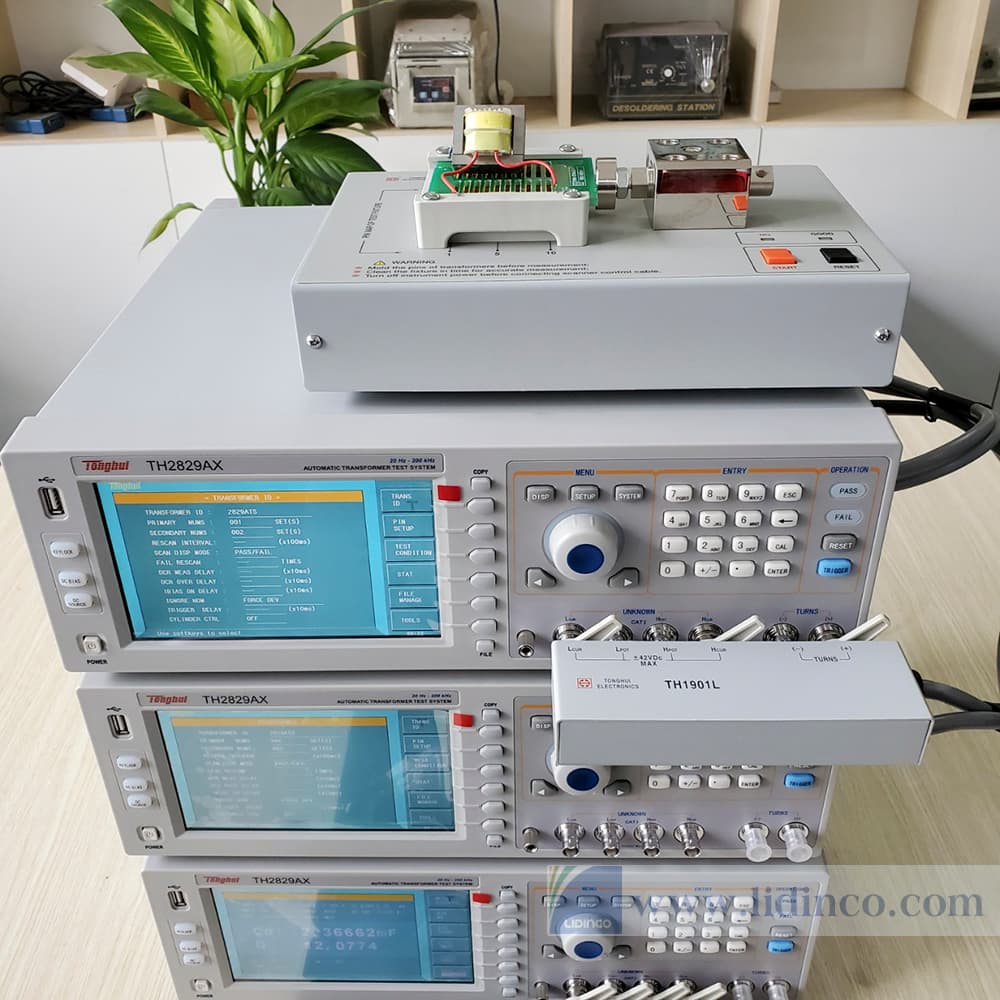

Automatic Transformer Test System Tonghui TH2829AX-24

Name: Automatic Transformer Test System Tonghui TH2829AX-24
Brand: Tonghui
SKU: TH2829AX-24
Price: 0VND VND
Availability: InStock
Rating: 0.00 (0 reviews)

SKU:

TH2829AX-24

0 ratings

Brand:

Tonghui

Warranty:

N/A

Price: Contact

Please contact to check stock

Request a quote

There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

Tel: +84 2839 778 269 / 3601 6797
Email: sales@lidinco.com
Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

Tel: +84 222 730 0180
Email: bn@lidinco.com
Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam

Technical Counseling 100% Free
Free Shipping For 3.000.000vnd Order

Specification

Data is being updated

Description product
Accessories

Performance characteristics

Number of Test PIN: 24
Frequency: 20Hz-200kHz, Resolution: 0.5mHz
Signal Level: 5mV-2Vrms(Option:2mV-10Vrms)
Test Speed: max. 13ms
7-inch TFT LCD display with a resolution of 800×RGB×480
Built-in 0-100mA/0-10V bias power supply, optional 1A/2A bias current source
Diode forward and reverse characteristic detection
Improved high turns ratio and weakly coupled transformer test capability
Improved DCR testing capabilities
Single screen can accommodate all scan test results
Sort the selected scanning parameters
Time stamping system: memory file setting, calibration deviation and deduction time
Self-test scanning fixture relays
Flexible deviation deduction method
Multiple handling ways for FAIL cases
Single parameter test cycle to test independent windings
Increased security: administrator and operator passwords
Built-in statistical analysis capabilities: Cpk, Cp, Ck, etc.
Bar-code reading function can be used to select a setting fill or to manage the type of test products
Optional PC-level instrument test setup file programming capability
Online upgrade mode: USBHOST or RS232
Support multiple instrument networking through LAN interface
Backward compatible with TH2818X/TH2819X parameter setting file
Storage: Internal: 100 groups of settings file to save U disk: 500 groups of configuration files, CSV format test data, GIF format image

Application

Switching transformer scanning test, comprehensive characteristics analysis.
Network transformer scanning test, comprehensive characteristics analysis
Discrete passive components (L, R, C) multi-channel scanning test
Relay drive line package, contact resistance multi-channel scanning test
Multi-channel DC resistance DCR scanning test
Comprehensive test analysis of multiple passive components in impedance network

Technical Parameter

Model	TH2829LX	TH2829AX	TH2829AX-24	TH2829AX-48	TH2829NX	TH2829CX
Test Pin(PIN)	20	20	24	48	72/96/120/144/168/192	20
Test Frequency	20Hz — 200kHz					20Hz — 1MHz
Display	800×RGB×480 7 inch TFT LCD display
LCR Function	option
Transformer test parameters	Turn Ratio, Turns, Phase, L, C, Lk, Q, ACR, DCR, Balance, Pin Short, Diode P/N
LCR Test Parameters	\|Z\|,Y\|, C, L, X, B, R, G, D, Q, θ, DCR, Turn-Ratio, Phase, Lk
Basic Test Accuracy	LCRZ		0.05%
	DCR、Turn Ratio		0.1%
Signal Source Output Impedance	10Ω、30Ω、50Ω、100Ω
Test Speed (ms/times)	13ms, 90 ms, 370 ms
AC Signal Level	5mVrms — 2Vrms(transformer test, can be customized to 10Vrms), 5mVrms — 10Vrms(LCR function)；50μArms — 100mArms
DC Bias Voltage Source	——	0V — ± 10V；0mA — ± 100mA
DC Bias Current Source	0 — ±1A option(option TH2901) / 0 — ±2A option(option TH2902)
DC Constant Current Source	0mA – ±120mA for diode forward characteristic test
Diode Test	forward test voltage		0 — 9.9999 V
	Reverse test current		0 — 99.999 mA
Comparator	10 bins, PASS/FAIL indication, file counting function
Storage	Internal: 100 sets of configuration file;U disk: 500 sets of configuration files, CSV format test data, GIF format images

Accessary

Standard
Accessories name	Model
Test line at both ends	TH26004B
Foot switch	TH2829AX-001
Kelvin test lead with box four-terminal insulation and lock	TH26011AS
