Coordinate Measuring Machines Mitutoyo FALCIO-Apex 3000G

Name: Coordinate Measuring Machines Mitutoyo FALCIO-Apex 3000G
Brand: Mitutoyo
SKU: FALCIO-Apex 3000G
Price: 0VND VND
Availability: InStock
Rating: 0.00 (0 reviews)

SKU:

FALCIO-Apex 3000G

0 ratings

Brand:

Mitutoyo

Warranty:

N/A

Price: Contact

Please contact to check stock

Request a quote

There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

Tel: +84 2839 778 269 / 3601 6797
Email: sales@lidinco.com
Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

Tel: +84 222 730 0180
Email: bn@lidinco.com
Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam

Technical Counseling 100% Free
Free Shipping For 3.000.000vnd Order

Specification

Data is being updated

Description product
Accessories

Description

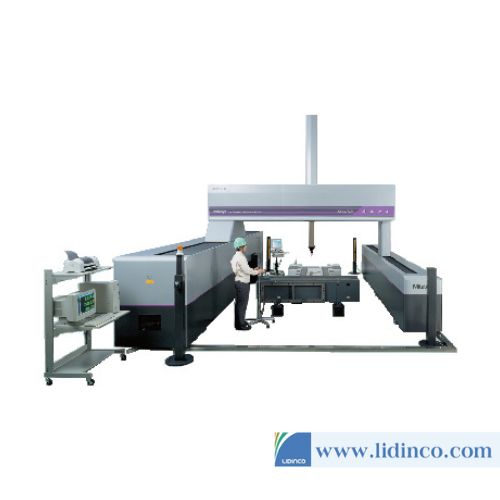

The Mitutoyo FALCIO Apex series of CNC Coordinate Measuring Machines are designed for measuring large, heavy workpieces with high-accuracy. The measuring accuracy and drive speed in the X-axis measuring range of 2000 mm and 4500 mm are the highest level performing CNC CMMs worldwide. A MOVAC (Mitutoyo Onsite Volumetric Accuracy Compensation), system automatically restores accuracy deterioration caused by foundation deformation as a standard feature.

MOVAC system is standard
X-Axis range measuring range available in 2000, 3000, 4000, or 4500 mm
Y-Axis range measuring range available in 3000, 4000, 5000, or 6000 mm
Z-Axis range measuring range available in 1200, 1500, or 2000 mm
Optional Z-axis beam sensor, tape switch and area sensor are standard safety features of the FALCIO-Apex
Attains a max drive speed of 500mm/s while maintaining high-accuracy measurements
FALCIO-Apex CMMs are built to order and can be configured with or without a workpiece table
Temperature compensation guarantees accuracy within the range of 18 to 22°C without a temp-controlled room

Model:	Range X-Axis:	Range Y-Axis:	Range Z-Axis:	Worktable Size:	Workpiece Max Height:	Workpiece Max Load:	Machine Mass:	Machine Dimensions:
FALCIO Apex 303012G	78.74" (3000mm)	118.11" (3000mm)	47.24" (1200mm)	Custom	62.99" (1600mm)	Custom	23,986lbs (10880kg)	213.78x234.25x 161.42" (5430x5950x4100mm)
FALCIO Apex 303015G	78.74" (3000mm)	118.11" (3000mm)	59.05" (1500mm)	Custom	74.80" (1900mm)	Custom	25,250lbs (11000kg)	213.78x234.25x 184.65" (5430x5950x4690mm)
FALCIO Apex 303020G	78.74" (3000mm)	118.11" (3000mm)	78.74" (2000mm)	Custom	94.49" (2400mm)	Custom	24,691lbs (11200kg)	213.78x234.25x 184.65" (5430x5950x4690mm)
FALCIO Apex 304012G	78.74" (3000mm)	157.48" (4000mm)	47.24" (1200mm)	Custom	62.99" (1600mm)	Custom	28,395lbs (12,880kg)	213.78x234.25x 161.42" (5430x5950x4100mm)
FALCIO Apex 304015G	78.74" (3000mm)	157.48" (4000mm)	59.05" (1500mm)	Custom	74.80" (1900mm)	Custom	28,660lbs (13,000kg)	213.78x234.25x 184.65" (5430x5950x4690mm)
FALCIO Apex 304020G	78.74" (3000mm)	157.48" (4000mm)	78.74" (2000mm)	Custom	94.49" (2400mm)	Custom	29,101lbs (13,200kg)	213.78x234.25x 184.65" (5430x5950x4690mm)
FALCIO Apex 305012G	78.74" (3000mm)	196.85" (5000mm)	47.24" (1200mm)	Custom	62.99" (1600mm)	Custom	32,804lbs (14,880kg)	213.78x234.25x 161.42" (5430x5950x4100mm)
FALCIO Apex 305015G	78.74" (3000mm)	196.85" (5000mm)	59.05" (1500mm)	Custom	74.80" (1900mm)	Custom	33,069lbs (15,000kg)	213.78x234.25x 184.65" (5430x5950x4690mm)
FALCIO Apex 305020G	78.74" (3000mm)	196.85" (5000mm)	78.74" (2000mm)	Custom	94.49" (2400mm)	Custom	33,510lbs (15,200kg)	213.78x234.25x 184.65" (5430x5950x4690mm)
FALCIO Apex 306012G	78.74" (3000mm)	236.22" (6000mm)	47.24" (1200mm)	Custom	62.99" (1600mm)	Custom	37,214lbs (16,880kg)	213.78x234.25x 161.42" (5430x5950x4100mm)
FALCIO Apex 306015G	78.74" (3000mm)	236.22" (6000mm)	59.05" (1500mm)	Custom	74.80" (1900mm)	Custom	37,478lbs (17,000kg)	213.78x234.25x 184.65" (5430x5950x4690mm)
FALCIO Apex 306020G	78.74" (3000mm)	236.22" (6000mm)	78.74" (2000mm)	Custom	94.49" (2400mm)	Custom	37,919lbs (17,200kg)	213.78x234.25x 184.65" (5430x5950x4690mm)
