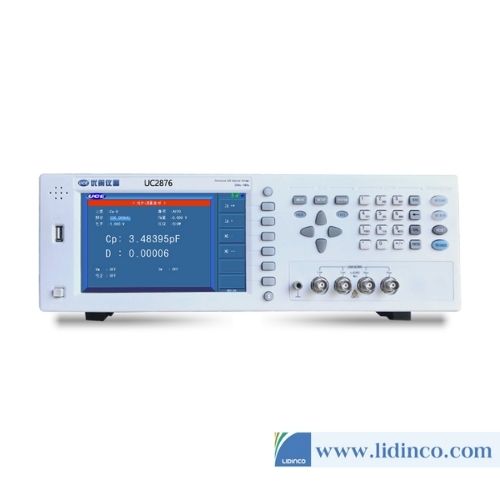

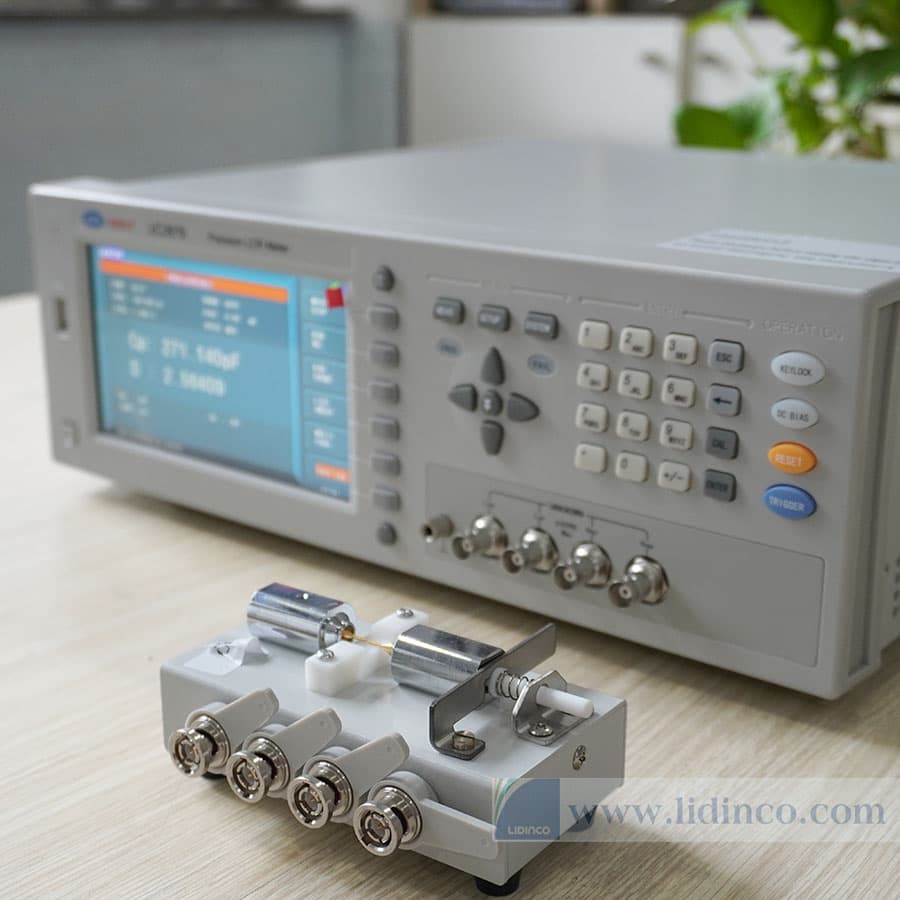

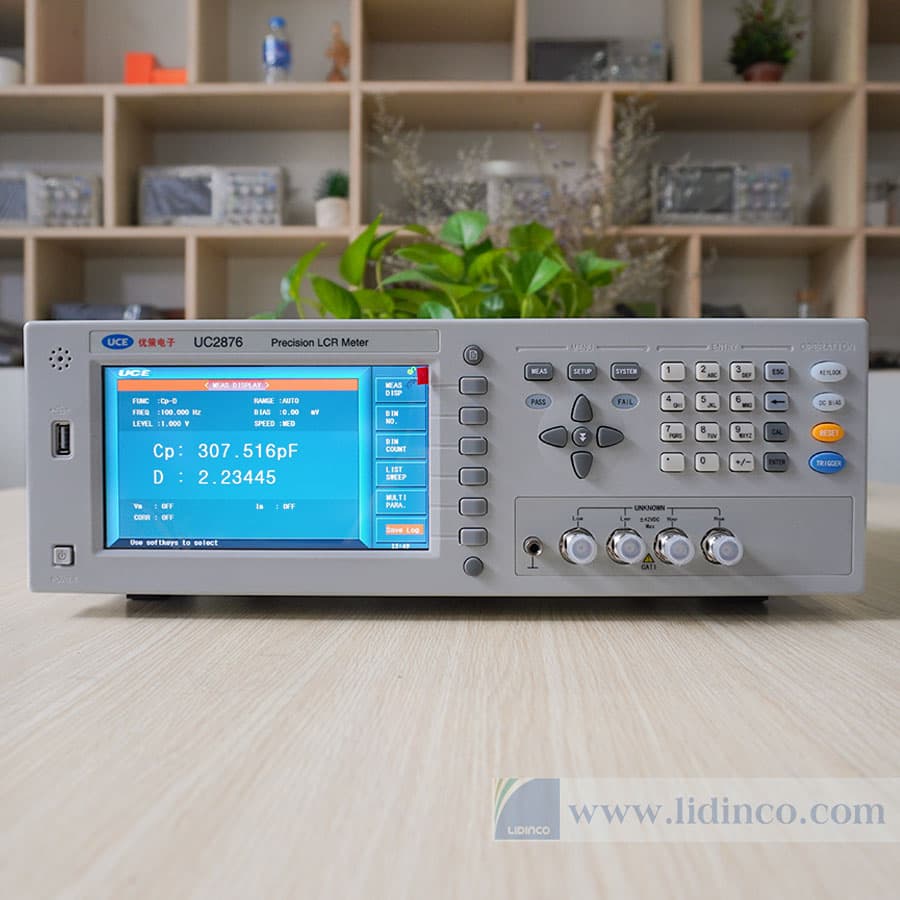

Bench LCR Meters UCE UC2877/2876

Description

The high-frequency precision bridge is a multi-functional component tester for the inspection of various electronic components. It adopts the popular 7-inch 800x480 color TFT LCD display, enabling users to read out test results more intuitively and comfortably. It is a high-speed, wide test range, 6-bit test resolution impedance measuring instrument that meets production line quality assurance, incoming goods inspection and laboratory measurement requirements.

Features

four-parameter display, any combination of parameters, up to 12 measurement parameters

7-INCH 16:9 TFT LCD MONITOR WITH A RESOLUTION OF 800×480 RGB

0.05% basic measurement accuracy, fast test speed (200 times/sec)

20Hz—5MHz test frequency, resolution 10 mHz

measurement speeds up to 200 times/s

TEST THE ALC FUNCTION OF AUTOMATIC LEVEL CONTROL OF VOLTAGE OR CURRENT

OUTPUT IMPEDANCES FROM FOUR DIFFERENT SOURCES: 30 Ω, 100 Ω, 50Ω, 10/CC

built-in comparator, 10-step sorting and file counting functions

frequency response curve plotting analysis function

10-point list scanning function,

INTERNAL -5V TO +5V DC BIAS VOLTAGE SOURCE

Optional ± 10V (±100mA) and 1 A internal DC bias source

THE INTERNAL 100 SETS OF SETTING FILES ARE SAVED OR CALLED, AND THE 500 GROUPS OF TEST FILES OF THE U DISK ARE SAVED OR CALLED

UPGRADES AND UPDATES TO INSTRUMENT SOFTWARE VERSIONS ARE AVAILABLE VIA USB HOST

USB STICK CAN SUPPORT THE FORMAT FAT16, FAT32 FILE SYSTEM

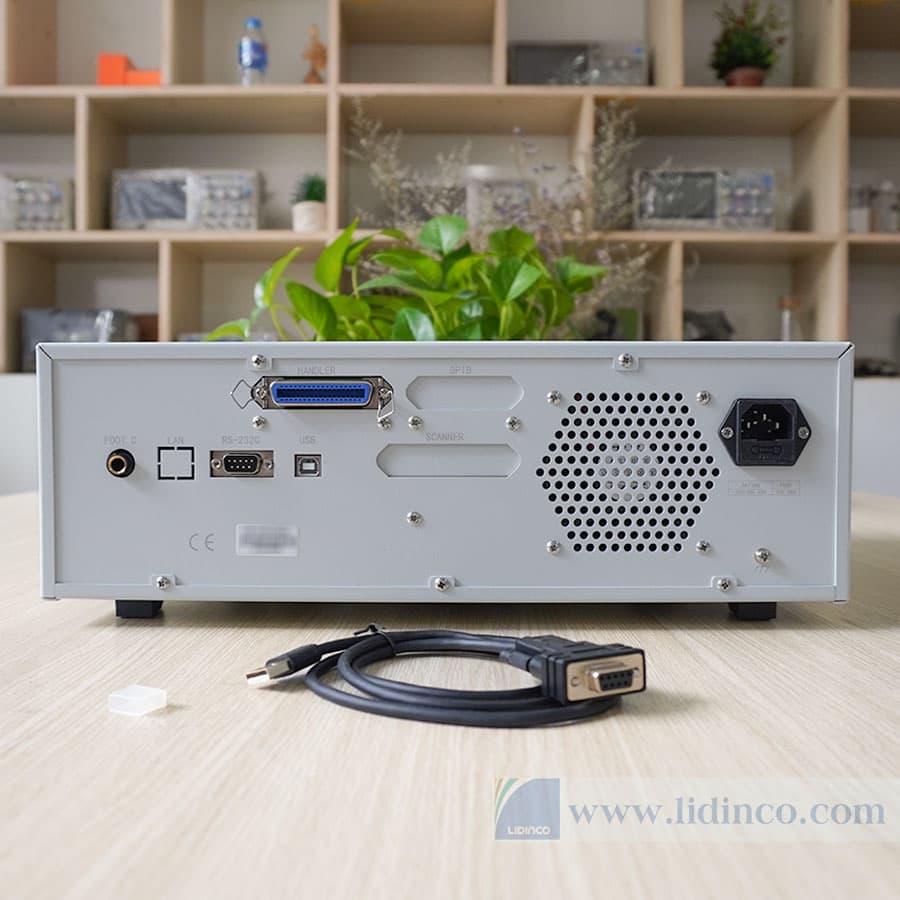

STANDARD RS232C, HANDLER, USB HOST, HEADPHONE JACK, OPTIONAL GPIB, LAN INTERFACE
