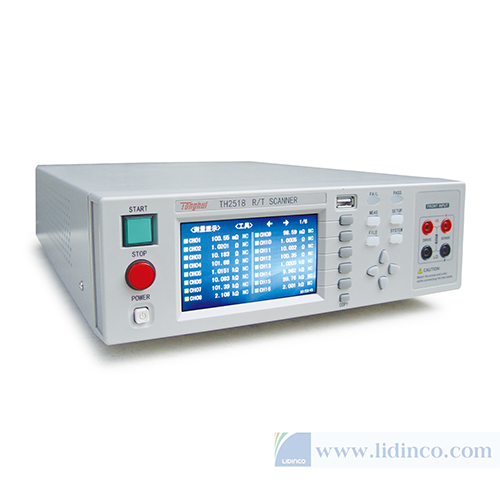

Resistance/Temperature Scanner TongHui TH2518

Resistance/Temperature Scanner TongHui TH2518

SKU:
TH2518
Brand:
Warranty:
N/A
Price: Contact
  • Resistance Range:
  • Accuracy:
  • Please contact to check stock
  • There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

  • Tel: +84 2839 778 269 / 3601 6797
  • Email: sales@lidinco.com
  • Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

  • Tel: +84 222 730 0180
  • Email: bn@lidinco.com
  • Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam
  • Counseling Technical Counseling 100% Free
  • Shipping Free Shipping For 3.000.000vnd Order
Specification

Measuring Parameters: DC resistance, temperature

Resistance Test Range: 10μΩ — 200kΩ

Basic Resistance Test Accuracy: 0.05%

Resistance Range: Auto and manual (200mΩ, 2Ω, 20Ω, 200Ω, 2kΩ, 20kΩ, 200kΩ)

Temperature Sensor Type: PT500 platinum resistance, PT100 platinumresistance, analog voltage input Temperature test range

Temperature Test Range: PT100,P T500:-10℃ — 99.9℃,Analog:0V — 2V

Temperature Test Accuracy: PT100, PT500:0.3%*measured value  ±0.5℃,Analog:±1%Rd ± 3mV

Measurement Mode: Stand-alone, scanning

Scanning Channels: 15 channels/boards, and up to 6 boards and 90 channels can be inserted. The board channel is for scanning test, and it is synchronous test between the test boards.

Test Terminal Selection of Test Channel: Arbitrary configuration between channels (programmable)

Test Current: ≤100mA

Measurement Speed: Single board: 100 times / sec, 40 times / sec, 2 times / sec, 6 boards: 600 times / sec, 240 times / sec, 12 times / sec

Display Results: Simultaneous display the test results of 16 channels and support page turning

Short-circuit Clear Correction: Support full-scale short-circuit clearing for all channels

Comparators: Comparison boundaries are set separately for each test channel

Limit Mode: ABSDev、ABS、%

Trigger Mode: Auto trigger, manual trigger, bus trigger, Handler trigger, foot switch trigger

Test Terminal: Four-terminal test

Storage: 30 sets of instrument parameters

Application

■ Components: Resistor, inductor, transformer, motor, relay, circuit solder joint, capacitor riveting point
■ Cables, connectors: Strand wire, connectors, switches
■ Material: Heat-sensitive materials (fuses, sensor for thermistors), conductive materials such as metal foil
■ New energy: Electric vehicle battery pack connecting bridge, battery connection resistor

Performance Characteristics

- Resistance range: 10μΩ -- 200kΩ
- Highest accuracy: 0.05%, resolution: 10μΩ
- Temperature accuracy: 0.2°C
- Highest test speed: 600 times/s
- Up to 90-channel resistance/temperature scan tests
- Temperature compensation function (TC)
- One-Click screen capture function
- Data logging function
- The adapted test end of the scan test channel is programmable
- Support 6 units for free insertion and removal simultaneous measurement between test units
- Temperature measurement can support PT100, PT500 and analog voltage three temperature sampling methods temperature sampling methods
- 4.3 inch 24-color touch LCD screen with 480×272 resolution
- Chinese and English option operation interface
- Compatible with scanning and stand-alone measurement modes
- Automatic upgrade of instrument operating software via USB host
- Comparison sort results of channle, board and machine-level can be output
- Handler interface for online operations
