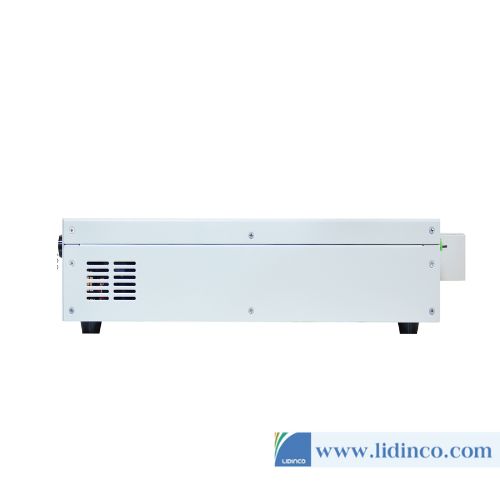

DC Power Supply Matrix MPS-32100-150 (100V-150A-15kW)

Product introduction MPS-32100 - 150

The MPS-3200 series DC power supply is a high-performance and economical DC power supply independently developed by MATRIX TECHLONOLY INC. It has the characteristics of simple operation, high stability, high power density, high cost performance, etc; It has excellent electrical characteristics. It is suitable for desktop operating environment, rack integrated application, aging production line, solar inverter test, system integration test, vehicle equipment test, motor life cycle test and other fields. It is an ideal choice for places where DC power supply needs to be stabilized for a long time. In terms of reliability, maintainability, security, etc., it is comprehensively ahead of similar products and continues to develop

Application field MPS-32100-150

• Life cycle test of electronic products
  ATE system integration
  Automobile electronic aging
  Power semiconductor aging
  Electric machinery, motor
  Production line testing and other related fields

Product features MPS-3200

●Specification:wide range output voltage 0-2000V, current 0-5000A optional;

● PWM modulation and high gain amplifier circuit design are adopted. Imported components are used as core components to ensure stable and reliable long-term full load operation;

● Small size, light weight, 19 "installation size, suitable for worktable use and rack installation (rack can be mounted within 30KW);

●Voltage and current preset: the panel is equipped with preset keys to preset the voltage and current values;

●Complete protection function: output overvoltage, overcurrent, over temperature shutdown output protection, short circuit protection, etc. can be set;

●Intelligent: it can be connected with PC to form a PC monitoring intelligent power supply;

●Communication interface: standard RS485, RS232 digital communication interface, 0-10V/4-20mA analog signal interface, MOUDBUS-RTU standard communication protocol;
