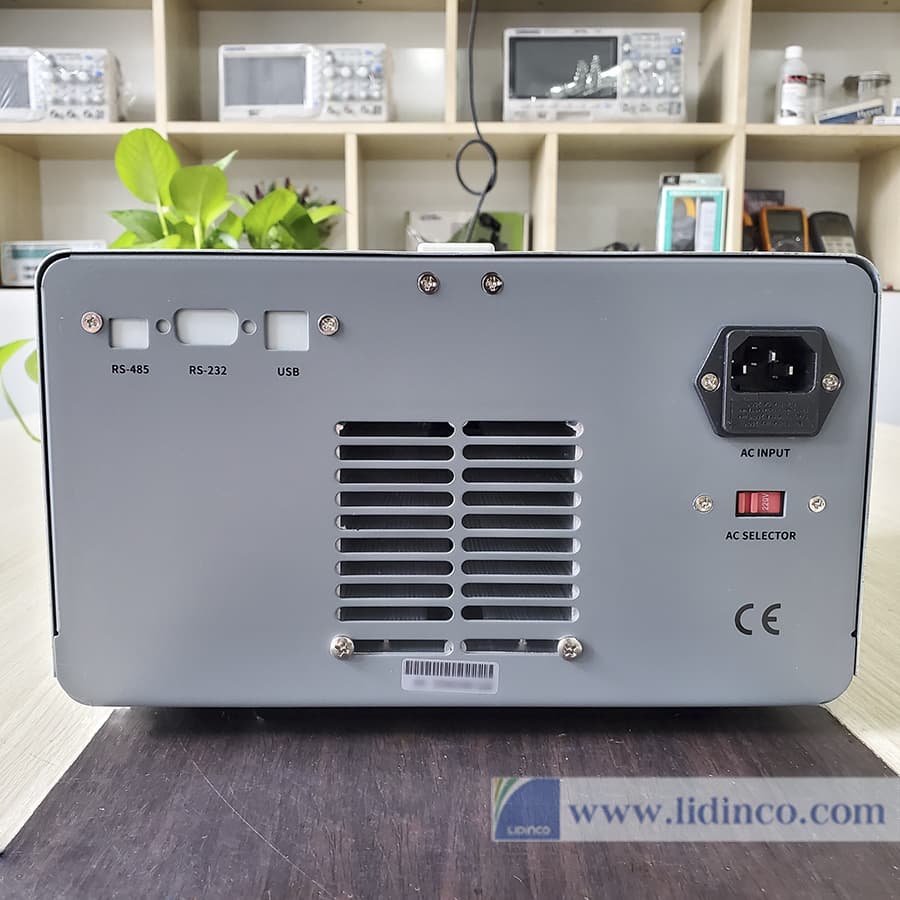

High Precision Triple-channel Linear DC Power Supply Matrix MPS-3005H-3 3 CH
High Precision Triple-channel Linear DC Power Supply Matrix MPS-3005H-3 3 CH
SKU:
MPS-3005H-3
Brand:
Warranty:
N/A
4.290.000đ
(Price does not include VAT)
-
Output Current:
-
Output Voltage:
-
DC Supply Type:
-
Output Channel:
- 2 products available
- There are currently no promotions for this product
Hotline: +84 906 988 447
Head Office: Ho Chi Minh City
- Tel: +84 2839 778 269 / 3601 6797
- Email: sales@lidinco.com
- Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam
Office: Bac Ninh City
- Tel: +84 222 730 0180
- Email: bn@lidinco.com
- Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam
-
Technical Counseling
100% Free
-
Free Shipping
For 3.000.000vnd Order
Specification
Data is being updated
| Model | MPS-3003H-3 | MPS-3005H-3 | MPS-3010H-3 | MPS-6003H-3 | MPS-6005H-3 | |||||||||||
| Channel | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | |
| Rated output | Voltage | 0~30V | 0~30V | 5V | 0~30V | 0~30V | 5V | 0~30V | 0~30V | 5V | 0~60V | 0~60V | 5V | 0~60V | 0~60V | 5V |
| Current | 0~3A | 0~3A | 3A | 0~5A | 0~5A | 3A | 0~10A | 0~10A | 3A | 0~3A | 0~3A | 3A | 0~5A | 0~5A | 3A | |
| Load regulation | Voltage | ≤0.01%+5mV | ≤15mV | ≤0.01%+5mV | ≤15mV | ≤0.01%+8mV | ≤15mV | ≤0.01%+5mV | ≤15mV | ≤0.01%+5mV | ≤15mV | |||||
| Current | ≤0.1%+5mA | ≤0.1%+5mA | ≤0.1%+5mA | ≤0.1%+5mA | ≤0.1%+5mA | |||||||||||
| Power regulation | Voltage | ≤0.01%+5mV | ≤0.01%+5mV | ≤0.01%+8mV | ≤0.01%+5mV | ≤0.01%+5mV | ||||||||||
| Current | ≤0.1%+5mA | ≤0.1%+5mA | ≤0.1%+5mA | ≤0.1%+5mA | ≤0.1%+5mA | |||||||||||
| Set resolution | Voltage | 10mV | 10mV | 10mV | 10mV | 10mV | ||||||||||
| Current | 1mA | 1mA | 1mA | 1mA | 1mA | |||||||||||
| Readback resolution | Voltage | 10mV | 10mV | 10mV | 10mV | 10mV | ||||||||||
| Current | 1mA | 1mA | 1mA | 1mA | 1mA | |||||||||||
| Set value accuracy | Voltage | ≤0.03%+10mV | ≤0.03%+10mV | ≤0.03%+10mV | ≤0.03%+10mV | ≤0.03%+10mV | ||||||||||
| Current | ≤0.1%+5mA | ≤0.1%+5mA | ≤0.1%+5mA | ≤0.1%+5mA | ≤0.1%+5mA | |||||||||||
| Readback accuracy | Voltage | ≤0.03%+10mV | ≤0.03%+10mV | ≤0.03%+10mV | ≤0.03%+10mV | ≤0.03%+10mV | ||||||||||
| Current | ≤0.1%+5mA | ≤0.1%+5mA | ≤0.1%+5mA | ≤0.1%+5mA | ≤0.1%+5mA | |||||||||||
| Parallel mode | Power effect | ≤0.01%+5mV | ≤0.01%+5mV | ≤0.02%+8mV | ≤0.02%+5mV | ≤0.01%+5mV | ||||||||||
| Load effect | ≤0.01%+5mV | ≤0.02%+5mV | ≤0.02%+8mV | ≤0.02%+5mV | ≤0.02%+5mV | |||||||||||
| Serial mode | Power effect | ≤0.01%+5mV | ≤0.01%+5mV | ≤0.01%+8mV | ≤0.01%+5mV | ≤0.01%+5mV | ||||||||||
| Load effect | ≤0.01%+5mV | ≤0.02%+5mV | ≤0.01%+8mV | ≤0.01%+5mV | ≤0.02%+5mV | |||||||||||
| Ripple and noise | Voltage | ≤2mV(rms) | ||||||||||||||
| Current | ≤5mA(rms) | |||||||||||||||
| Working temperature | 0~40°C ≤80%RH | |||||||||||||||
| Size | mm | 250*150*330 | ||||||||||||||
| Weight | kg | 8 | 9 | 12 | 9 | 9 | ||||||||||
