Description

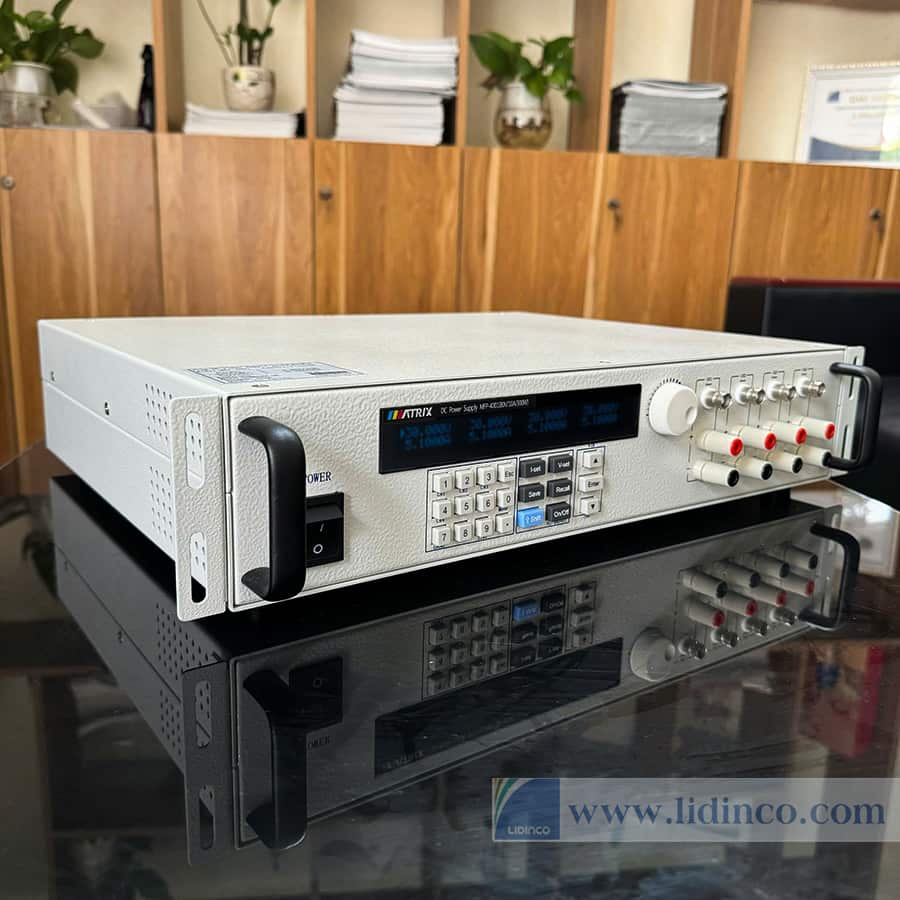

The MFP-4000 series four channel programmable DC power supply is a new generation of high-quality programmable DC power supply. All four channels can independently adjust voltage and current. This series of products is equipped with RS232 communication interface, which has the characteristics of desktop and system type, meeting the measurement requirements of different occasions.
Features
- List sequence output function
- 4 in 1 easy to install and occupies a small space
- Each channel is independently adjustable and isolated from eadh other
- Voltage compensation function ensures accuracy
- Intelligent temperature controlled fan for quieter usage environment
- Voltage and current range setting function
- Button sound on/off function
Specifications
Model | MFP-44000 | MFP-4001 | MFP-4002 | |
Rated input voltage | AC 110V/220V±10% | |||
Rated output power | 150W*4CH | 300W*4CH | 300W*4CH | |
Rated output voltage | 0~80V*4CH | 0-80V*4CH | 0~150V*4CH | |
Rated output current | 0~6A*4CH | 0~10A*4CH | 0~5A*4CH | |
Load regulation rate | Voltage | ≤0.02%+5mV | ||
Current | ≤0.02%+5mA | |||
Line regulation rate | Voltage | ≤0.02%+5mV | ||
Current | ≤0.02%+5mA | |||
Read back resolution | Voltage | 1mV | ||
Current | 0.1mA | |||
Ripple | Voltage | ≤8mV(rms) | ||
Current | ≤3mA(rms) | |||
Operational environment | 0~40℃≤80% RH | |||
Size(W*H*D) | 480*142*370mm | |||
Net weight | 9kg |
Accessories

-
