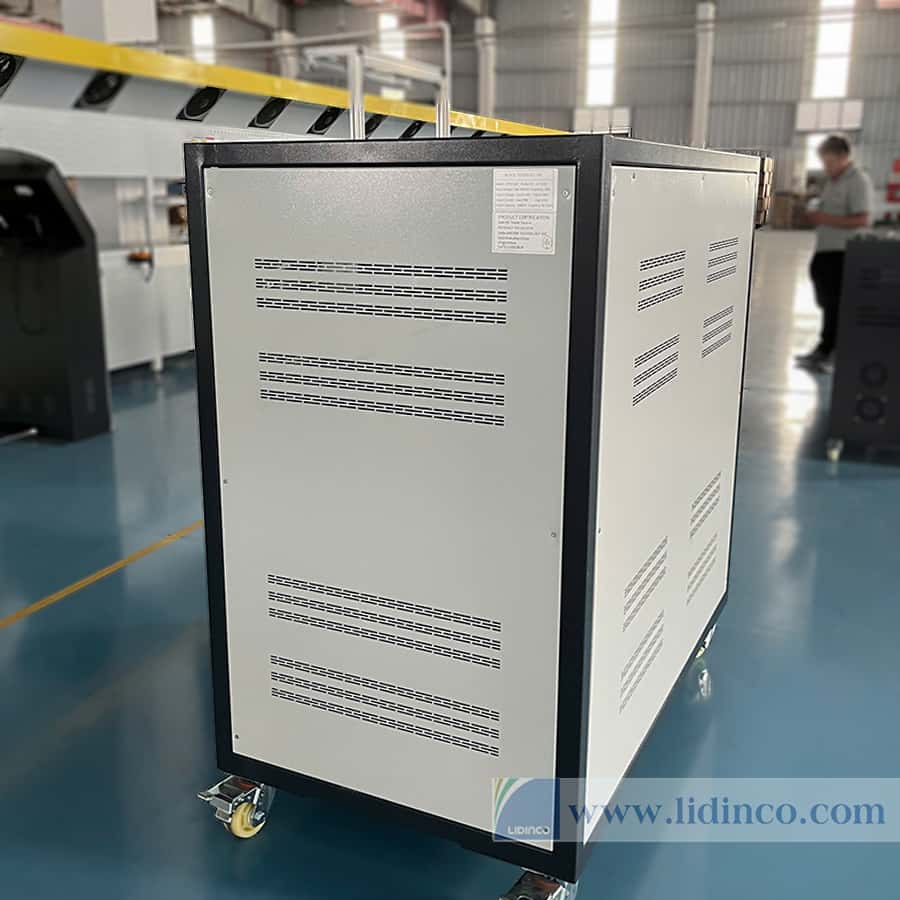

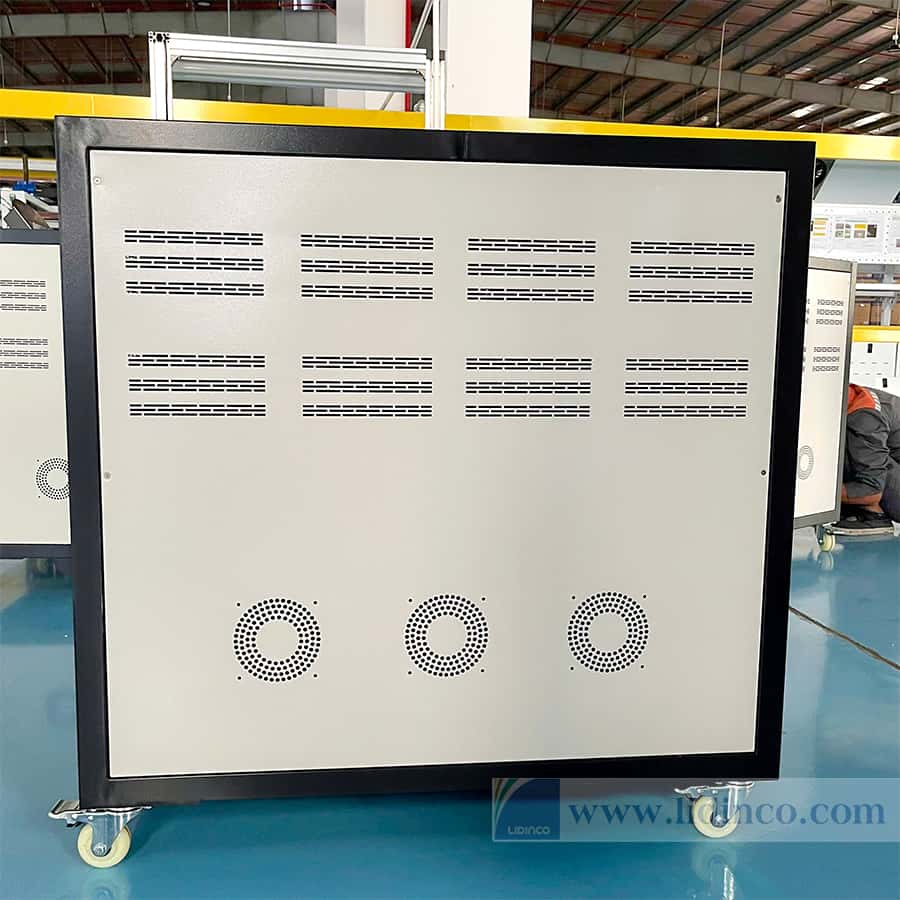

AC Power Source Matrix APS-51005

Description

APS50000 series is a ac power source from 5KVA to 500KVA, Output frequency: 40Hz-500Hz continuously adjustable (special frequency can be customized); Output phase voltage: withstand 1V-150VAC, high-grade 151V-300VAC, automatic gear 1V-300V.

Features

• Output frequency: 40Hz-500Hz continuously adjustable (special frequency can be customized);
• Output phase voltage: withstand 1V-150VAC, high-grade 151V-300VAC, automatic gear 1V-300V, line voltage 1V520V (special voltage can be customized);
• Voltage, frequency, current, power, power factor meter adopts 4-digit LED display, simple, easy to read and high resolution;
• Voltage (V), frequency (Hz), current (a), power (W) and power factor (P) can be measured and displayed simultaneously without switching;
• No radiation interference, small harmonic component, and special treatment, no interference, pure and stable sine wave output;
• Under the output state, the voltage, frequency, high and low gear switching can be adjusted without shutdown, which can meet the online test of different voltages;
• Large capacity, small size, light weight, high efficiency, silent device, high reliability;
• Provide standard voltage, frequency, analog test of all kinds of electric products in theworld;
• Strong overload capacity, instantaneous current can withstand 3 times of rated current;
• With over-current, over-temperature, over-voltage, short-circuit, instantaneous power-off protection and warning devices;

Specifications

Single phase programmable variable frequency power supply
