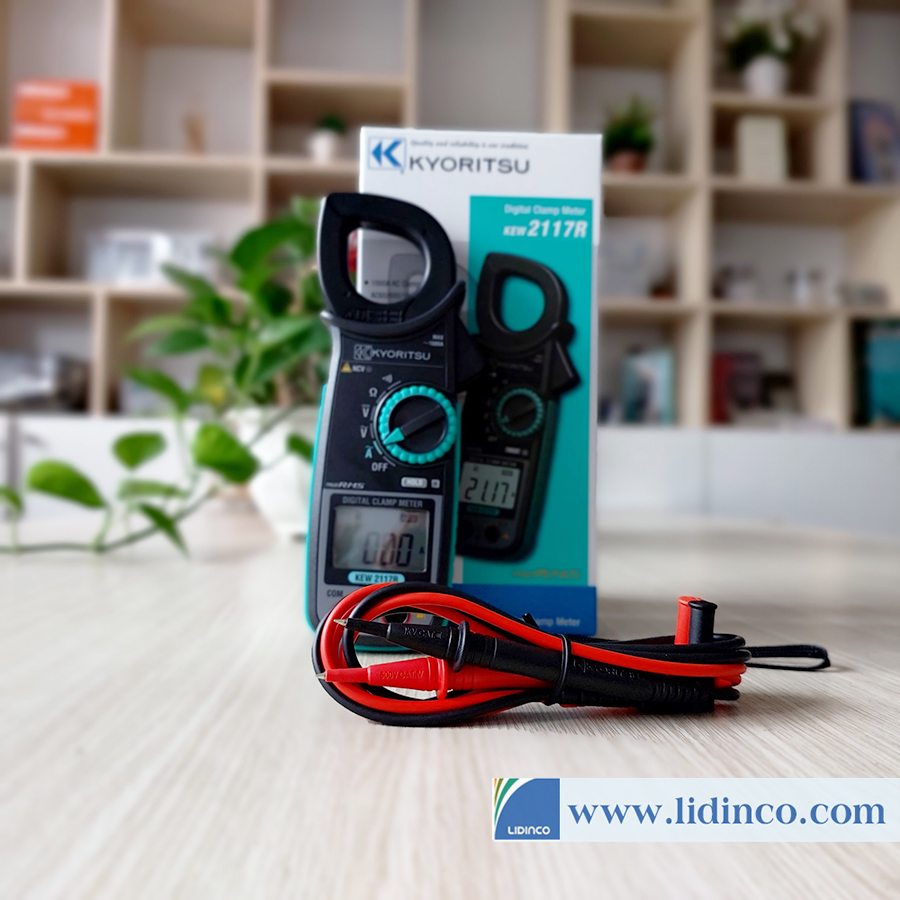

Digital Clamp Meters Kyoritsu Kyoritsu 2117r (1000ACA) True RMS

Name: Digital Clamp Meters Kyoritsu Kyoritsu 2117r (1000ACA) True RMS
Brand: Kyoritsu
SKU: KEW 2117R
Price: 0VND VND
Availability: InStock
Rating: 0.00 (0 reviews)

SKU:

KEW 2117R

0 ratings

Brand:

Kyoritsu

Warranty:

N/A

Price: Contact

Please contact to check stock

Request a quote

There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

Tel: +84 2839 778 269 / 3601 6797
Email: sales@lidinco.com
Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

Tel: +84 222 730 0180
Email: bn@lidinco.com
Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam

Technical Counseling 100% Free
Free Shipping For 3.000.000vnd Order

Specification

Data is being updated

Description product
Accessories

Description

Kyoritsu 2117r is a series of pliers with quite good machining quality, this product has the right size to help you easily operate with just one hand, the plastic shell and the rubber section on the outside make the device stronger, better shock resistant, stable operation in harsh environment.

Kyoritsu 2117r is also fully equipped with common measurement features such as AC current measurement, AC/DC voltage like most other devices so it can meet nearly any requirement of ordinary people.

If you are looking for a cabinet device with all the elements such as compactness, stable working ability, high reliability, easy operation, then 2117r is one of them.

Feature

- Fully Safety jaw
- Ergonomic over-molded body gives convenient one-hand operation
- Large easy-to-read display with 0.01A resolution
- Accurate reading with True RMS 60/600/1000A auto-ranging
- Long battery life
- Safety Standard IEC 61010-1 CAT IV 300V / CAT III 600V

Specifications

AC A	60.00/600.0/1000A (Auto-ranging) ±1.5%rdg±4dgt [45 - 65Hz] ±2.0%rdg±5dgt [40 - 1kHz]
AC V	60.00/600.0V (Auto-ranging) ±1.0%rdg±2dgt [45 - 65Hz] (600V) ±1.5%rdg±4dgt [40 - 1kHz] (60/600V)
DC V	60.00/600.0V (Auto-ranging) ±1.0%rdg±3dgt (60V) ±1.2%rdg±3dgt (600V)
Ω	600.0Ω/6.000/60.00/600.0kΩ (Auto-ranging) ±1.0%rdg±5dgt (600Ω) ±2.0%rdg±3dgt (6/60/600kΩ)
Continuity buzzer	600Ω(Buzzer sounds below 90Ω)
Conductor size	Ø33mm max.
Applicable standards	IEC 61010-1 CAT IV 300V, CAT III 600V Pollution degree 2 IEC 61010-031, IEC 61010-2-032, IEC 61010-2-033, IEC 61326-2-2(EMC), IEC 60529 IP 40, EN50581(RoHS)
Power source	R03/LR03 (AAA) (1.5V) × 2
Continuous measuring time	Approx.170 hours (When R3 is used)(NCV_LED:off) (Auto power save : approx. 10 minutes)
Dimensions	204(L) × 81(W) × 36(D)mm
Weight	220g Approx. (including batteries)
Included Accessories	7066A (Test leads) 9079 (Carrying case) R03 (AAA) × 2, Instruction Manual
