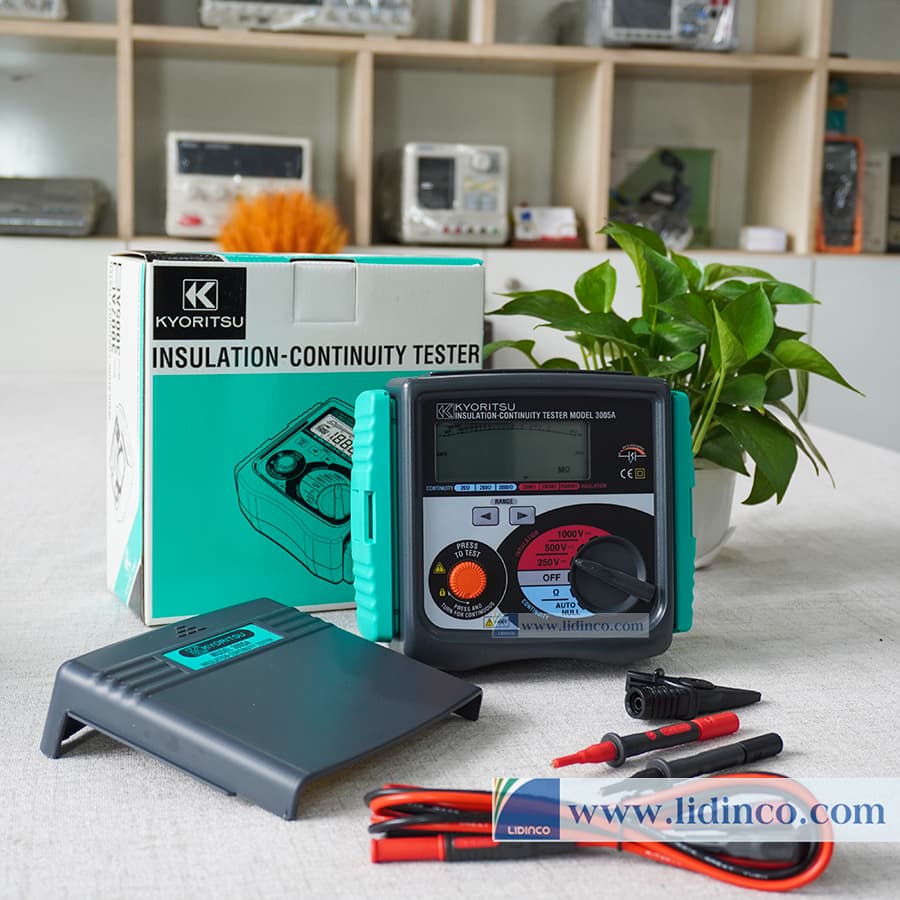

Digital Insulation / Continuity Testers Kyoritsu 3005A

Digital Insulation / Continuity Testers Kyoritsu 3005A

Model:
MODEL 3005A
Manufacturer:
Price: Contact
  • Resistance Range:
  • Test Voltage:
  • Accuracy:
  • Available: Please contact
  • There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

  • Tel: +84 2839 778 269 / 3601 6797
  • Email: [email protected]
  • Add: 487 Cong Hoa Street, Tan Binh Ward, Ho Chi Minh City, Vietnam

Office: Bac Ninh City

  • Tel: +84 222 730 0180
  • Email: [email protected]
  • Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh, Vietnam
  • Counseling Technical Counseling 100% Free
  • Shipping Free Shipping For 3.000.000vnd Order
Specification

Data is being updated

Feature

• Bargraph to display insulation resistance.
• Displays the value of external AC voltage along with flashing symbol.
• Auto null function to automatically subtract the test lead resistance before displaying the real continuity resistance value.
• Live circuit warning beeper.
• Releasing the test button automatically discharges the charges stored in the circuit under test.
• 200mA continuity measuring current to IEC 61557.
• Minimum 1mA current on insulation tests to IEC 61557.

Insulation Resistant

TEST VOLTAGE250V/500V/1000V
MEASURING RANGES<BR>(MID-SCALE VALUE)20MΩ/200MΩ/2000MΩ
OUTPUT VOLTAGE ON OPEN CIRCUITRated test voltage+20%, -0%
NOMINAL CURRENT1mA DC min.
OUTPUT SHORT CIRCUIT CURRENT1.5 mA DC approx.
ACCURACY±1.5%rdg±5dgt (20MΩ/200MΩ)
±10%rdg±3dgt (2000MΩ)

Continuity Test

MEASURING RANGES<BR>(MID-SCALE VALUE)20Ω/200Ω/2000Ω
OUTPUT VOLTAGE ON OPEN CIRCUIT7 – 12V DC
MEASURING CURRENT200mA DC min.
ACCURACY±1.5%rdg±5dgt (20Ω)
±1.5%rdg±3dgt (200Ω/2000Ω)

AC Voltage

AC VOLTAGE RANGE0 – 600V AC
ACCURACY±5%rdg±3dgt

General

SAFETY STANDARDIEC 61010-1 CAT III 300V Pollution Degree 2
IEC 61010-2-031 IEC 61557-1/2/4
IP RATINGIEC 60529-IP54
EMC STANDARDIEC 61326-1
POWER SOURCER6 (AA) (1.5V) × 8
DIMENSIONS167(L) × 185(W) × 89(D)mm
WEIGHT970g approx
INCLUDED ACCESSORIES7122B (Test leads) Pouch for test leads
8923 (F500mA/600V fuse) × 2
R6 (AA) × 8, Shoulder Strap
Instruction Manual

Accessories

7122B (Test lead)
Bag for test leads
8923 (Fuse F500mA / 600V) × 2
R6 (AA) × 8
User manual
Shoulder strap
