Mô tả

Máy phát hàm Lecroy ArbStudio 1102D, 4 channel, 16 bit, 1GS/s, Arbitrary Waveform Generator

Thông tin sản phẩm:

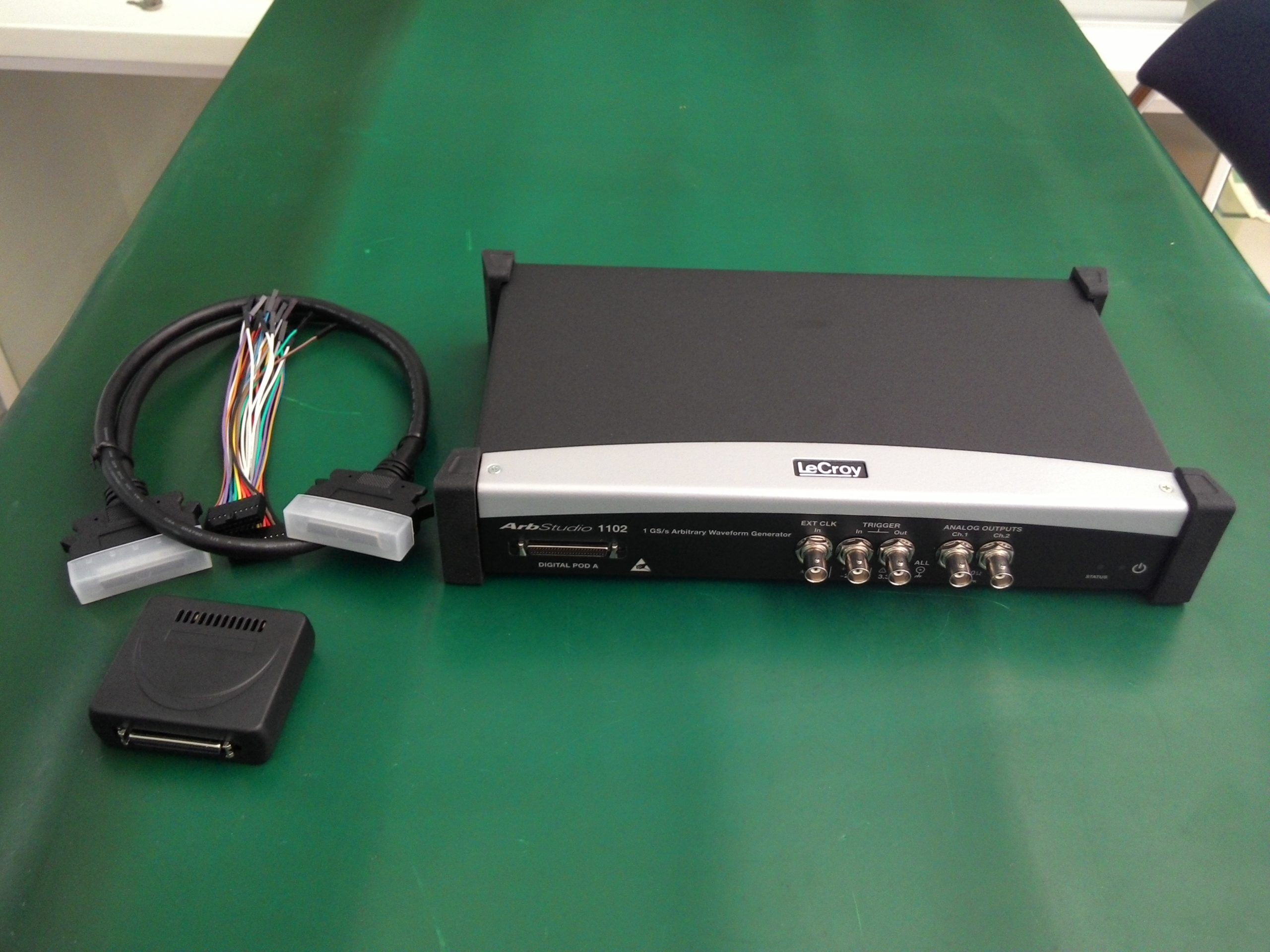

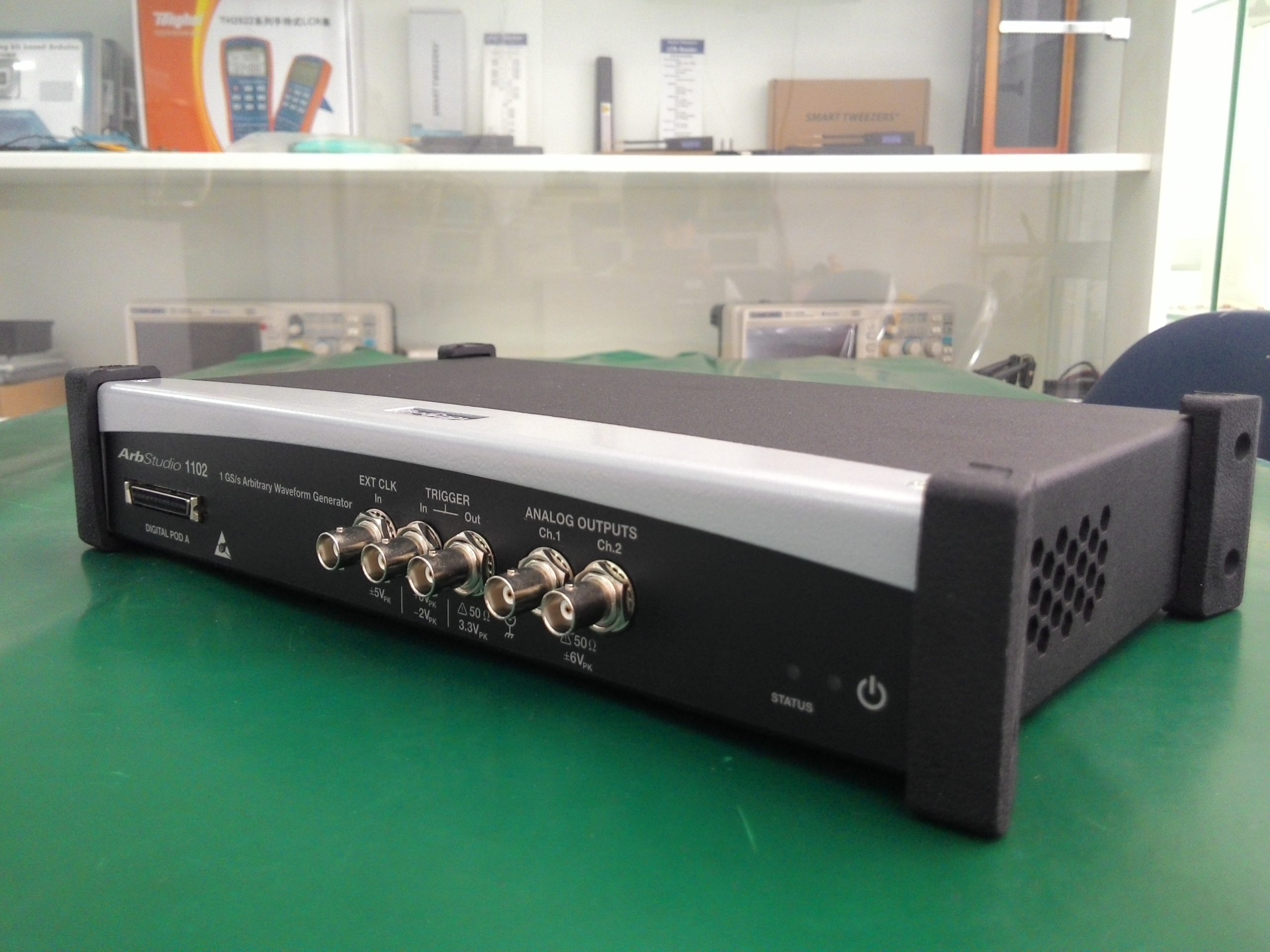

ArbStudio 1102D

Key Features
  • 125 MHz bandwidth
  • 1 GS/s maximum sample rate
  • Long memory – 2 Mpts/Ch
  • 16-bit resolution
  • 2 and 4 channel models
  • Arbitrary and Direct Digital Synthesis (DDS) modes
  • Digital pattern generator
  • PWM mode
  • Sweep and burst modes
  • Modulation – AM, FM, PM, ASK, SK, PSK
Unmatched Performance

ArbStudio combines 125 MHz bandwidth with long 2 Mpts/Ch memory, fast 1 GS/s sample rate and high 16-bit resolution to provide performance unmatched by other generators. Other instruments make trade-offs between these specifications, only ArbStudio provides leading specification in every category. Along with this unmatched performance is the variety of models providing both 2 and 4 channel configurations as well as a digital pattern generator of up to 36 channels.

Intuitive User Interface

The ArbStudio software provides an intuitive interface for creating, editing and sequencing waveforms. All channels, settings and controls can be accessed from the main screen. As waveforms are created they can be previewed in the graph display.

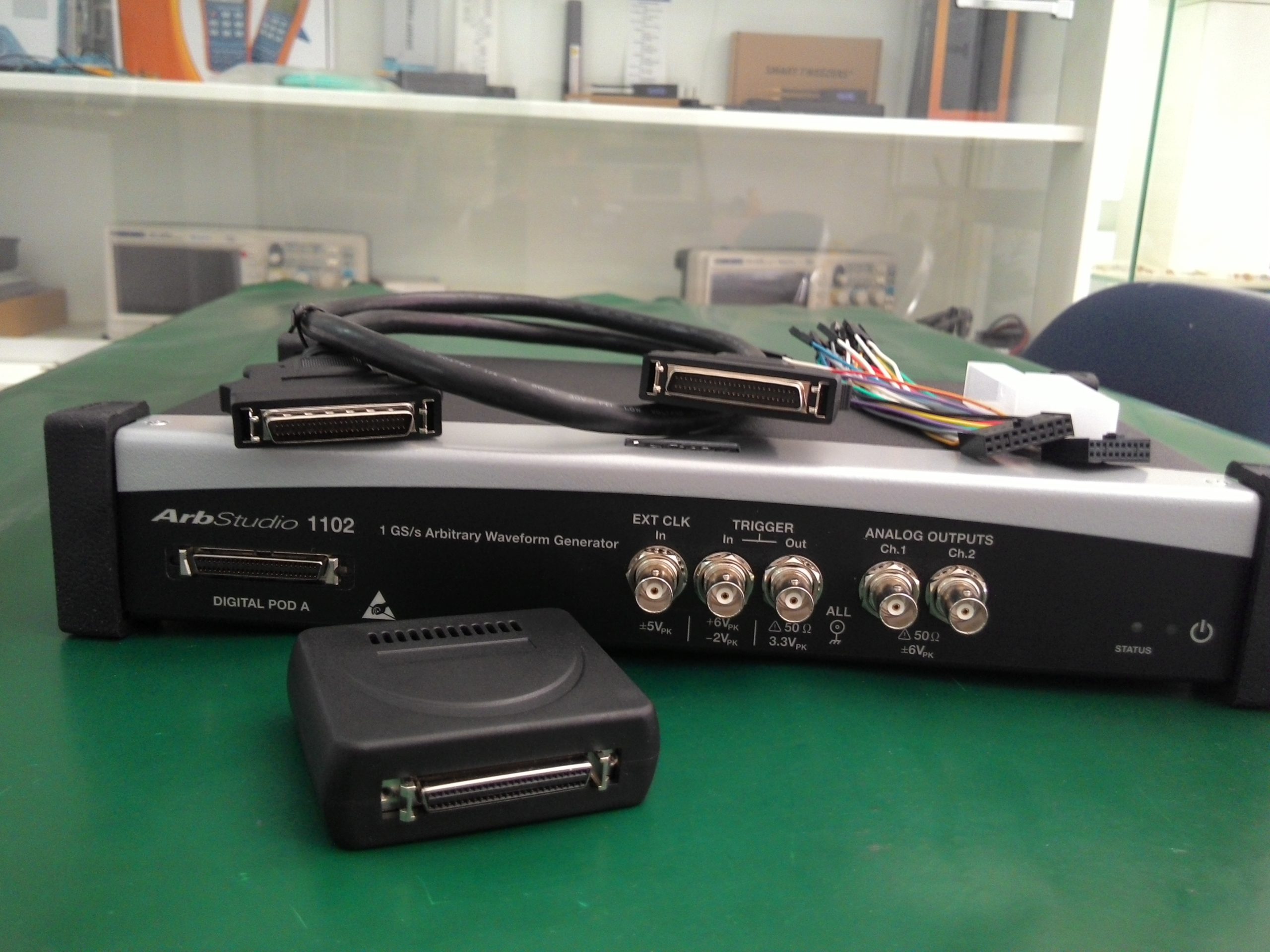

Digital Pattern Generator

Many systems have a variety of analog and digital signals yet most waveform generators provide only analog outputs. The ArbStudio 1102D and 1104D models provide analog and digital pattern generation with 18 or 36 channels respectively.



Modulation

Built-in modulation capabilities include AM, PM, FM, ASK, PSK and FSK. The modulation editor provides easy-to-use tools to configure the modulation scheme for any application.



Pulse-Width Modulation

Creating PWM signals has never been easier thanks to a dedicated control panel designed just for PWM waveforms. Easily set modulation shape, duty cycle and all other aspects of the PWM plus configure different settings for each channel.

Function Generator

All basic Sine, Square and Triangle waveforms can be created from a simple screen with controls that replicate a traditional bench top generator.



Flexibility

With both Arbitrary and Direct Digital Synthesis (DDS) ArbStudio offers extremely flexible generation capabilities. Math and noise functions are built-in and can be combined with waveforms. Up to 8 total 4 channel models can be synchronized with the AS-SYNC cable.









Thông tin bổ sung

Hãng SX

LeCroy



ArbStudio 1102D
Number of Channels 2
Digital Pattern Generator 18 Channels
Waveforms Sine, Cosine, Triangle, Rectangle, Sawtooth, Ramp, Pulse, Sinc, Exponential, Sweep, DC, Noise, From File, Arbitrary
Waveform Characteristics

Sine Waves
Frequency Range (Arbitrary) 2 µHz to 125 MHz
Frequency Range @ Max Sample Rate (DDS) 3.7 mHz to 110 MHz
Amplitude Flatness (1 Vp-p, Typical)
DC to 110 MHz (DDS) < ±0.1 dB
DC to 125 MHz (Arbitrary) < ±0.1 dB
Harmonics Distortion (1 Vp-p, Typical)
≤ 1 MHz < -66 dBc
1 MHz to 5 MHz  < -63 dBc
5 MHz to 10 MHz < -59 dBc
10 MHz to 25 MHz < -53 dBc
25 MHz to 75 MHz < -38 dBc
75 MHz to 110 MHz (DDS) < -31 dBc
75 MHz to 125 MHz (Arbitrary) < -28 dBc
Non Harmonic Distortion (1 Vp-p, Typical)
≤ 1 MHz < -71 dBc
1 MHz to 5 MHz < -71 dBc
5 MHz to 10 MHz < -71 dBc
10 MHz to 25 MHz < -66 dBc
25 MHz to 75 MHz < -53 dBc
75 MHz to 125 MHz (Arbitrary) < -47 dBc
75 MHz to 100 MHz (DDS) < -61 dBc
100 MHz to 110MHz (DDS) < -30 dBc
THD
(100 kHz, 1 Vp-p, Typical) < 0.15%
Phase Noise (20 MHz, 1 Vp-p, Typical)
10 kHz Offset -106 dBc / Hz
100 kHz Offset -113 dBc / Hz
1 MHz Offset -128 dBc / Hz
Analog Bandwidth
Arbitrary/DDS 125 MHz / 110 MHz
Square Wave, Pulse (1 Vp-p)
Frequency Range 2 µHz to 62.5 MHz
Duty Cycle Range 1% to 99%
Rise/Fall Time (Typical) < 3.5 ns
Overshoot (Typical) < 5.5%
Random Jitter (rms, Typical) < 20 ps
Triangle
Frequency Range 2 µHz to 31.25 MHz
Start Phase Range 0 to 360°
Ramp
Frequency Range 2 µHz to 31.25 MHz
Sinc (Sin(x)/x)
Frequency Range 2 µHz to 15.5 MHz
Minimum Lobe Width 8 ns
Waveform Sequencing
Waveforms All, From File, Arbitrary
Waveform Repetitions 1 to (2^33 – 1)
Start Source Software, Internal, External
No. of Waveforms 1 to 511

Common Characteristics

Arbitrary
Sample Rate Real Time 4 S/s to 250 MS/s
Vertical Resolution 16-bit
Waveform Memory 2 Mpts / Ch
Minimum Waveform Length 8 points
Waveform Resolution  2 points
Noise Bandwidth (-3 dB Gaussian Noise), Typical 100 MHz
Run Modes Single, Continuous, Stepped, Burst
Direct Digital Synthesis (DDS)
Sample Rate Real Time 125 MS/s to 250 MS/s
Run Modes Single, Continuous, Burst
Carrier Waveform Memory 2048 Samples / Ch
Amplitude, 50 Ω Load (1 kHz) 0 V to +12 Vp-p
Amplitude, Open Circuit 0 V to +24 Vp-p
Amplitude Resolution < 1 mV
DC Accuracy, Open Circuit (±12 V Range) ±0.25% of amplitude range (within ±10 °C of calibration temperature T=25 °C, Humidity ≤ 80%)
±0.3% of amplitude range (0 to 50 °C)
DC Accuracy, 50 Ω Load (±6 V Range) ±0.25% of amplitude range (within ±10 °C of calibration temperature T=25 °C, Humidity ≤ 80%)
±0.3% of amplitude range (0 to 50 °C)
AC Accuracy, Open circuit (0 Vp-p to +24 Vp-p range, 1 kHz Sine Wave) ±0.25% of amplitude range (within ±10 °C of calibration temperature T=25 °C, Humidity ≤ 80%)
±0.3% of amplitude range (0 to 50 °C)
AC Accuracy, 50 Ω Load (0 Vpp to +12 Vpp range, 1 kHz Sine Wave) ±0.25% of amplitude range (within ±10 °C of calibration temperature T=25 °C, Humidity ≤ 80%)
±0.3% of amplitude range (0 to 50 °C)
Output Impedance Selectable: 50 Ω, Low or High Impedance
Short Circuit Protection Signal outputs are robust against permanent shorts against floating ground
Frequency accuracy
Stability < ±5 ppm
Aging < ± 2 ppm / year
Max Interpolated Sample Rate  1 GS/s (4x interpolation)
Interpolation Factors 1x, 2x, 4x
Sampling Frequency Resolution 15 digits limited by 1 nHz
Multi Channel Specifications
Sampling Rate Tuning Programmable per channel couple      (Ch 1-2)
Skew Between Channels (at Common Sample Rate)
Average (Typical) < 300 ps
Standard Deviation (Typical) < 35 ps
Math Sum, Difference, Multiply between the two channels (Ch 1-2)

Modulation

Amplitude Modulation
Modulation Type Arbitrary AM, ASK
Carrier Waveform All, From File, Arbitrary
Modulating Waveforms All, From File, Arbitrary
Modulating Source Internal
Modulating Waveform Sample Clock at Max. Sampling Rate 0.46 S/s to 125 MS/s
Memory Size 2047  entries
Phase/Frequency Modulation
Modulation Type Arbitrary FM/PM, FSK, PSK
Carrier Waveform All, From File, Arbitrary
Modulating Waveforms All, From File, Arbitrary
Modulating Source Internal
Carrier Frequency at Max. Sample Rate
Sine Wave 3.7mHz to 110 MHz
Square 3.7mHz to 62.5 MHz
Triangle 3.7mHz to 31.25 MHz
Ramp 3.7mHz to 31.25 MHz
Modulating Waveform Sample Clock at Max. Sample Rate From 119.2S/s to 125 MS/s (per sample programmable)
Memory Size 511 entries
Frequency Resolution at 125 MS/s Sample Rate 0.0019 Hz (FSK)
2.15E-5° (PSK)
Frequency Resolution at 250 MS/s Sample Rate 0.0037 Hz (FSK)
4.30E-5° (PSK)
Pulse Width Modulation
Carrier Waveform Pulse
Carrier Frequency 100 mHz to 20 MHz
Duty Cycle Modulating Waveform Sine, Triangle, Ramp, Noise, Manual
Duty Cycle Modulating Frequency 10 µHz to 6.67 MHz
Source Internal
Duty Cycle Deviation 0 % to 100 % of pulse period
Frequency Sweep
Carrier Waveform All, From File, Arbitrary
Sweep Type All waveforms
Sweep Direction Up or Down
Sweep Range at Max. Sample Rate
Sine Wave 3.7 mHz to 110 MHz
Square 3.7 mHz to 62.5 MHz
Triangle 3.7 mHz to 31.25 MHz
Ramp 3.7 mHz to 31.25 MHz
Sweep Time at Max. Sample Rate 100 ns to  4.2 s
Pattern Generator Characteristics
Number of Channels 18
Vector Memory Depth 1 Mpts / Ch
(per Ch programmable direction)
Acquisition Memory Depth 2 Mpts / Ch
Update Frequency 125 MS/s
(per Ch programmable direction)
Sampling Frequency 250 MS/s
Direction Control Per Ch programmable
Output Voltage Level 1.2 V to 3.6 V
Trigger Levels 31
Operating Modes 18 Ch Digital or 2 Ch Analog

Multi-Instrument Synchronization
Max Number of Instruments N/A
Synchronization Accuracy N/A

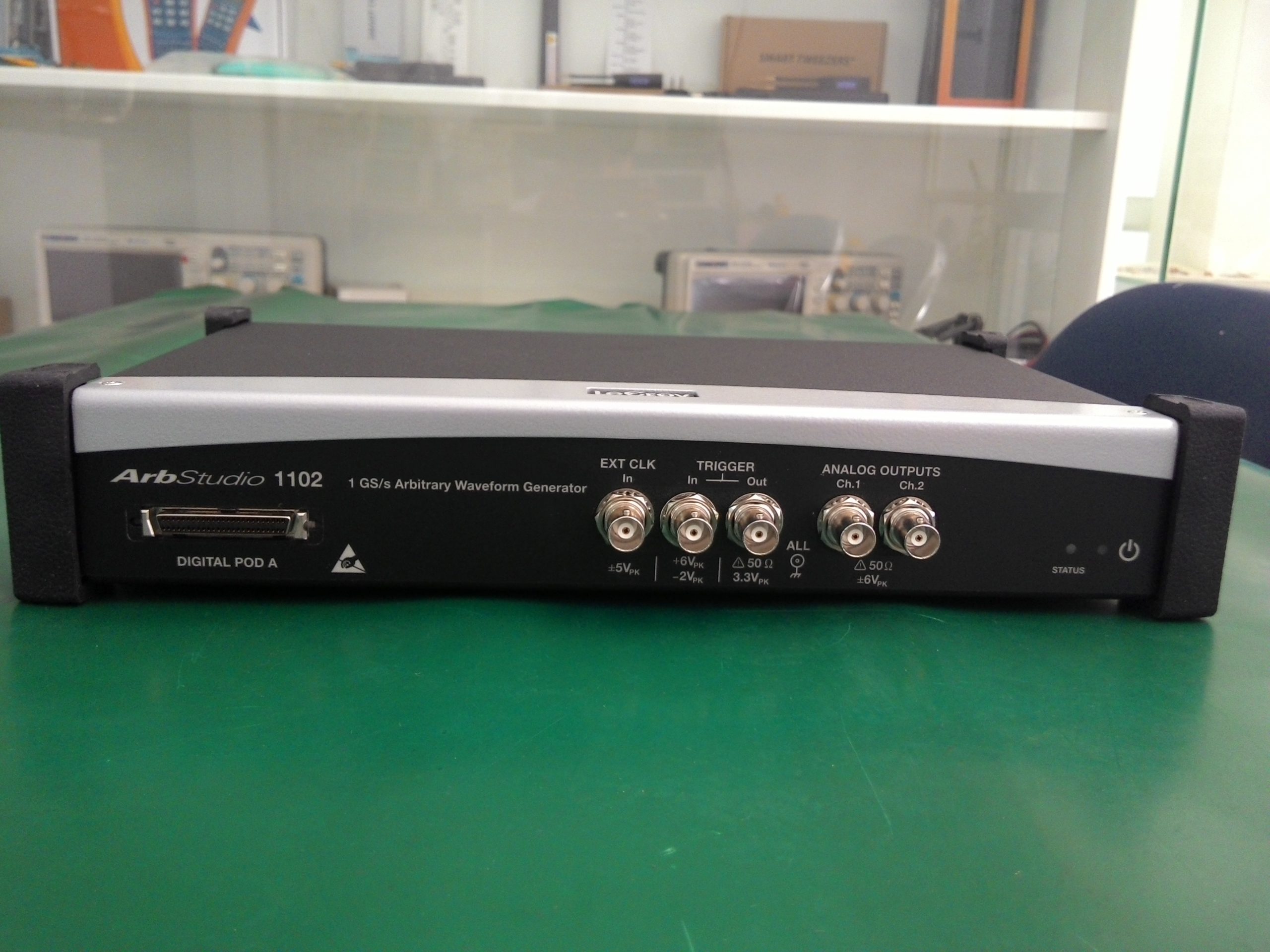

Auxiliary Inputs/Outputs

Analog Outputs
Output Connector Front panel BNC
Voltage Range (Open Circuit) VOmin = -12 V, VOmax = +12 V
Output Impedance 50 Ω, Low or High Impedance
Lo Max. (All Channels Loaded) ±120 mA max per channel
External Trigger Output
Output Connector Front panel BNC
Output Level TTL compatible into > 1 KΩ
Output Impedance 50 Ω nominal
External Trigger Input
Input Connector Front panel BNC
Frequency Range DC to 125 MHz
Threshold Level VILmax = 0.8 V, VIHmin=2 V
Voltage Range -0.5 V to 4 V
Damage Level VINmax < 6 V, VINmin > -2 V
Slope Rising Edge or Falling
External Clock
Input Connector Front panel BNC
Frequency Range 0 MHz to 125 MHz
Min. Input Voltage Swing ΔVINmin > 2 V
Damage Level VINmax < 5 V, VINmin > -5 V
Digital I/O
Connector 50 pin high density (1.27 mm) SCSI connector
Connector count 1

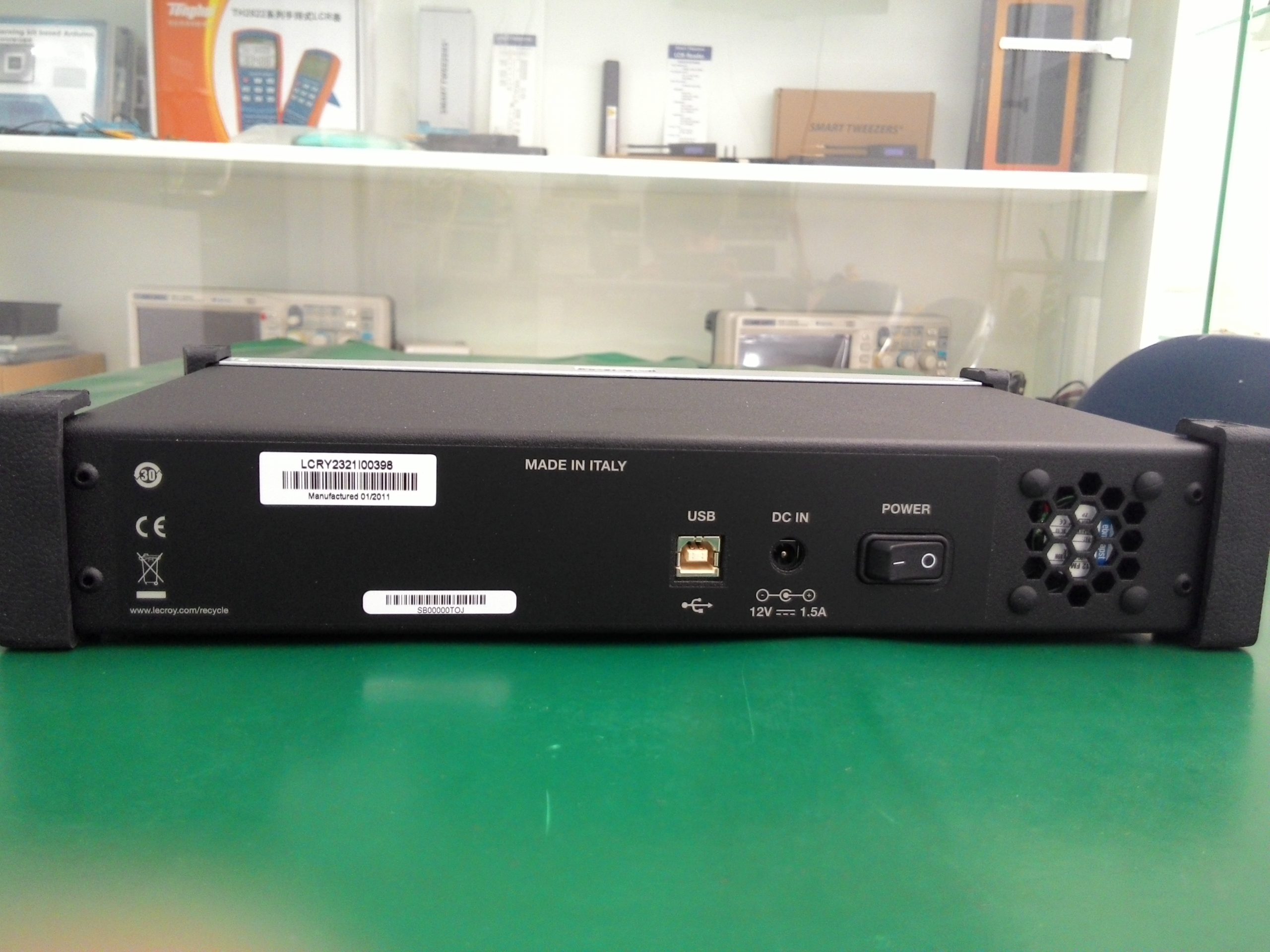

General Characteristics
Power Supply Voltage Range 100 ±10% to 240 ±10% VAC
Power Consumption 35 W max.
Power Frequency Range 50/60 Hz ± 5%
PC Interface USB 2.0

Physical Characteristics
External Dimensions (HWD) 2.4" x 12.8" x 7.2" (62 x 326 x 182 mm)
Weight 2.8 lbs (1.3 kg)

Environmental Characteristics
Temperature (Operating) Main equipment: 0 to 50 °C
Power adapter: 0 to 40 °C
Temperature (Non-Operating) Main equipment: -40 to 71°C
Power adapter: -25 to 71°C
Humidity (Operating) 5% to 80% RH (non-condensing) at ≤ 30 °C, 50% max RH (non-condensing) at 40 °C
Humidity (Non-Operating) 5% to 95% max RH (non-condensing)
Altitude (Operating) Up to 3,048 m (10,000 ft) at ≤ 30°C
Altitude (Non-Operating) Up to 12,192 m (40,000 ft)

Minimum PC Requirements
Operative System Microsoft Windows® 2000/XP SP2/Vista/7 32-bit Editions
Processor Intel® Pentium® III processor, or better
Memory 512 MB RAM
Hard Disk 150 MB available free space
Display Resolution 800 x 600 or better
Connectivity USB 2.0 or 1.1
