Arbitrary Waveform Generator Siglent SDG1020, 20MHz, 2 CH

Arbitrary Waveform Generator Siglent SDG1020, 20MHz, 2 CH

SKU:
SDG1020
Brand:
Warranty:
N/A
Price: Contact
  • Frequency:
  • Sampling Rate:
  • Waveform Length:
  • Vertical Resolution:
  • Please contact to check stock
  • There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

  • Tel: +84 2839 778 269 / 3601 6797
  • Email: sales@lidinco.com
  • Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

  • Tel: +84 222 730 0180
  • Email: bn@lidinco.com
  • Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam
  • Counseling Technical Counseling 100% Free
  • Shipping Free Shipping For 3.000.000vnd Order
Specification

Maximum output frequency: 60 MHz

Minimum rise/fall time: 1 nsec

Maximum sampling rate: 150 MSa/s

Vertical resolution: 14-bit

Wave length: 16 kpts

Channel: 2 ONLY

Sine wave: 1μHz ~ 60MHz

Square wave: 1μHz ~ 60MHz

Sawtooth wave: 1μHz ~ 500 kHz

Pulse wave: 1μHz ~ 12.5 MHz

Noise (-3dB): 60MHz

Arbitrary wave: 1μHz ~ 6MHz

Weight: 8 lbs

Dimensions: 10.2 × 4.2 × 11.6 inches

Description

The SDG1000 series is a direct digital synthesized waveform generator with
built-in arbitrary waveform and pulse capabilities. Its combination of excellent
system features, easiness in usage and versatile functions makes this
generator a perfect solution for your testing now and in the future.

Features:

- DDS technology provides precise, stable and low distortional output signal.
- 3.5’TFT color LCD display.
- 125MSa/s sampling rate, 14-bit resolution.
- Frequency characteristics:
 Sine: 1μHz to 50 MHz
 Square: 1μHz to 25 MHz
 Ramp: 1μHz to 300 kHz
 Pulse: 500μHz to 10MHz
 White Noise: 50MHz bandwidth (-3dB)
 Arbitrary: 1μHz to 5MHz
- 5 standard waveforms: Sine, Square, Ramp, Pulse, Noise
- Self-defined arbitrary waveform
- Multiple modulation function, various modulated waveform: AM, DSB-AM, FM, PM, ASK, FSK, Sweep and Burst.
- Multiple I/O: external modulation source, external 10 MHz reference input, external trigger source, waveform output, synchronous signal output.
- Support USB storage device. Software updating could also be performed using USB devices.
- Up to 16k sample points of internal waveform depth, which can rebuild or simulate any complex waveform.
- Remote control is realized using the USB cable.
- Multiple interfaces: USB host & device
- Support the seamless connection with SIGLENT Series Digital Oscilloscopes; Be able to directly read and rebuild the stored waveform in the oscilloscopes.
- 2 languages(English and Chinese)user interface and built-in help system.

46 types of built-in arbitrary waveforms     Powerful modulation types (AM, DSB-AM,
FM, PM, ASK, FSK, PWM)


Burst     Sweep


Siglent SDG1020 lidinco 2

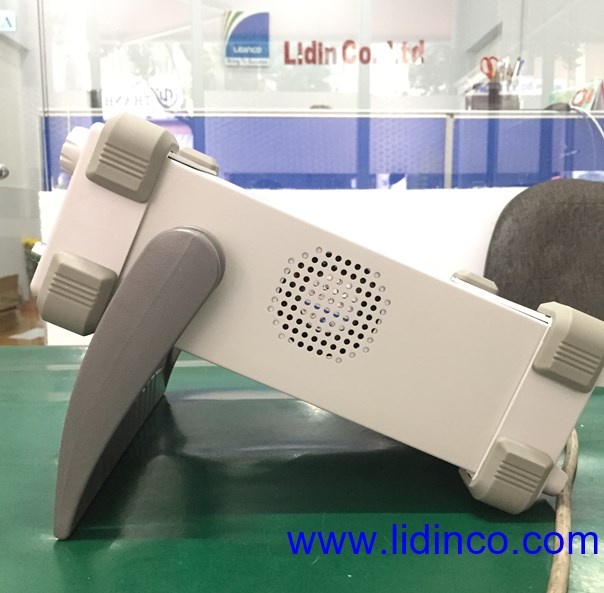

Siglent SDG1020 lidinco 1

Technical parameters:

Model

SDG1020

Highest frequency output

20MHz

Output channels

2

Sample rate

125 MSa/s

Wave length

16 Kpts

Frequency resolution

1 μHz

Vertical resolution

14 Bit

Waveform

Sine wave, square wave , triangular wave ,pulse wave ,white noise,48 types of function waveform

Sine wave

1μHz ~ 20MHz

Square wave

1μHz ~ 20MHz

Pulse

1μHz ~ 5MHz

Ramp

1μHz ~ 300KHz

Gaussian  white noise

20MHz bandwidth(-3dB)

Wave

1μHz ~ 5MHz

Modulation function

AM,FM,PM,ASK,FSK etc.

Other functions

Frequency counter:frequency is up to200MHz

Standard configuration

USB Host & Device

Optional port

GPIB(IEEE-488)

Product classify

function/waveform generator

Size

width×height×depth=229mm×105mm×281mm

Accessories

Standard  Accessories

●  One Power Cord that fits the standard of destination county

●  One USB Cable

●  One User Manual

●  One Set Of EasyWave for WIN98/2000/XP arbitrary Waveform Drawing software

 Optional  Accessories

●  BNC Coaxial cable

●  GPIB Interface
