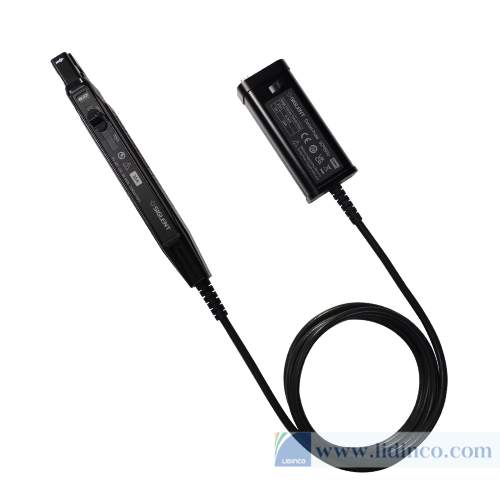

Current Probe Siglent SCP5030
-
Probe Type:
- Available: Please contact
- There are currently no promotions for this product
Hotline: +84 906 988 447
Head Office: Ho Chi Minh City
- Tel: +84 2839 778 269 / 3601 6797
- Email: [email protected]
- Add: 487 Cong Hoa Street, Tan Binh Ward, Ho Chi Minh City, Vietnam
Office: Bac Ninh City
- Tel: +84 222 730 0180
- Email: [email protected]
- Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh, Vietnam
-
Technical Counseling
100% Free
-
Free Shipping
For 3.000.000vnd Order
Bandwidth: DC-2 MHz
Rise Time: ≤175 ns
Continuous maximum input range: 500 Arms
Max peak current value: 750 Apk
Range:
75A / 10X
500A /100X
Overload:
75A / ≥75 A
500A / ≥750 A
Current transfer ratio:
75A / 0.1 V/A
500A / 0.01 V/A
Resolution:
75A / 10 mA
500A / 100 mA
Accuracy: (DC, 45-66 Hz)
75A / ±1%±10 mA
500A / ±1%±100 mA
Terminal load requirements: ≥100 kΩ
Voltage of insulated wire: 600 V CATII 300 V CATIII
Safety compliance: EN61010-1: 2010+A1:2019 EN 61010-2-032:2019
EMC standard: EN61326-1:2013 EN61000-3-2:2014 EN61000-3-3:2013
Clamp dimensions: 475 g
Probe weight: 174*67.5*30 mm( L*W*H )
Description SCP5500
The SCP5000 series current probes are wide band width DC / AC active current probes, featuring high bandwidth, fast and accurate capture the current wave, accuracy up to 1% and low circuit insertion loss. This probe can be used with any oscilloscope having a high-impedance SAPBUS input.
- Bandwidth: 50 MHz
- Maximum continuous current 30 Arms
- Peak current 50 A
- Switching ratio: 5 A/30 A
- Accuracy: 5 A(±1%±1 mA); 30 A(±1%±10 mA)
- Powered by oscilloscope via SAPBUS
