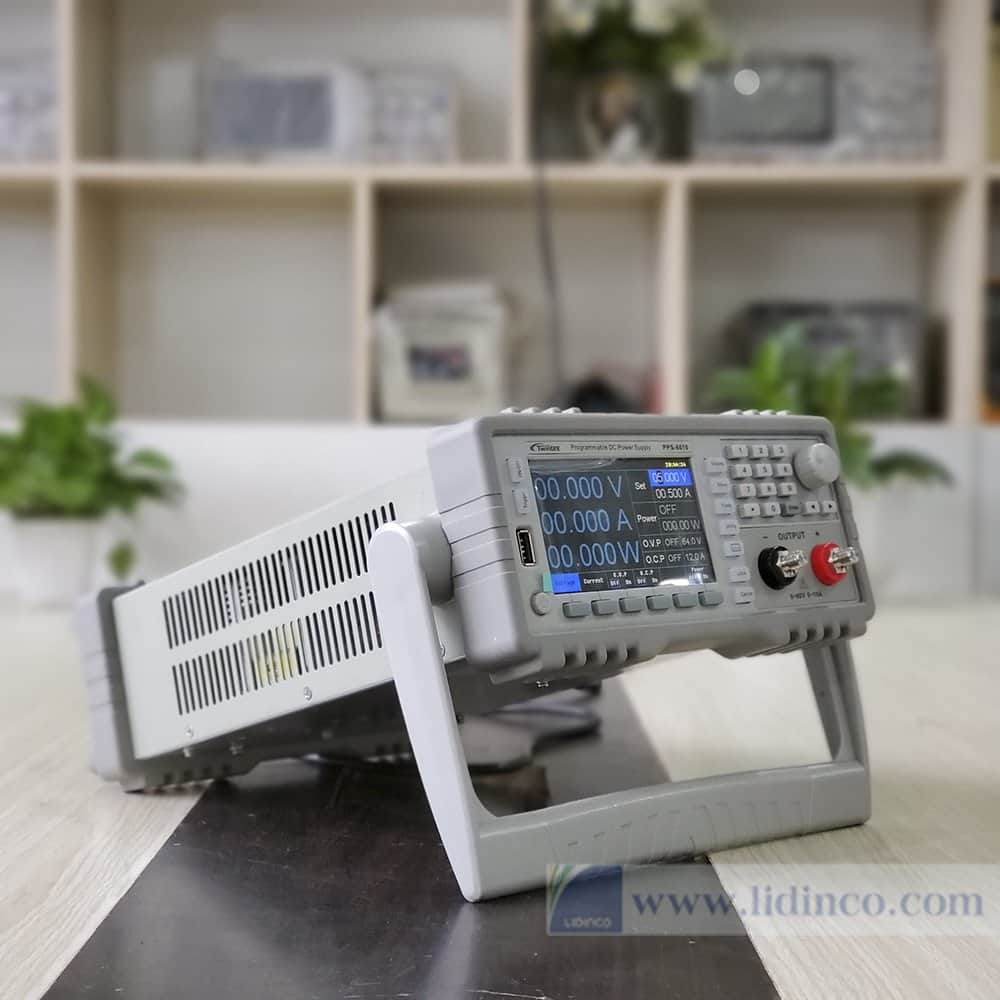

DC power supply Twintex TPW 6010
Price: Contact
-
DC Supply Type:
-
Output Channel:
-
Output Current:
-
Output Voltage:
- Available: Please contact
- There are currently no promotions for this product
Hotline: +84 906 988 447
Head Office: Ho Chi Minh City
- Tel: +84 2839 778 269 / 3601 6797
- Email: sales@lidinco.com
- Add: 487 Cong Hoa Street, Tan Binh Ward, Ho Chi Minh City, Vietnam
Office: Bac Ninh City
- Tel: +84 222 730 0180
- Email: bn@lidinco.com
- Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh, Vietnam
-
Technical Counseling
100% Free
-
Free Shipping
For 3.000.000vnd Order
Specification
Data is being updated
Description
DC power supply Twintex TPW 6010
Measuring instrument features:
- Simultaneous voltage and current readout
- overload protection
- protection against reverse polarization
- thermal protection
- coarse and precise voltage and current adjustment
Additional information
- Gross weight: 15.99 kg
- Collective package: 1 pcs
- Guarantee (months): 12
| Model | TPW-6010 | |
| Rated output (0℃~40℃) | ||
| Voltage | 0~60V | |
| Current | 0~10A | |
| OVP | 0.1~64V | |
| OCP | 0.1~12A | |
| Constant Voltage Operation | ||
| Line regulation | ≤0.01%+3mV | |
| Load regulation | ≤0.1%+5mV | |
| Ripple & Noise | 2mVrms, 30mVpp(20Hz~20MHz) | |
| Recovery time | ≤1.5ms (50% load change) | |
| Constant Current Operation | ||
| Line regulation | ≤0.2%+3mA | |
| Load regulation | ≤0.2%+5mA | |
| Ripple & Noise | ≤10mArms | |
| Display | ||
| Voltmeter | 5 digits LCD display | |
| Ammeter | 5 digits LCD display | |
| Setting resolution | 1mV/1mA | |
| Reading resolution | 1mV/1mA | |
| Setting accuracy | Voltage | ±(0.03% of reading + 10mV) (25±5℃) |
| Current | ±(0.3% of reading + 10mA) (25±5℃) | |
| Reading accuracy | Voltage | ±(0.02% of reading +5mV) (25±5℃) |
| Current | ±(0.05% of reading +10mA) (25±5℃) | |
| Protection | Over load, over voltage, over current, over temperature and reverse polarity protections | |
| Programming interface | USB or RS-232, support SCPI commands | |
| Memory | 100 sets | |
| Insulation | Between terminals and chassis/other terminals: ≤60VDC | |
| Power source | AC220V±10%, 50/60Hz | |
| Accessories | Power cord x1, Operation manual x1, RS-232 cable x1, Software CD x1 | |
| Dimension | 230x110x370mm | |
| Weight | 4.5kg | |
