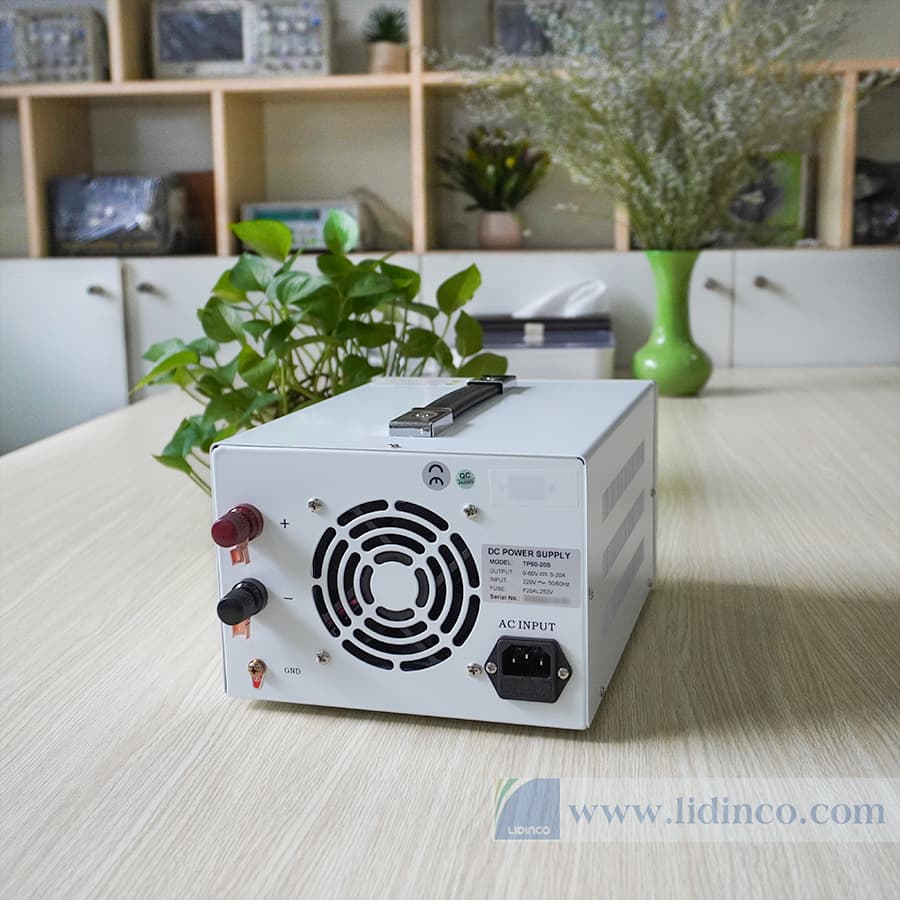

Switching DC power supplies TP60-20S 60V 20A

Name: Switching DC power supplies TP60-20S 60V 20A
Brand: Twintex - Taiwan
SKU: TP60-20S
Price: 7.350.000VND VND
Availability: InStock
Rating: 0.00 (0 reviews)

SKU:

TP60-20S

0 ratings

Brand:

Twintex - Taiwan

Warranty:

N/A

7.350.000đ

(Price does not include VAT)

1 products available

There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

Tel: +84 2839 778 269 / 3601 6797
Email: sales@lidinco.com
Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

Tel: +84 222 730 0180
Email: bn@lidinco.com
Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam

Technical Counseling 100% Free
Free Shipping For 3.000.000vnd Order

Specification

Data is being updated

Description product
Accessories

Description

TP60-20S are high power output DC power supply with voltage up to 60V and current up to 20A. Over Voltage Protection, Over Current Protection, Over Temperature Protection and Over Power Protection keep the TP-S series and their load safe from unexpected conditions. High Accuracy, high stability and low ripple & noise make the TP-S series an ideal solution for various industrial applications.

Features

★ Max.output power ranging from 1200W
★ Max.output voltage 60V, Max. output current 20A
★ Applying advanced PWM control technology
★ Compact design and light weight (3~10kg)
★ Constant voltage (CV) and constant current (CC) operations
★ Auto CV/CC switch
★ Coarse and Fine control for voltage and current
★ Over voltage, over current, over temperature and over power protections
★ Adjustable OVP & OCP range, OPP fixed 110% of Max. power
★ Intelligent temperature control cooling fan
★ Customized specifications and functions acceptable

Specification

Output capacity	150W~5kW
Working mode	PWM
Output
Output voltage	DC 0~100% full range adjustable
Output current	DC 0~100% full range adjustable
O.V.P. range	DC 1~100% rated output
O.C.P. range	DC fixed 105% max. output
Line regulation	CV≤0.2% +2 digits
Line regulation	CC≤0.5% +2 digits
Load regulation	≤0.5% +2 digits
Ripple & Noise	≤1% rms full scale
Display
Voltmeter	4 digits LED display
Ammeter	4 digits LED display
Voltage resolution	0.000-9.999V; 00.00-99.99V; 000.0-999.9V
Current resolution	0.000-9.999A; 00.00-99.99A; 000.0-999.9A
Accuracy	±(1% FS+1 digit)
Optional functions
Display meter	4 1/2 digits LED display (Max. display 19999)
Output terminal	On front panel; or on rear panel; or on both front and rear panels
Output ON/OFF	Front panel switch
Output ON/OFF	Terminal block or Wires on rear panel for remote control
General
Protection	Over voltage, over current, over temperature and over load protections
Operating environment	0℃~40℃, <80%RH
Storage environment	-10℃~70℃, <80%RH
Power source	AC110V/220V±10%, 50/60Hz
Input module	Power socket or terminal block
Dimension (WxHxD)	200x150x285mm (M chassis, 150W~1000W)
	260x160x380mm (L chassis, 1000W~3000W)
	260x160x440mm (XL chassis, 3000W~5000W)
