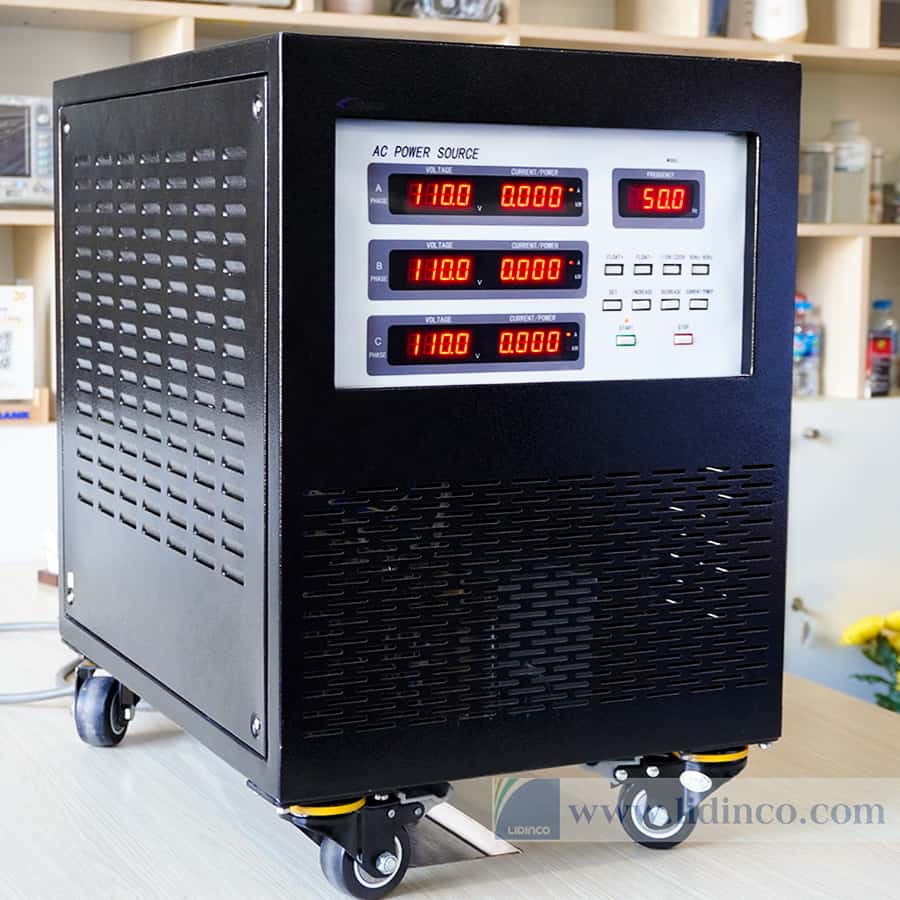

Programmable Three Phase AC Power Source Twintex TFC63 Series

Descriptions

The TFC63 Series three phase AC power source is high power output three p hase AC power supply, output capacity from 3kVA 6kVA 10kVA 15kVA 20kVA 30kVA to 800kVA. The three phase AC power source features high stability variable voltage output and variable frequency output. Output frequency is variable from 45Hz to 65Hz, or higher frequency at request. The programmable three phase AC power source features fast transient response, response time less than 2mS. The AC power source has over voltage, over current, over temperature and over load protections. The three phase AC power source can be used to simulate grids of different countries, widely used in laboratories, production calibration & test and military applications.

Features

• Output voltage: phase voltage 1~300V, line voltage 1~520V, resolution 0.1V
• Output frequency: 45-65Hz adjustable, fixed 50Hz and 60Hz
• Fast output key for 110/220V and 50/60Hz
• Phase difference: 120°±2°
• High accuracy LED display for voltage, current, frequency, active power, power factor
• Fast transient response, response time no more than 2ms for 100% load and unload
• Multiple protections: OVP, OCP, OTP and OLP
• Optional: RS-232/RS-485 interface for PC remote control on output frequency and voltage
• Optional: DC0-5V analog input for output control
• Customized specifications and functions acceptable

Specifications
