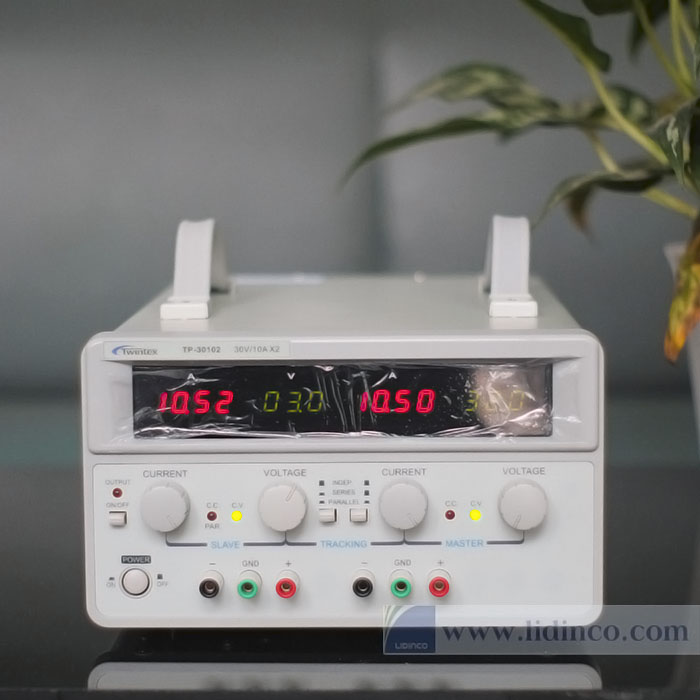

DC Power supply Twintex TP-30102, 02 output, 30V/10A

Name: DC Power supply Twintex TP-30102, 02 output, 30V/10A
Brand: Twintex - Taiwan
SKU: TP-30102
Price: 11.400.000VND VND
Availability: InStock
Rating: 0.00 (0 reviews)

SKU:

TP-30102

0 ratings

Brand:

Twintex - Taiwan

Warranty:

N/A

11.400.000đ

(Price does not include VAT)

Please contact to check stock

There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

Tel: +84 2839 778 269 / 3601 6797
Email: sales@lidinco.com
Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

Tel: +84 222 730 0180
Email: bn@lidinco.com
Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam

Technical Counseling 100% Free
Free Shipping For 3.000.000vnd Order

Specification

Data is being updated

Description product
Accessories

Description

The TP600W series are linear DC power supplies with 2 channels, 600W output. In constant voltage and current operations, the power supply provides high regulation and low ripple & noise. Auto series and parallel operations double output voltage and current. Automatic cooling fan control give sufficient cooling to the power supply and minimize fan noise. The output ON/OFF control and preset voltage & current function protect the power supply and related loads from unexpected damages. The TP600W series are widely used in applications of powering operational amplifier, push pull stages, logic circuit and definition systems

Features:

★ Two independent adjustable outputs 0~30V/0~10A ×2 (TP-30102), 0~60V/0~5A ×2 (TP-60052)

★ Constant voltage and constant current operations

★ Low ripple and noise, low temperature drift

★ Auto Series and Parallel tracking operations

★ Output ON/OFF control

★ Preset voltage and current

★ High efficiency, high power density

★ Over load and reverse polarity protections

★ Dual-color four digital panel meters

Specifications:

Constant voltage operation
Line regulation		≤0.01%+3mV
Load regulation		≤0.02%+5mV
Ripple & Noise		≤2mVrms
Constant current operation
Line regulation		≤0.2%+3mA
Load regulation		≤0.2%+5mA
Ripple & Noise		≤6mArms
Tracking operation
Parallel	Line regulation	≤0.01%+3mV
	Load regulation	≤0.02%+5mV
Series	Line regulation	≤0.01%+5mV
	Load regulation	≤300mV
	Tracking error	≤0.5%+10mV of the master, no load (with load, add load regulation≤300mV)
Display
Voltmeter		3 digits LED display
Ammeter		4 digits LED display
Resolution		100mV/10mA
Accuracy		±(1% reading+2digits)
Protection		Over load and reverse polarity protections
Power source		AC110V, AC220V or AC110V/220V±10%, 50/60Hz
Operating environment		0℃~40℃, ≤80%RH
Storage environment		-10℃~70℃, ≤70%RH
Accessories		Power cord x1, Operation manual x1
