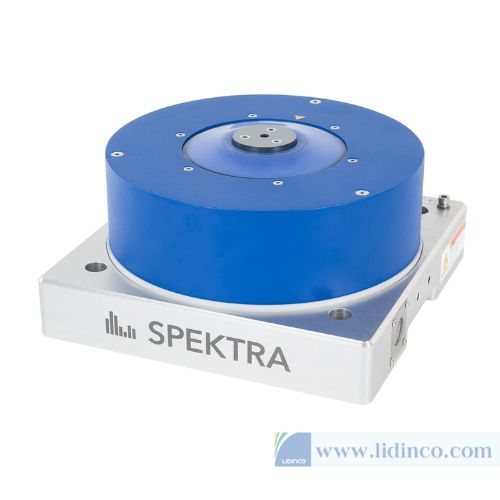

Vibration exciter Spektra SE-29
Hotline: +84 906 988 447
Head Office: Ho Chi Minh City
- Tel: +84 2839 778 269 / 3601 6797
- Email: sales@lidinco.com
- Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam
Office: Bac Ninh City
- Tel: +84 222 730 0180
- Email: bn@lidinco.com
- Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam
-
Technical Counseling
100% Free
-
Free Shipping
For 3.000.000vnd Order
Specification
Data is being updated
Selected data
- acceleration, max. (sine-peak): 450 m/s2
- force rating, max. (sine-peak): 95 N
- frequency range: 3 Hz...50 kHz (with optional internal reference standard)
- transverse motion typical < 5 %
- displacement, max. (peak-peak): 10 mm
- temperature range: -20 °C…+80 °C
- payload, max.: 2 kg vertical / 1 kg horizontal
Features

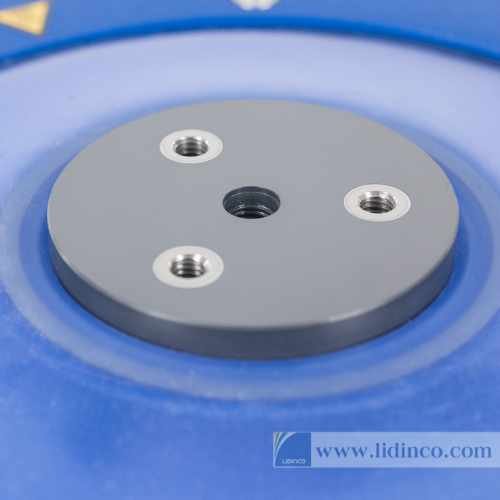

- polished, highly scratch-resistant ceramic armature
- first axial resonance > 52 kHz
- high payload capability for large sensors or geophones
- easy operation in climate chambers
- efficient electrodynamic drive
- internal reference accelerometer optional
- no compressed air supply or zero position controller required
- optional trunnion for vertical and horizontal mode
Applications
- calibration of vibration sensors according to ISO 16063-11 and to ISO 16063-21
- vibration tests of small-scale devices
- modal and structural testing
- device testing and sensor characterization
- education and training
Temperature option
- temperature monitoring, active cooling
- extended temperature range and therefore more possible applications
- operation in climate chamber
Accessories
