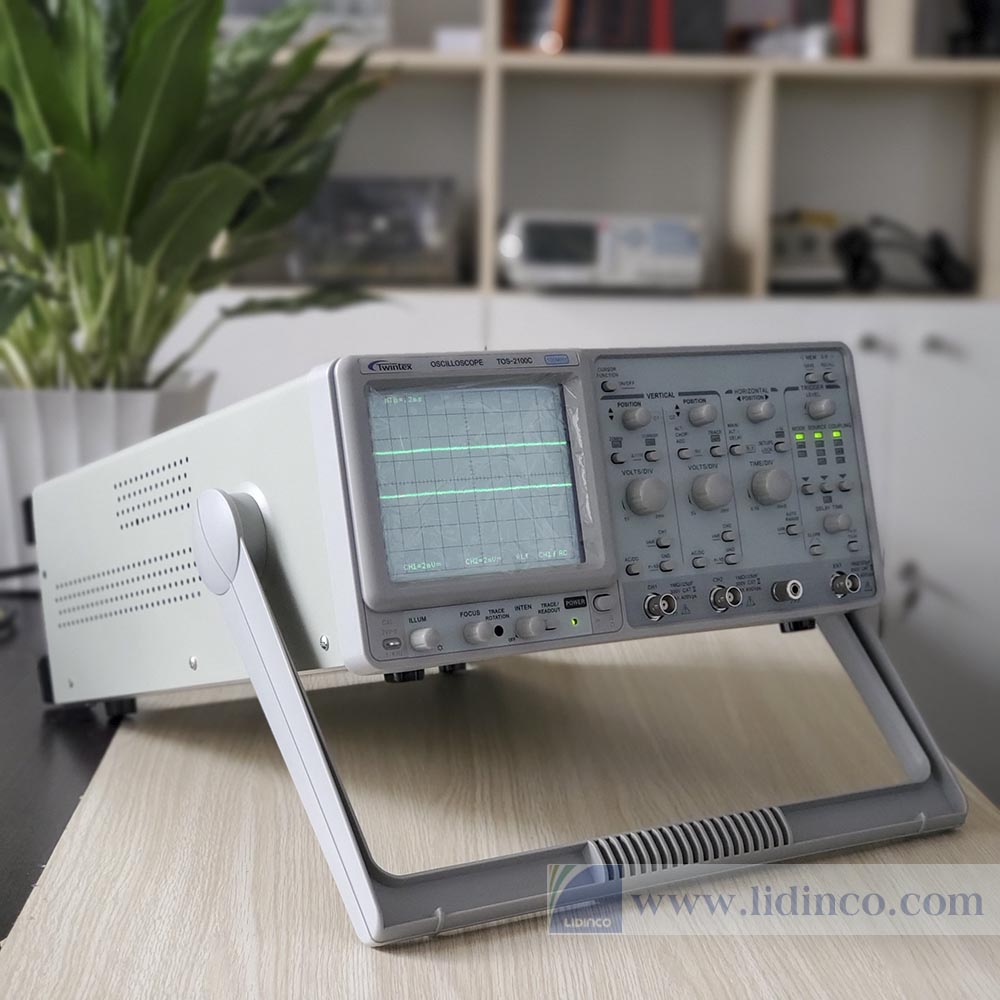

Analog Oscilloscope Twintex TOS-2100C 100MHz

Analog Oscilloscope Twintex TOS-2100C 100MHz

SKU:
TOS-2100C
Warranty:
N/A
Price: Contact
  • Bandwidth:
  • Waveform Length:
  • Channels:
  • Available: Please contact
  • There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

  • Tel: +84 2839 778 269 / 3601 6797
  • Email: sales@lidinco.com
  • Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

  • Tel: +84 222 730 0180
  • Email: bn@lidinco.com
  • Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam
  • Counseling Technical Counseling 100% Free
  • Shipping Free Shipping For 3.000.000vnd Order
Specification

Data is being updated

Description

TOS-2100C is dual trace 100MHz analog oscilloscope that uses cathode ray tube to display signal waveforms. Screen illumination of the 100MHz oscilloscope is continuously adjustable. The analog oscilloscope 100MHz has delayed sweep function and cursor readout function. The 100MHz analog oscilloscope provides panel lock function to avoid wrong operation.

Feature

- Dual channel 100MHz
- Time base auto-range
- Cursor readout with 7 measurements
- Panel lock function
- Buzzer alarm
- LED indicators
- TV synchronization; X-Y mode
- Z-axis modulation input; Trigger signal output
- Signal delay function, monitoring the leading edge
- Continuously adjustable screen illumination
- Delayed sweep
- 10 sets save & recall for panel settings

Specifications

Vertical system
Sensitivity  2mV~5V/DIV, 11 steps in 1-2-5 sequence
Sensitivity accuracy  ≤3% (5DIV at the screen center)
Vernier sensitivity  Continuously variable to 1/2.5 or less of the panel-indicated value
Bandwidth (-3dB)  DC (AC 10Hz)~100MHz (2mV/DIV: DC~20MHz)
AC coupling
Rise time  Approx. 3.5ns (2mV/DIV: Approx. 17.5ns)
Input impedance  Approx. 1MΩ±2%//Approx. 25pF
DC balance shift  5mV~5V/DIV: ±0.5DIV
Vertical mode  CH1, CH2, DUAL (ALT/CHOP), ADD, CH2 INV
Chopping repetition frequency  Approx. 250kHz
Bandwidth limit  20MHz
Input coupling  AC, GND, DC
Max. Input voltage  400V (DC+AC peak), AC frequency≤1kHz
Common mode rejection ratio  50:1 or better at 50kHz
Dynamic range  5DIV at 100MHz
Polarity (INV)  CH2
CH2 INV BAL  Balanced point variation≤1DIV (referred to graticule center)
Signal delay  Leading edge can be monitored
Horizontal system
Horizontal mode  MAIN (A), ALT, DELAY (B)
A (main) sweep time base  50ns~0.5s/DIV, continuously variable (UNCAL)
B (delay) sweep time base  50ns~50ms/DIV
Sweep time base accuracy  ±3%, X10 MAG: ±5%
Sweep magnification  X10 (Max. sweep time base: 5ns/DIV)
Hold off time  Variable
Delay time  1us~5s
Delay jitter  Better than 1:20000
Alternate separation  Variable
