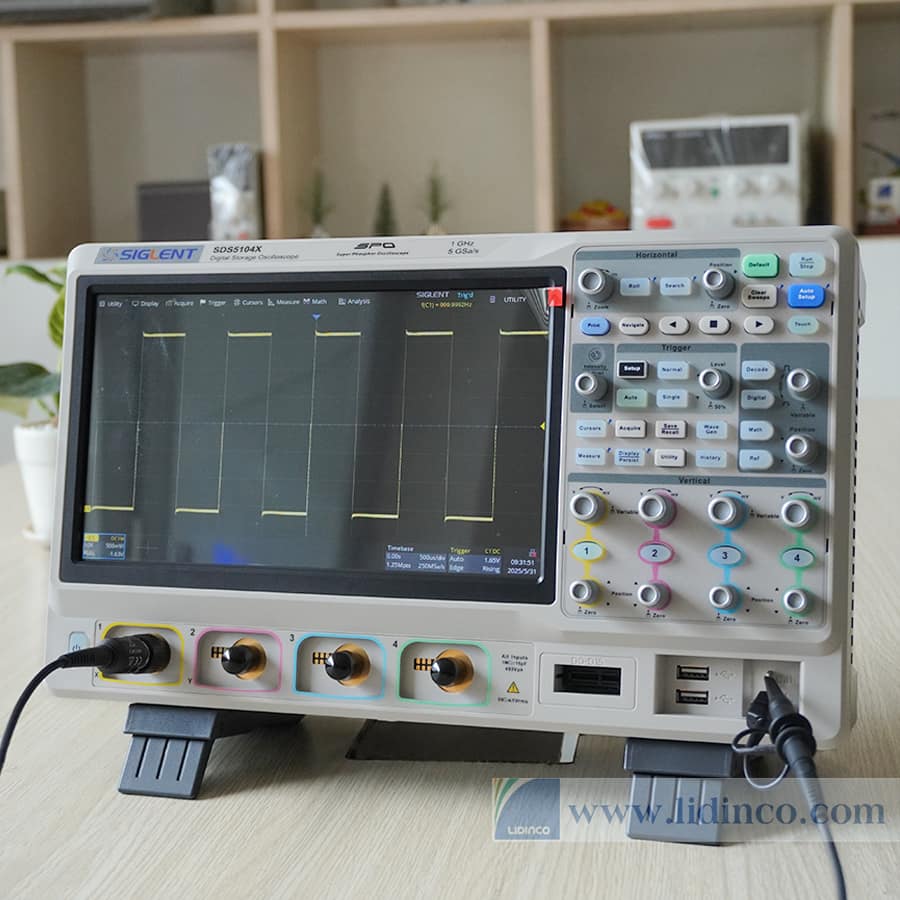

Siglent SDS5104X Digital Storage Oscilloscopes

Name: Siglent SDS5104X Digital Storage Oscilloscopes
Brand: Siglent
SKU: SDS5104X
Price: 0VND VND
Availability: InStock
Rating: 0.00 (0 reviews)

SKU:

SDS5104X

0 ratings

Brand:

Siglent

Warranty:

N/A

Price: Contact

Please contact to check stock

Request a quote

There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

Tel: +84 2839 778 269 / 3601 6797
Email: sales@lidinco.com
Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

Tel: +84 222 730 0180
Email: bn@lidinco.com
Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam

Technical Counseling 100% Free
Free Shipping For 3.000.000vnd Order

Specification

Bandwidth: 1 GHz

Rise time @50Ω: 0.4 ns

Number of channels: 4 CH + EXT

Maximum sampling rate: 5 GSa/s when using individual channels, 2.5 GSa/s when using all channels

Wave Record Length: 250 Mpts when using individual channels, 125 Mpts when using all channels

Wave update rate: 100,000 wfm/s (normal mode) / 480,000 wfm/s (sequence mode)

Trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Video, Zone

Serial Trigger and Decode: I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, MIL 1553B, I2S

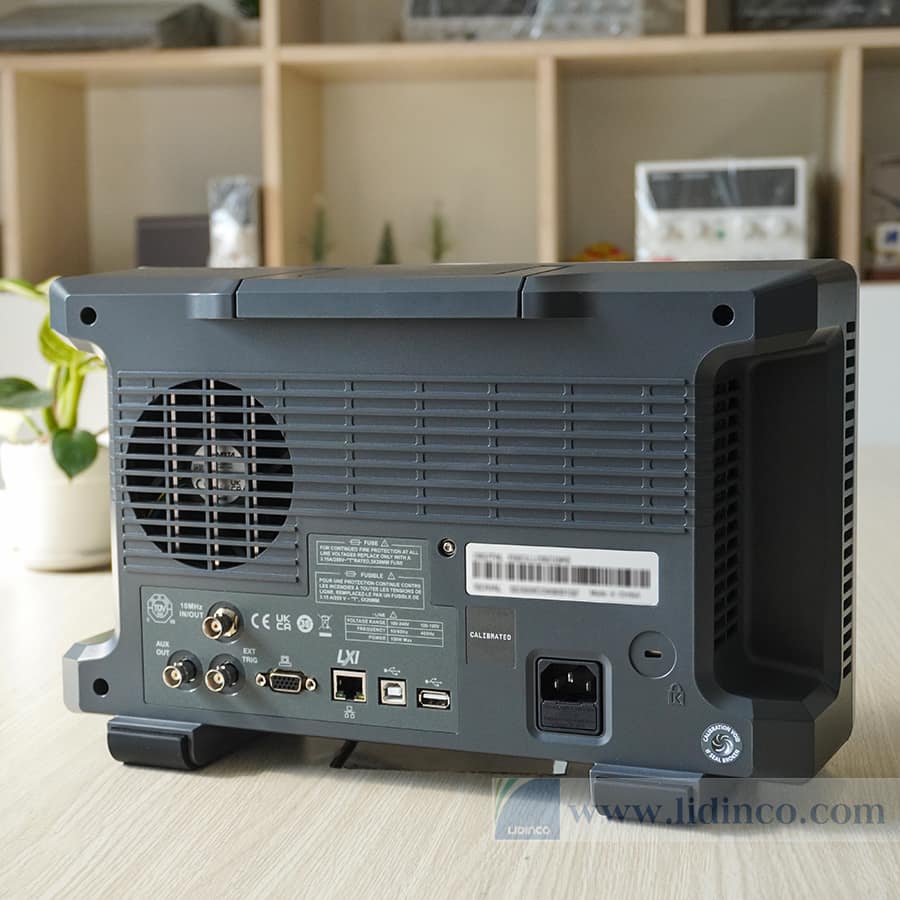

Input/Output: USB Host, USB Device, LAN, Pass/Fail, Trigger Out, 10MHz Out, VGA Output

Math function: 2 Mpts FFT, addition, subtraction, multiplication, division, integral, differential, square root) support Math-on-Math

Test leads (Standard): SP2035A:350 MHz or SP3050A: 500MHz /1 probe per channel

Display: 10.1" TFT-LCD multi-touch screen (1024*600)

Weight: Four-channel line: 2.6 kg; Transport 3.8 kg / Dual channel : 2.5 kg; Shipping: 3.5 kg

Description product
Accessories

Description

Siglent’s new SDS5000X series of digital storage oscilloscopes builds on the advancements learned with our SDS2000X scopes. These advancements include a faster architecture, touch-screen, mouse, and keyboard support, and a snappy user interface, all at a price that is about 1/2 that of similar products on the market. Popular and powerful features include both a 256-level intensity graded display as well as color-temperature display modes, 500 uV/div (BW is limited in this sensitivity position), Search & Navigate, and provisions for MSO (optional). The SDS5000X comes with Siglent’s most powerful Math capabilities to date.

Features:

* Bandwidth: 1 GHz
* Maximum Sample Rate: 5 MSa/s (Has one A-to-D converter each for CH1/CH2 & CH3/CH4)
* Sensitivity: 500 uV/div (Below 2.45 mV/div the BW is limited to 200 MHz)
* Waveform Capture Rates to 110,000 wfm/s (normal mode) and 480,000 wfms/s (Sequence mode)
* Record Length: Up to 250 MPts
* Serial Triggering & Decode: I2C, SPI, UART, CAN, LIN standard (Optional: FlexRay, I2S, MIL-STD 1553B, CAN FD)
* Segmented Memory mode
* Histograms, Math on Math
* FFT: 2 MPts
* Touch Screen, Mouse & Keyboard support
* USB and LAN interfaces. LAN supports remote web browser operation
