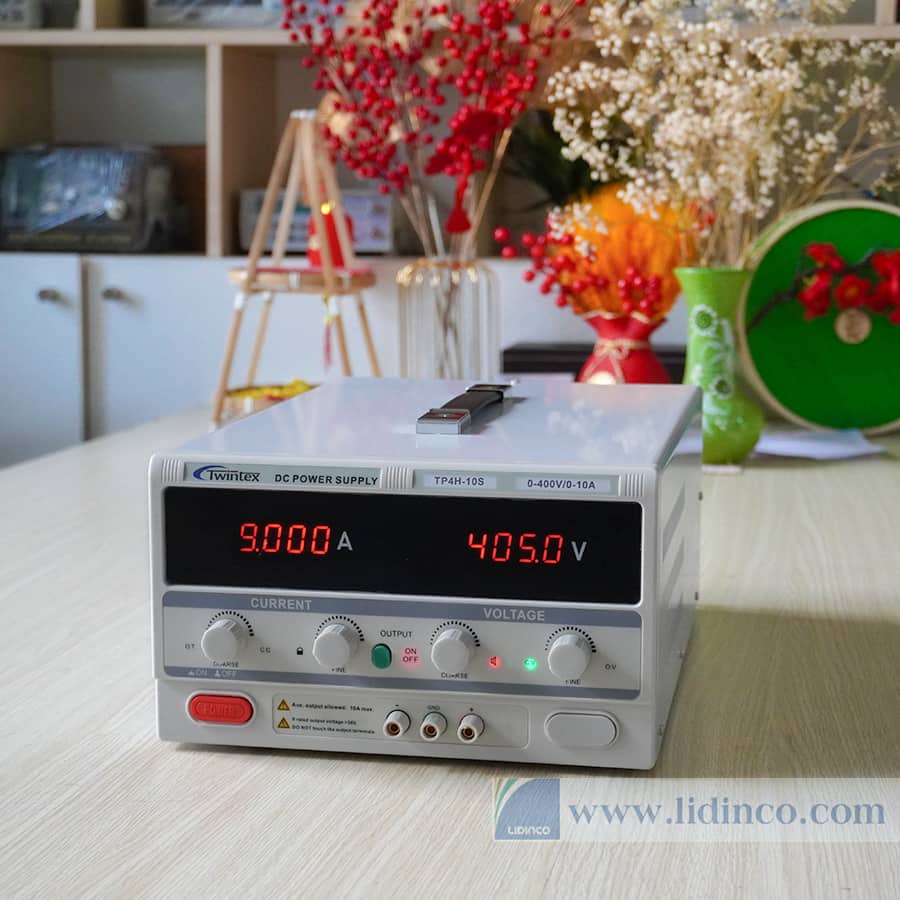

Switching DC power supplies TP4H-10S 400V 10A

Switching DC power supplies TP4H-10S 400V 10A

Model:
TP4H-10S
Origin:
China
Manufacturer:
Price: Contact
  • DC Supply Type:
  • Output Channel:
  • Output Current:
  • Output Voltage:
  • Available: Please contact
  • There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

  • Tel: +84 2839 778 269 / 3601 6797
  • Email: [email protected]
  • Add: 487 Cong Hoa Street, Tan Binh Ward, Ho Chi Minh City, Vietnam

Office: Bac Ninh City

  • Tel: +84 222 730 0180
  • Email: [email protected]
  • Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh, Vietnam
  • Counseling Technical Counseling 100% Free
  • Shipping Free Shipping For 3.000.000vnd Order
Specification

Data is being updated

Description

TP4H-10S are high power output DC power supply with voltage up to 400V and current up to 10A. Over Voltage Protection, Over Current Protection, Over Temperature Protection and Over Power Protection keep the TP-S series and their load safe from unexpected conditions. High Accuracy, high stability and low ripple & noise make the TP-S series an ideal solution for various industrial applications.

Features

★ Max.output power ranging from 4000W
★ Max.output voltage 400V, Max. output current 10A
★ Applying advanced PWM control technology
★ Compact design and light weight (3~10kg)
★ Constant voltage (CV) and constant current (CC) operations
★ Auto CV/CC switch
★ Coarse and Fine control for voltage and current
★ Over voltage, over current, over temperature and over power protections
★ Adjustable OVP & OCP range, OPP fixed 110% of Max. power
★ Intelligent temperature control cooling fan
★ Customized specifications and functions acceptable

Specification

Output capacity       150W~5kW
Working mode       PWM
Output
Output voltage       DC 0~100% full range adjustable
Output current       DC 0~100% full range adjustable
O.V.P. range       DC 1~100% rated output
O.C.P. range       DC fixed 105% max. output
Line regulation       CV≤0.2% +2 digits
CC≤0.5% +2 digits
Load regulation       ≤0.5% +2 digits
Ripple & Noise       ≤1% rms full scale
Display
Voltmeter       4 digits LED display
Ammeter       4 digits LED display
Voltage resolution       0.000-9.999V; 00.00-99.99V; 000.0-999.9V
Current resolution       0.000-9.999A; 00.00-99.99A; 000.0-999.9A
Accuracy       ±(1% FS+1 digit)
Optional functions
Display meter       4 1/2 digits LED display (Max. display 19999)

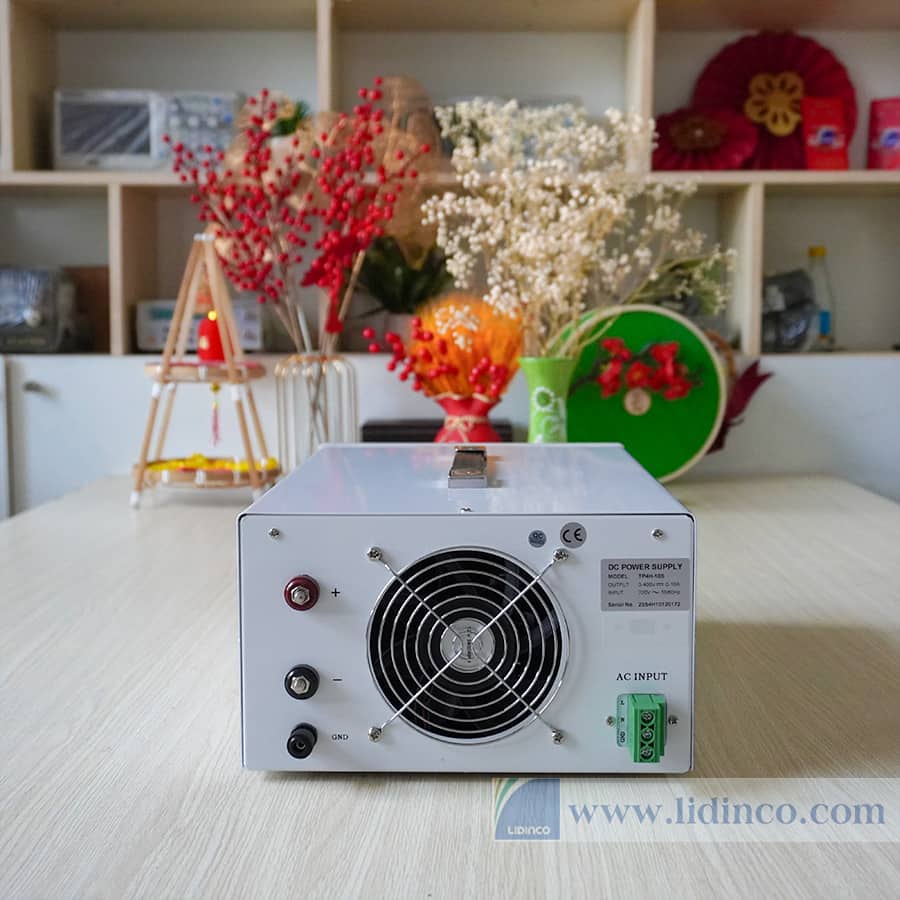

Output terminal       On front panel; or on rear panel; or on both front and rear panels
Output ON/OFF       Front panel switch
Terminal block or Wires on rear panel for remote control
General
Protection       Over voltage, over current, over temperature and over load protections
Operating environment       0℃~40℃, <80%RH
Storage environment       -10℃~70℃, <80%RH
Power source       AC110V/220V±10%, 50/60Hz
Input module       Power socket or terminal block
Dimension (WxHxD)       200x150x285mm (M chassis, 150W~1000W)
260x160x380mm (L chassis, 1000W~3000W)
260x160x440mm (XL chassis, 3000W~5000W)
