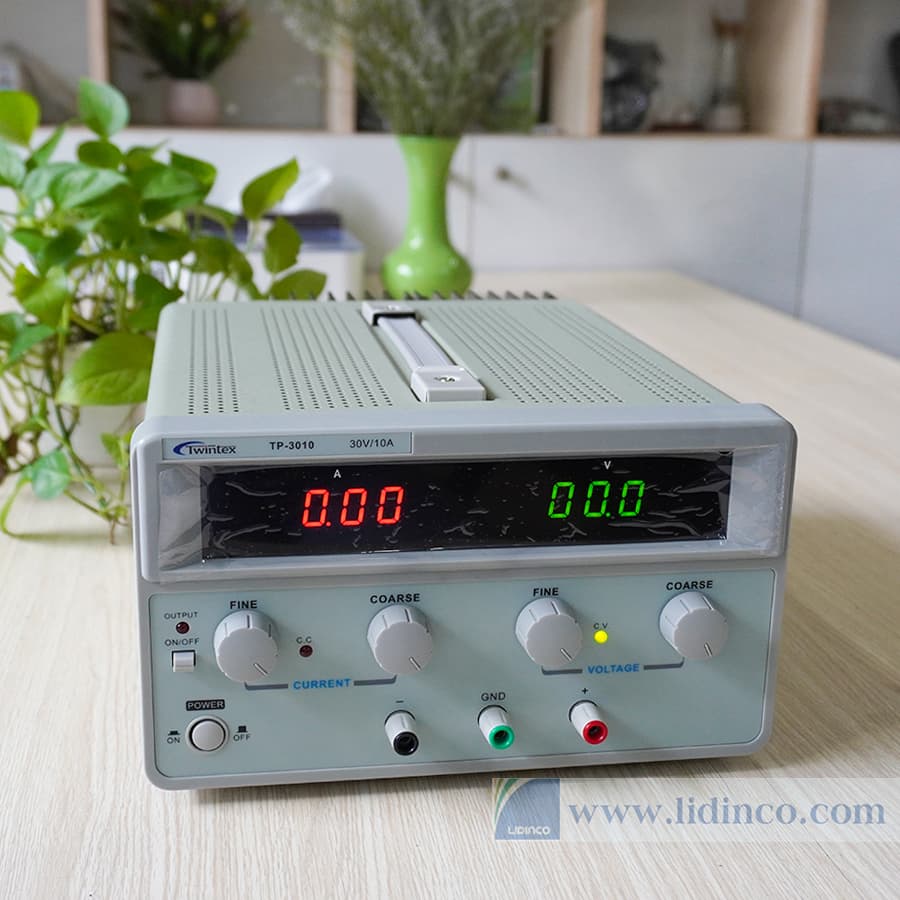

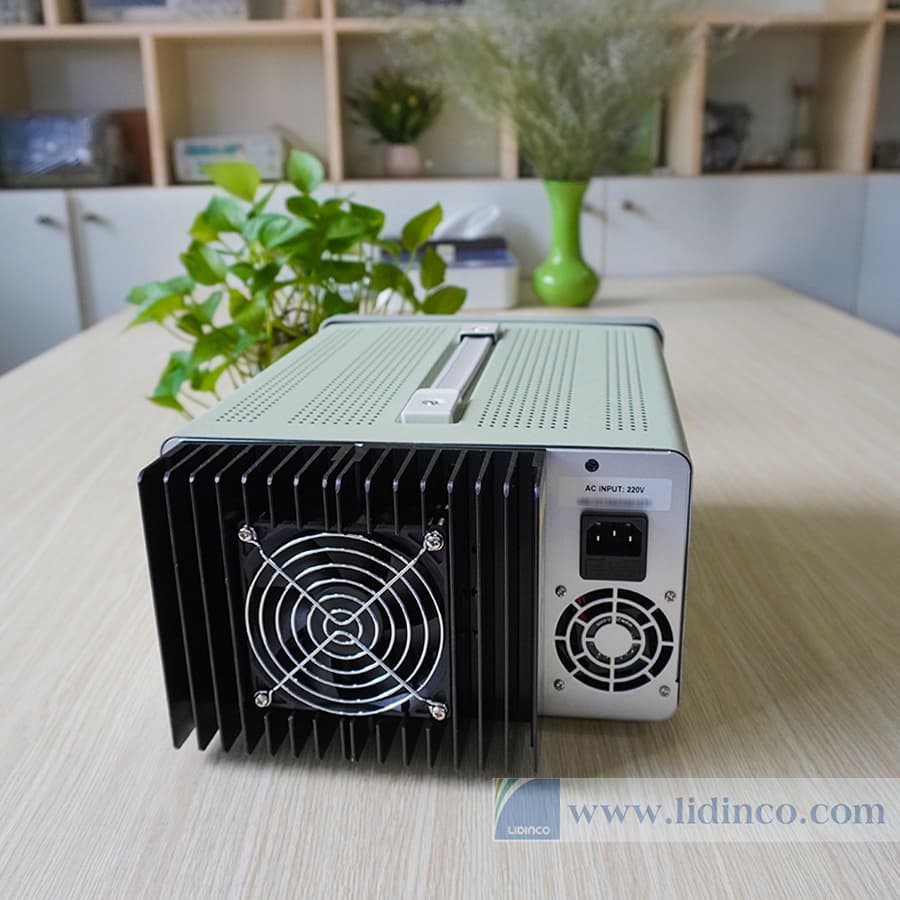

DC Power supply TP-3010, 30V/10A, 100mV/10mA
6.210.000đ
(Price does not include VAT)
-
Output Current:
-
Output Voltage:
-
DC Supply Type:
-
Output Channel:
- Available: 1
- There are currently no promotions for this product
Hotline: +84 906 988 447
Head Office: Ho Chi Minh City
- Tel: +84 2839 778 269 / 3601 6797
- Email: [email protected]
- Add: 487 Cong Hoa Street, Tan Binh Ward, Ho Chi Minh City, Vietnam
Office: Bac Ninh City
- Tel: +84 222 730 0180
- Email: [email protected]
- Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh, Vietnam
-
Technical Counseling
100% Free
-
Free Shipping
For 3.000.000vnd Order
Specification
Data is being updated
Description
The TP series single output linear DC power supply is available with 300W and 600W output low noise power supply. There are coarse and fine rotary knobs for variable voltage and current output. The bench type DC power supply linear mode uses toroidal transformer, giving low noise DC voltage and current source. DC adjustable power supply 30V 10A, 30V 20A, 60V 5A and 60V 10A are available.
Features
- Rated output 30V 10A or 60V 5A
- Constant voltage and constant current operations
- Auto CV and CC switch
- Output ON/OFF control
- High efficiency, light and compact design
- High power density
- Over load and reverse polarity protections
- Dual-color four digital panel meters
Specifications
| Constant voltage Operation | ||
| Output Voltage | 0~30V | |
| Load regulation | ≤0.01%+3mV | |
| Line regulation | ≤0.02%+5mV (I>3A), ≤0.01%+3mV (I≤3A) | |
| Ripple & Noise | ≤2mV rms | |
| Temperature co-efficient | ≤300ppm/℃ | |
| Recovery time | ≤100us (50% load change, minimum load 0.5A) | |
| Constant current operation | ||
| Output Current | 0~10A | |
| Load regulation | ≤0.2%+3mA | |
| Line regulation | ≤0.2%+3mA | |
| Temperature co-efficient | ≤500ppm/℃ | |
| Display | ||
| Meter | 3 digits LED display | |
| Resolution | 100mV/10mA | |
| Accuracy | Voltage | ±(0.5% reading+2digits) |
| Current | ±(0.1% reading+2digits) | |
| Protection | Over load and reverse polarity protections Additional over temperature protection for TP-3020/6010 | |
| Power source | AC110V/220V ±10% selectable, 50/60Hz | |
| Operating environment | 0℃~40℃, <80% | |
| Storage environment | -10℃~70℃, <80% | |
| Dimension (mm) | 260 × 160 × 370 | |
| Weight (kg) | 10 | |
| Accessories | Power cord ×1, Operation manual ×1, Test lead ×1 | |
Phụ kiện theo máy
- HDSD
- Dây nguồn
Phụ kiện mua rời
| Ảnh sản phẩm | Mã sản phẩm | Mô tả | Mã sản phẩm phù hợp |
| TL-103 | Dây dẫn, đầu cá sấu sang bắp chuối Dòng điện tối đa 3A, dài 100cm | TPM/TP1000EC/TP1000C/TP1000/TP20 00E/TP2000K/TP2000/TP2000TK/TP200 0N/TP2000PU/TP3303/TP3300U/TP3300 D/TP3300E |
| TL-104 | Dây dẫn, đầu cá sấu sang bắp chuối Dòng điện tối đa 10A, dài 100cm | TPM/TP1000EC/TP1000C/TP1000/TP20 00E/TP2000K/TP2000/TP2000TK/TP200 0N/TP2000PU/TP3303/TP3300U/TP3300 D/TP3300E |
| TL-105 | Dây dẫn, đầu Y sang cá sấu Dòng điện tối đa 3A, dài 100cm | TPM/TP1000EC/TP1000C/TP1000/TP20 00E/TP2000K/TP2000/TP2000TK/TP200 0N/TP2000PU/TP3303/TP3300U/TP3300 D/TP3300E |
| TL-106 | Dây dẫn, đầu Y sang cá sấu Dòng điện tối đa 10A, dài 100cm | TPM/TP1000EC/TP1000C/TP1000/TP20 00E/TP2000K/TP2000/TP2000TK/TP200 0N/TP2000PU/TP3303/TP3300U/TP3300 D/TP3300E |
| TL-107 | Dây dẫn, đầu cá sấu sang bắp chuối Dòng điện tối đa 3A, dài 100cm | TPM/TP1000EC/TP1000C/TP1000/TP20 00E/TP2000K/TP2000/TP2000TK/TP200 0N/TP2000PU/TP3303/TP3300U/TP3300 D/TP3300E |
| TL-108 | Dây dẫn, đầu cá sấu sang bắp chuối Dòng điện tối đa 10A, dài 100cm | TPM/TP1000EC/TP1000C/TP1000/TP20 00E/TP2000K/TP2000/TP2000TK/TP200 0N/TP2000PU/TP3303/TP3300U/TP3300 D/TP3300E |
| TL-109 | Dây dẫn, đầu cá sấu sang bắp chuối (chuẩn châu Âu) Dòng điện tối đa 3A, dài 100cm | TPM/TP1000EC/TP1000C/TP1000/TP20 00E/TP2000K/TP2000/TP2000TK/TP200 0N/TP2000PU/TP3303/TP3300U/TP3300 D/TP3300E |
| TL-110 | Dây dẫn, đầu cá sấu sang bắp chuối (chuẩn châu Âu) Dòng điện tối đa 10A, dài 100cm | TPM/TP1000EC/TP1000C/TP1000/TP20 00E/TP2000K/TP2000/TP2000TK/TP200 0N/TP2000PU/TP3303/TP3300U/TP3300 D/TP3300E |
| TL-111 | Dây nối đất, bắp chuối sang bắp chuối Dòng điện tối đa 10A, dài 100cm | TPM/TP1000EC/TP1000C/TP1000/TP20 00E/TP2000K/TP2000/TP2000TK/TP200 0N/TP2000PU/TP3303/TP3300U/TP3300 D/TP3300E |
| TL-112 | Dây dẫn, bắp chuối sang bắp chuối (chuẩn chậu Âu) Dòng điện tối đa 10A, dài 100cm | TPM/TP1000EC/TP1000C/TP1000/TP20 00E/TP2000K/TP2000/TP2000TK/TP200 0N/TP2000PU/TP3303/TP3300U/TP3300 D/TP3300E |
