Earth Resistance Tester Kyoritsu KEW 4105A

Earth Resistance Tester Kyoritsu KEW 4105A

SKU:
KEW 4105A
Brand:
Warranty:
N/A
4.500.000đ

(Price does not include VAT)

  • Resistance Range:
  • Test Voltage:
  • Accuracy:
  • There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

  • Tel: +84 2839 778 269 / 3601 6797
  • Email: sales@lidinco.com
  • Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

  • Tel: +84 222 730 0180
  • Email: bn@lidinco.com
  • Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam
  • Counseling Technical Counseling 100% Free
  • Shipping Free Shipping For 3.000.000vnd Order
Specification

Data is being updated

Description

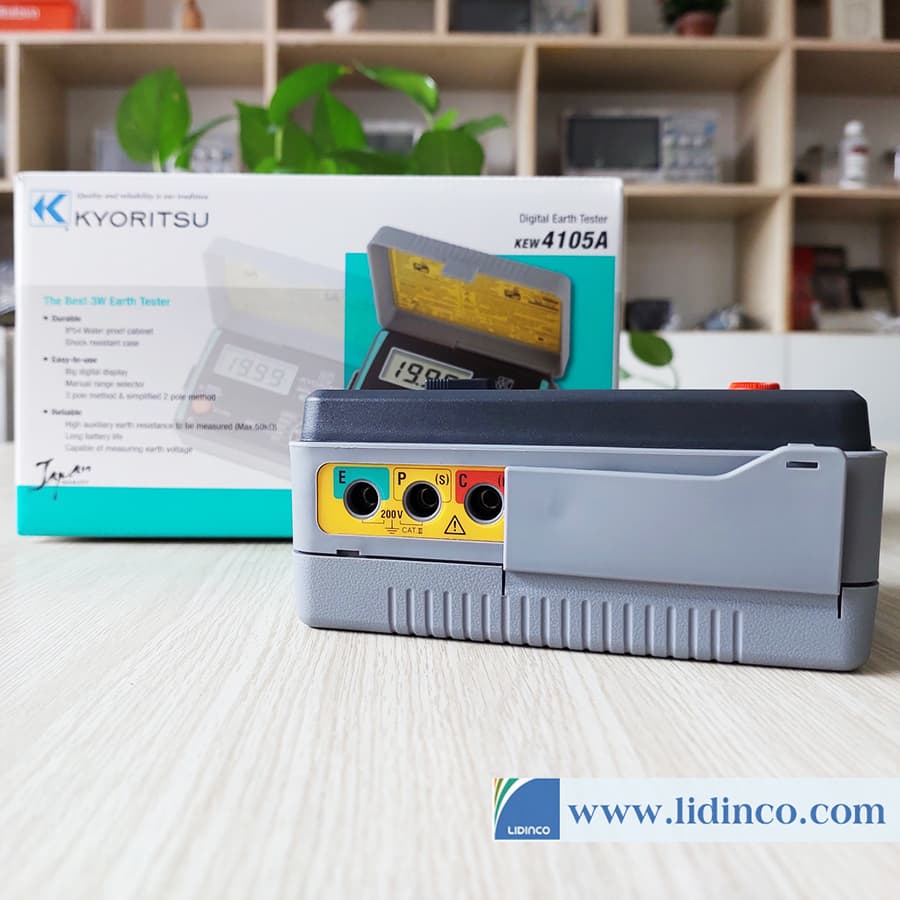

Earth Resistance Tester Kyoritsu KEW 4105A

KEW 4105A

• In addition to the facility for precision measurement, test leads for simplified two wire measuring system also supplied as standard accessories.
(unit can be hung from the neck for simplified measurement)
• The latest circuit design permits the instrument to operate with the minimum of influence from earth voltage and earth resistance of auxiliary earth spikes.
• Dust and drip proof. (designed to IEC 60529 IP54)
• Earth resistance value can be read directly from the scale.
• Designed to meet IEC 61010-1 safety standard.
• Capable of measuring earth voltage.
• Small and lightweight. Shock resistant new case material.
• 2mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test.

Specification:

Earth resistance
measurement
20Ω200Ω 2000Ω



Measuring range 0.00 - 1999Ω
Display range 0.00 - 19.99Ω 0.0 - 199.9Ω 0 - 1999Ω
Accuracy   ±2%rdg±0.1 Ω ±2%rdg±3dgt
Earth voltage measurement



Measuring range 0 - 200 V AC (50,60Hz)
Display range 0.0 - 199.9 V
Accuracy ±1%rdg±4dgt
Overload protection Earth resistance : 280V AC (10 seconds)
Earth voltage : 300V AC (1 minute)
Applicable Standards IEC 61010-1 CAT Ⅲ300 V Pollution degree 2
IEC 61010-2-030, IEC 61557-1, -5, IEC 60529 (IP54)
Power source R6(AA)(1.5V) × 6
Dimensions 105(L) × 158(W) × 70(D) mm (including case lid)
Weight Approx. 550g (including batteries and case lid)
Accessories 7095A (Earth resistance test leads [red-20m, yellow-10m, green-5m/1set])
7127B (Simplified measurement probe),
8032 (Auxiliary earth spikes[2 spikes/1set]),
9121 (shoulder strap),
9084 (Soft case)
R6(AA) × 6, Instruction manual
Optional 7245A (Precision measurement cord set)
8259 (Adapter for measurement terminal)
9165 (Hard case)
