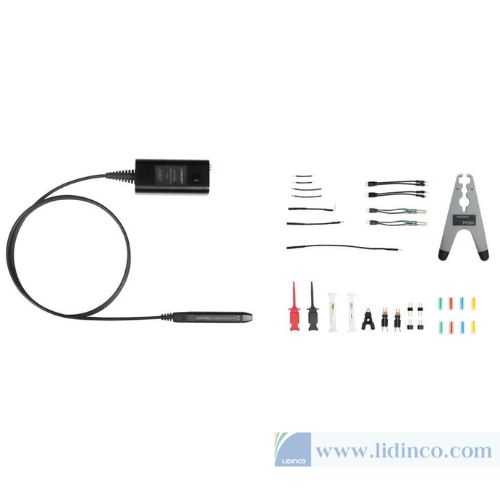

High Voltage Differential Probes Siglent SAP1000H

High Voltage Differential Probes Siglent SAP1000H

SKU:
SAP1000H
Brand:
Warranty:
N/A
Price: Contact
  • Available: Please contact
  • There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

  • Tel: +84 2839 778 269 / 3601 6797
  • Email: sales@lidinco.com
  • Add: 487 Cong Hoa Street, Tan Binh Ward, Ho Chi Minh City, Vietnam

Office: Bac Ninh City

  • Tel: +84 222 730 0180
  • Email: bn@lidinco.com
  • Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh, Vietnam
  • Counseling Technical Counseling 100% Free
  • Shipping Free Shipping For 3.000.000vnd Order
Specification

Bandwidth: 1 GHz

Differential Input capacitance: 1 pF

Differential Input resistance : 200 kΩ

Single-ended Input resistance: 100 kΩ

Offset range
10X: ±8.4 V
50X: ±42 V

Attenuation ratio (DC): 10X/50X

Offset accuracy:  <3%

DC gain accuracy: <3%

Input dynamic range:
10X: ±8.4 V
50X: ±42 V

CMRR
100 kHz: >50dB
5 MHz: >50dB
250 MHz: >20dB

Interface: SAPBus

Product Overview SAP1000H

The SAP1000H high voltage differential probe offers a high bandwidth of 1 GHz and a wide dynamic range of ±42V, allowing effortless measurement of both tiny and large signals. Its ultra-low differential input capacitance of just 1 pF minimizes loading effects on the DUT, while a rise time of less than 350 ps enables precise capture of every subtle change in signal rise edges. Additionally, the SAP1000H allows fast attenuation ratio switching within a compact form factor, making it highly efficient for both switching power supply measurements and high-speed digital circuit debugging.
