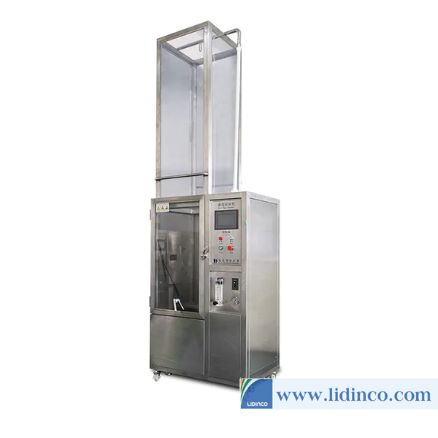

Waterproof climate chamber IPX5, IPX6 Haida

Waterproof climate chamber IPX5, IPX6 Haida

SKU:
HAIDA
Brand:
Warranty:
N/A
Price: Contact
  • Please contact to check stock
  • There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

  • Tel: +84 2839 778 269 / 3601 6797
  • Email: sales@lidinco.com
  • Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

  • Tel: +84 222 730 0180
  • Email: bn@lidinco.com
  • Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam
  • Counseling Technical Counseling 100% Free
  • Shipping Free Shipping For 3.000.000vnd Order
Specification

Internal chamber size(W*D*H): 1000*1000*1000mm(can be customized)

External chamber size(W*D*H): 1400*1200*3500mm

IPX5

  • Internal diameter of the nozzle: 6.3mm
  • Delivery rate: 12.5l/min±5%
  • Core of the substantial stream: Circle of approximately 40mm diameter at 2.5m distance from nozzle

IPX6

  • Internal diameter of the nozzle: 12.5mm
  • Delivery rate: 100l/min±5%
  • Core of the substantial stream: Circle of approximately 120mm diameter at 2.5m distance from nozzle

Chamber material

Internal: SUS304 stainless steel, external: stainless steel

Test duration per square meter of enclosure surface area likely to be sprayed: 1 min

Minimum test duration: 3 min

Controller: PLC touch screen

Distance from nozzle to enclosure surface: Between 2.5m and 3m

Sample rotatory table: Diameter 500mm, rotation speed adjustable

Power: AC380V, 50Hz, three phase

Description

IPX67 waterproof climate chamber is mainly suitable for outdoor lighting, outdoor lamps and lanterns, household appliances, communication products, the signal device and the automobile lamps and lanterns and other products to do test protection grade (IP waterproof level test).

Standard

EN60598、IEC60529-2001、GB4208-2008(IPX5、IPX6)

Applications& Features

  • To be used in testing external lighting and signal device and vehicle lamps shell protection.
  • Cyclic test includes conditions: heating, watering
  • The internal chamber has lighting device
  • Rain time, rain interval time and rainfall strength can be adjusted and controlled separately.

Accessories
