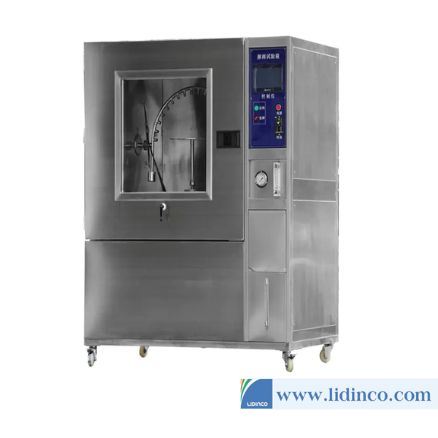

Rain spray test room IPX34 Haida HD-E710

Rain spray test room IPX34 Haida HD-E710

SKU:
HD-E710
Brand:
Warranty:
N/A
Price: Contact
  • Please contact to check stock
  • There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

  • Tel: +84 2839 778 269 / 3601 6797
  • Email: sales@lidinco.com
  • Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

  • Tel: +84 222 730 0180
  • Email: bn@lidinco.com
  • Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam
  • Counseling Technical Counseling 100% Free
  • Shipping Free Shipping For 3.000.000vnd Order
Specification

Spray ring radius: 375 and 500mm

Water pipe diameter: φ16mm

Spray orifice diameter:φ0.4mm

Aperture spacing:500mm

Swing pipe : ±45°、±60°、±90°、±180°(theory number)

Test stands rotate speed : 1r/min(can be no quarter speed adjustment)

Controller: Import FM type inverter

Times controller: Import programmable computer integrated time controller (Jin Zhong Mo le)

Water pressure control:  flow gauge

Observation plane: Large area of toughened glass door visualization

Water supply system, booster pump, water storage

Safety protection leakage, Short circuit, Motor overheating

Power supply:110V, 60HZ

Description IPX34 Haida HD-E710

IPX34 Rain spray test room is suitable for testing the adaptability and reliability of electrical and electronic products, materials, spare parts, etc, in the condition of rain and temperature. Can also be used to external lighting and signal device and vehicle lamps shell protection.

Features HD-E710

  • Studio equipped with lighting equipment
  • Rain time, interval time, rainfall intensity, regulate and control apart.
  • The outside layer is composed of the high quality stainless steel plate, the inner container is the composed of stainless steel tabula rasa.
  • Large area of visible glass door, easy to observe the test specimens in the testing chamber
  • The button is made of high quality of tank, can be fixed PU activities wheel, it is convenient for user moved.
  • With 270 degree swing pipe & 360 degrees whorl pole water jet device.
  • Adjustable speed samples stage.

Control system:

(Germany) admiralty. Per stig moller programmable controller to complete the contrl of the whole system of time and sequence.Adopt imported frequency converter speed effectively guarantee the test according to the standard operation.

Equipped with water filter.

IPX34 Rain spray test room meet standard: GB10485-89
