Specification
Data is being updated
Description
Application
- • VM-BODY: Measurement of whole-body vibrations in vehicles, railways, construction machines, buildings etc. to EN ISO 263
• VM-SHIP: Measurement of whole-body vibrations on board ships to ISO 20283-5 (formerly ISO 6954)
• Evaluation of comfort and potential health risk
Properties
- • Contains weighting filters Wb, Wc, Wd, Wj, Wk and Wm to ISO 8041 (VM-SHIP only weighting filter Wm)
• Measurement of 3 axes simultaneously
• Display of interval RMS for three axes, VM-BODY also maximum RMS (MTVV) and crest factor
• Calculation of total vibration value Ahv
• Protocol and export function
• High reliability by text based and graphical user guidance
• PC based measuring system using the IEPE / USB interface M302 and IEPE compatible accelerometers
• The instrument has a clone function, i.e. several program windows can be operated simultaneously with different settings
• Offline measurement with stored data
• Evaluation based on limit values according to standards
• Free update service from our website www.MMF.de

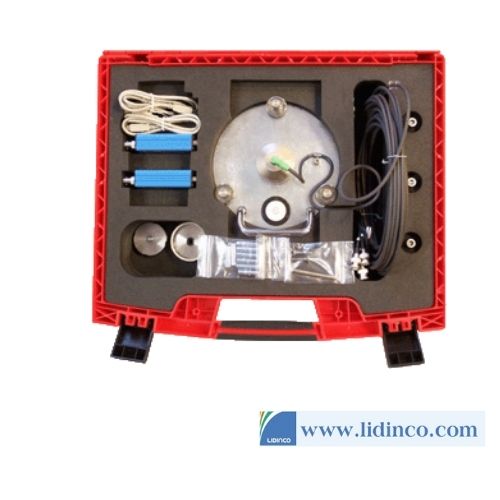

• Available as kit: VM-BODY Kit / VM-SHIP Kit
| Measuring inputs | 4 Low Power IEPE inputs with TEDS for sensors with 8 to 1200 mV/g |
| Human vibration weighting filters | Wb, Wc, Wd, Wh, Wj, Wk, Wm and Wp to ISO8041 |
| Band filters | Human vibration: 0.4 – 100 Hz; 6.3 – 1259 Hz Acceleration: 0.1 – 1500 Hz; 1 – 1000 Hz Velocity: 1 – 100 Hz; 2 – 1000 Hz; 10 – 1000 Hz Displacement: 5 – 250 Hz |
| Frequency analysis (FFT) | 125 lines for X/Y/Z, peak spectrum of acceleration |
| Data memory | 10000 manually saved measurements, 100 log files of 32000 measurements each, 1000 FFTs, each with date, time and comment |
| Display | OLED, 128 x 160 pixels, colored |
| Batteries | 3 accumulators HR03 or alkaline cells LR03 (AAA), 10 -14 hours operation |
| Recommended sensors | Hand-Arm: KS903B10 Whole-body: KS963B100-S Machine vibration: KS903-100 Ship vibration: KS823B 4th channel (A): KS78C100 |
| VM31 accessory kits | Whole-body: VM31-HAWB |
| Data sheet (250 kB) Instruction manual (3,5 MB) Abstract EU directive 2002/44/EC (150 kB) Measurement of ship vibration to ISO 20283-5 with the VM31 (700 kB) Training video English / Chinese (MP4, 18 min, 350 MB) The latest version of the USB driver, firmware updates and the Excel macro file for data import can be found on our download page. |
