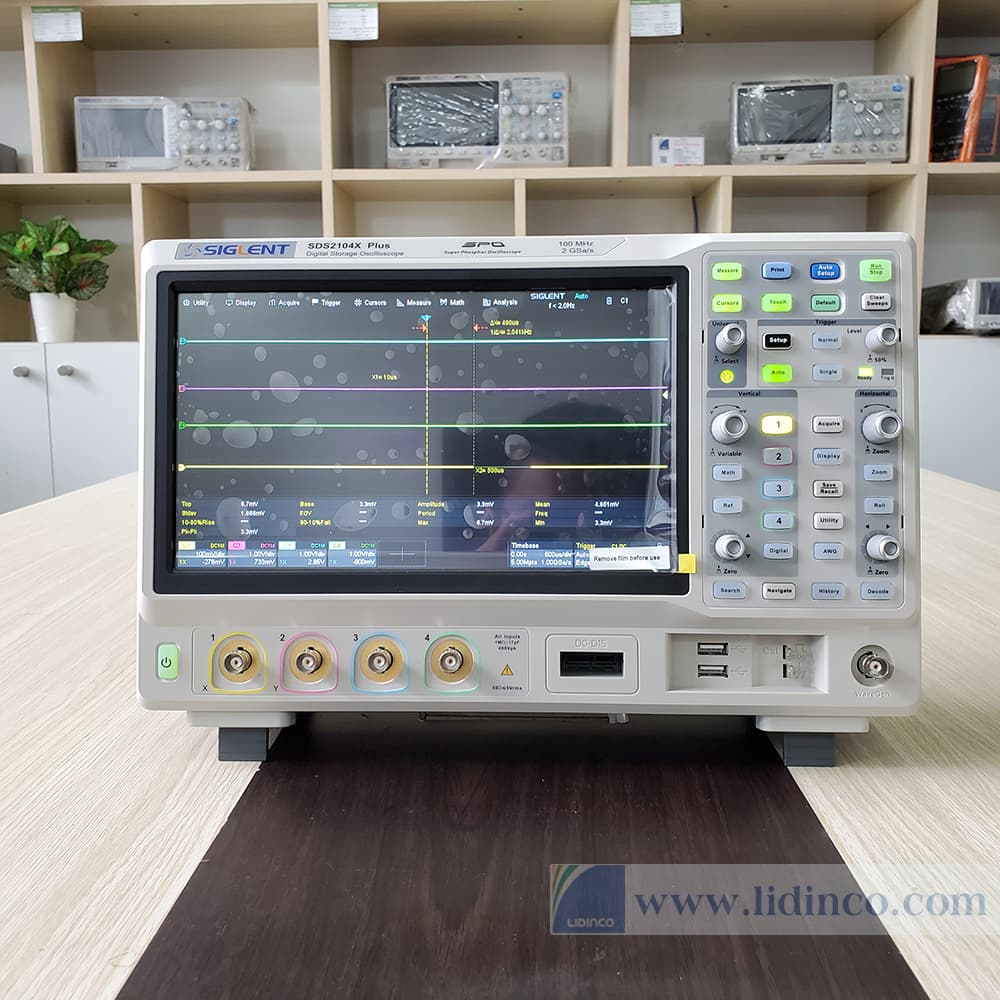

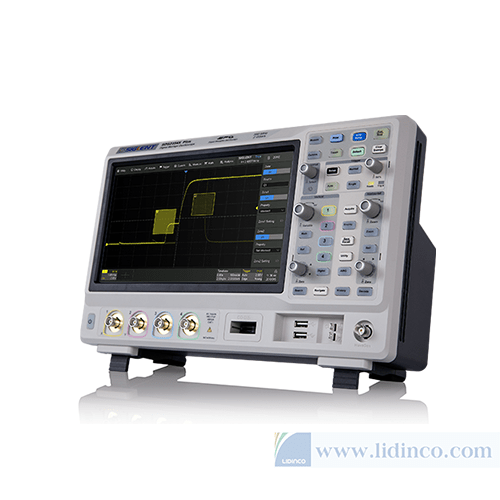

SDS2104X Plus Super Phosphor Oscilloscopes

SDS2104X Plus Super Phosphor Oscilloscopes

Model:
SDS2104X Plus
Origin:
China
Manufacturer:
37.530.000đ

(Price does not include VAT)

  • Bandwidth:
  • Sampling Rate:
  • Waveform Length:
  • Channels:
  • Available: Please contact
  • There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

  • Tel: +84 2839 778 269 / 3601 6797
  • Email: [email protected]
  • Add: 487 Cong Hoa Street, Tan Binh Ward, Ho Chi Minh City, Vietnam

Office: Bac Ninh City

  • Tel: +84 222 730 0180
  • Email: [email protected]
  • Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh, Vietnam
  • Counseling Technical Counseling 100% Free
  • Shipping Free Shipping For 3.000.000vnd Order
Specification

Bandwidth: 100 Mhz

Rise time @50Ω: 3.5 ns

Number of channels: 4 CH + EXT

Digital Channel (Option): 16 channels, with 500 MSa/s sampling rate, 50 Mpts/channel wave length

Maximum sampling rate: 2 GS/s

Memory depth (Max.): 200 Mpts/channel

Waveform capture rate (Max.): 500,000 wfm/s

Trigger type: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Video and Serial

Serial Trigger and Decode:
– Standard: I2C, SPI, UART, CAN, LIN
– Option: CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester (decode only)

Input/Output: USB Host, USB Device, LAN, Pass/Fail, Trigger Out, 10MHz Out, VGA Output

Data processing and analysis: Search, navigation, history, mask test, Bode plot, energy analysis (optional) and counting

Waveform generator (optional): Single channel, frequency up to 50 MHz, 125 MSa/s sample rate, 16 kpts waveform memory

Display: 10.1” TFT-LCD with capacitive touch screen (1024x600)

Weight: 3,9kg

Description

SIGLENT’s SDS2000X Plus series Digital Storage Oscilloscopes are available in bandwidths of 350 MHz, 200 MHz and 100 MHz, have a maximum sample rate of 2 GSa/s, maximum record length of 200 Mpts/ch, and up to 4 analog channels + 16 digital channels mixed-signal analysis ability.

The SDS2000X Plus series employs SIGLENT’s SPO technology with a maximum waveform capture rate of up to 120,000 wfm/s (normal mode, up to 500,000 wfm/s in Sequence mode), 256-level intensity grading display function plus a color temperature display mode. An impressive array of measurement and math capabilities and options for a 50 MHz waveform generator.

The large 10.1’’ capacitive touch screen supports multi-touch gestures, while the remote web control, mouse and external keyboard support greatly improve the operating efficiency of the SDS2000X Plus.

Key Features

  •  350 MHz, 200 MHz, 100 MHz models with real-time sample rate up to 2 GSa/s. A 500 MHz bandwidth upgrade option is available for 350 MHz models.
  •  SPO technology
    •  Waveform capture rates up to 120,000 wfm/s (normal mode) and 500,000 wfm/s (sequence mode)
    • Supports 256-level intensity grading and color temperature display modes
    • Record length up to 200 Mpts/ch, 400 Mpts in total for all 4 channels
    • Digital trigger system
  • Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern and Video (HDTV supported). Trigger zone helps to simplify advanced triggering
  • Serial bus triggering and decoder, supports I2C, SPI, UART, CAN, LIN (Standard) and CAN FD, FlexRay, I2S, and MIL-STD-1553B (optional) protocols
  • Low background noise, features 0.5 mV/div to 10 V/div voltage scales
  • 10-bit mode provides higher resolution and lower noise
  • Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 90,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event
  • History waveform record (History) function for up to 90,000 triggered waveforms (frames)
  • Automatic measurement function on 50+ parameters, supports statistics with histogram and trend
  • Two Math traces, support 2 Mpts FFT, +, -, x, ÷, d/dt, ∫dt, √, average, ERES, and formula editor
  • Abundant data processing and analysis functions such as Search, Navigate, Mask Test, Bode plot, Power Analysis (optional) and Counter
  • 16 digital channels (optional)
  • Built-in 50 MHz waveform generator (optional)
  • Large 10.1” TFT-LCD display with 1024×600 resolution; Capacitive touch screen supports multi-touch gestures
  • Multiple interfaces: USB Host, USB Device (USBTMC), LAN(VXI-11/Telnet/Socket), Pass/Fail, Trigger Out
  • Built-in web server supports remote control by the LAN port using a web browser; Supports SCPI remote control commands

Accessories

- USB Cable

- Passive Probe

- Power Cord

- Quick Start Guide
