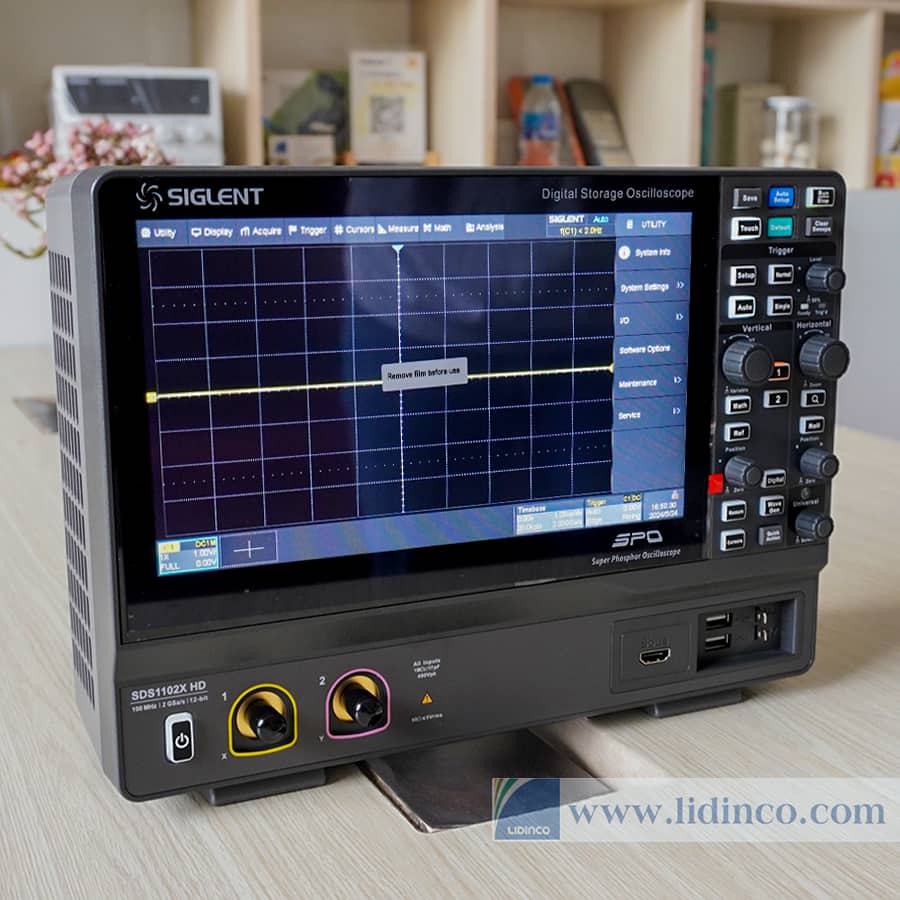

Digital Storage Oscilloscope Siglent SDS1102X HD

Product Overview

SIGLENT’s SDS1000X HD series high resolution digital storage oscilloscopes are based on 2 GSa/s, 12-bit Analog-Digital Converters and front ends with excellent noise floor performance. They are available in bandwidths of 200 MHz and 100 MHz, have maximum record length of 100 Mpts, and display 2/4 analog channels + 16 digital channels mixed signal analysis ability.

The SDS1000X HD series employs Siglent’s SPO technology with a maximum waveform capture rate of up to 120,000 wfm/ s (normal mode, up to 500,000 wfm/s in Sequence mode), 256-level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, Power Analysis and allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, options for a 25 MHz arbitrary waveform generator, as well as serial decoding are also features of the SDS1000X HD.

The large 10.1’’ display capacitive touch screen supports multi-touch gestures, with the addition of user-friendly UI design, can greatly improve the operation efficiency. It also supports mouse control, and remote web control over LAN.

Key Features

• 12-bit High Resolution
  • 12-bit Analog-Digital Convertors with sample rate up to 2 GSa/s
  • Front ends with 70 μVrms noise floor @ 200 MHz bandwidth
• 2/4 analog channels, up to 200 MHz bandwidth
• SPO technology
  • Waveform capture rate up to 120,000 wfm/s (normal mode), and 500,000 wfm/s (sequence mode)
  • Supports 256-level intensity grading and color temperature display modes
  • Up to 100 Mpts record length
  • Digital trigger system
• Intelligent trigger: Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video (HDTV supported) , Qualified, Nth edge, Delay, Setup/Hold time.
• Serial bus triggering and decoder, supports protocols I²C, SPI, UART, CAN, LIN, CAN FD(decode only), FlexRay(decode only)
• Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event
• History waveform record (History) function, the maximum recorded waveform length is 80,000 frames
• Automatic measurements on 50+ parameters, supports statistics with  histogram, track, trend, Gating measurement, and measurements on Math, History and Ref
• 4 Math traces (2 Mpts FFT, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor
• Abundant data analysis functions such as Search, Navigate, Counter, Bode plot and Power Analysis
• High Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks
• 16 digital channels (optional)
• 25 MHz waveform generator(optional)
• Large 10.1” TFT-LCD display with 1024 * 600 resolution; Capacitive touch screen supports multi-touch gestures

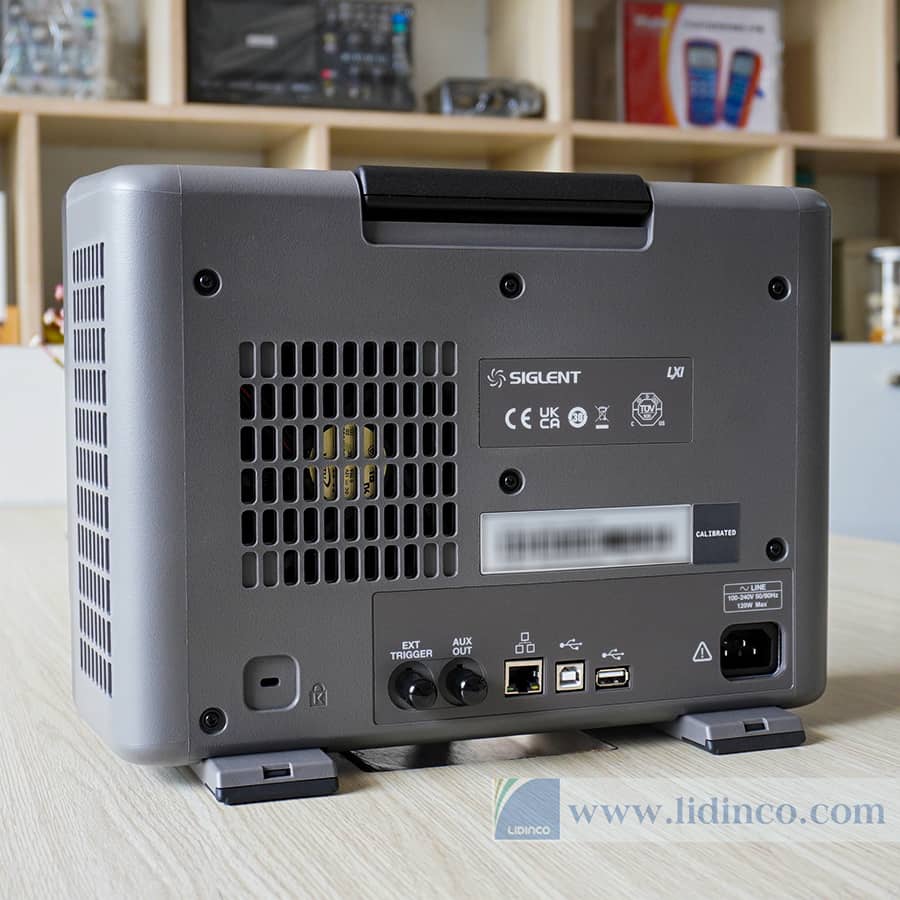

• Interfaces include: USB Hosts, USB Device (USBTMC), LAN (VXI-11/Telnet/Socket), Pass/Fail, Trigger Out
• Built-in web server supports remote control over the LAN port using a web browser. Supports SCPI remote control commands. Supports external mouse and keyboard.
